Intake system 3.6ltr. 6-cylinder+, BWS, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03H133201N	Intake manifold	999	Next
3	03H133237G	Seal	999	Next
4	03H133237J	Seal	999	Next
5	03H133237D	Seal	999	Next
6	N91097201	Round hd. screw M6X35	999	Next
7	03H133237E	Seal	999	Next
8	03H133237F	Seal	999	Next
9	03H103202D	Vent hose	999	Next
10	N10473401	Hexagon socket head panel bolt 6X20	999	Next
11	03H133062	Throttle valve adapter	999	Next
11A	03H133105	Heat insulation	999	Next
12	N10551403	Hexagon socket flat head bolt 6X55	999	Next
13	03H133229B	Support	999	Next
14	N10664901	Socket head collared bolt with inner multipoint head M8X16	999	Next
15	N10704501	Oval hexagon socket head bolt M6X35	999	Next
16	3D0971838N	Cable ties 4,5X200	999	Next
17	4A0820199	Double cable tie 7X213/140MM	999	Next
18	3C0133366AA	Connecting hose	999	Next
18	3C0133366S	Connecting hose	999	Next
19	06D133517B	Valve	999	Next
20	051133459A	Thrust ring	999	Next
21	N90768301	Spring band clamp 14X12	999	Next
24	3C0133778D	Vacuum hose	999	Next
24		Vacuum pipe with non-return valve	999	Next
25	N90986501	Spring band clamp 14,5X12	999	Next
26		Guard plate	999	Next

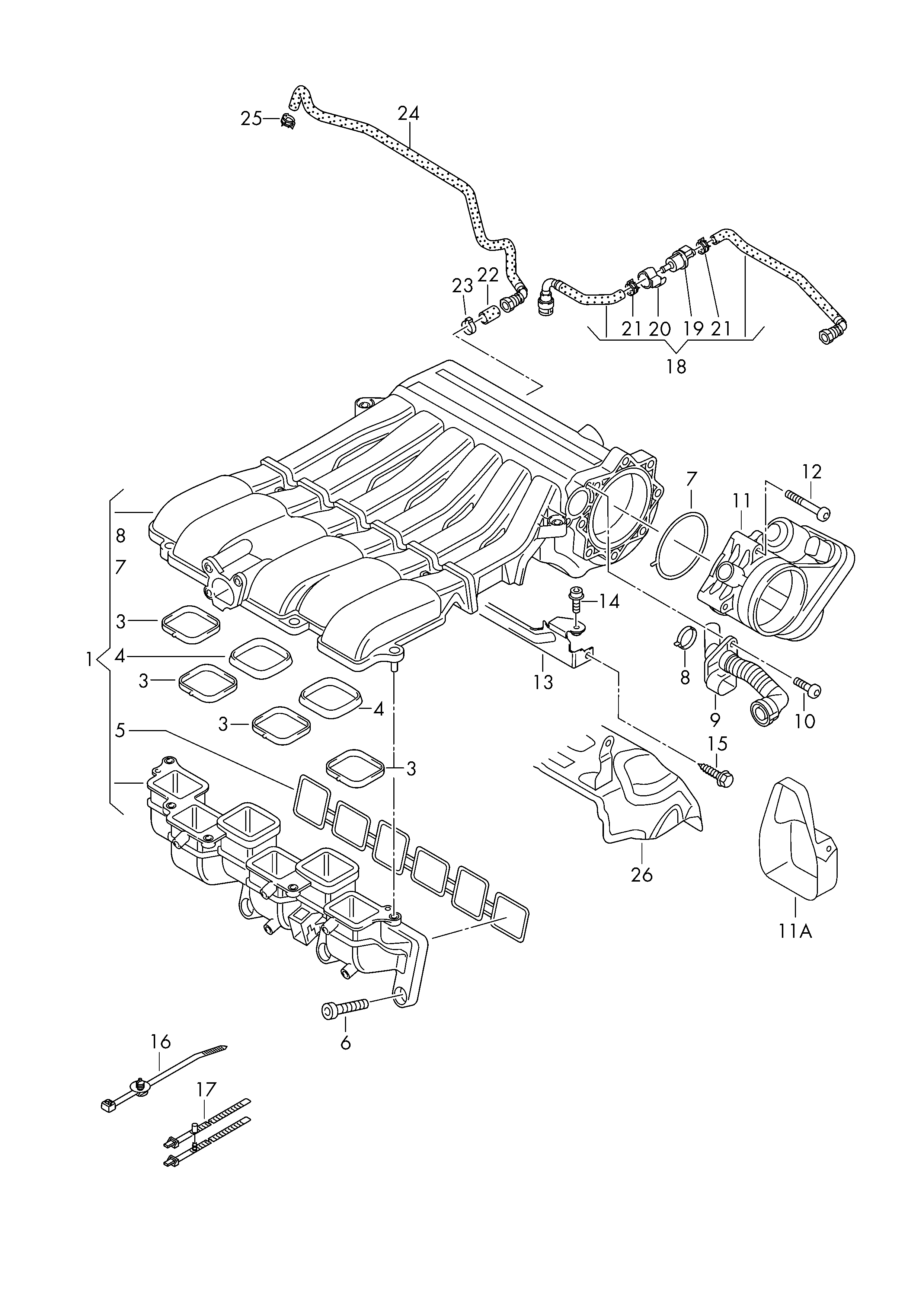

Scheme Intake system 3.6ltr. 6-cylinder+, BWS, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR
