Intake system 1.6ltr. petrol engine Volkswagen Polo 2013-2017 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | 036129709KA | Intake connection | Next |
| 2 | 36133073 | Seal 64X2,3X5,6 | Next |
| 3 | 036129717E | Seal 45X2,3X4,9 | Next |
| 4 | 03C906051F | Pressure sensor | Next |
| 5 | 036906149D | O-ring 7,59X2,62 | Next |
| 6 | N10442003 | Self-tapping screw 5X16 | Next |
| 7 | N91104601 | Socket head bolt with inner multipoint head M8X35 | Next |
| 8 | 03C133062M | Throttle valve control element | Next |
| 9 | N10551403 | Hexagon socket flat head bolt 6X55 | Next |
| 10 | 036133518CP | Connecting hose | Next |
| 11 | 036133514E | Connecting hose | Next |
| 12 | 6Q0906517 | Valve | Next |
| 13 | N90686701 | Spring band clamp 14X12 | Next |
| 14 | 036121188B | Heater pipe ventilation union | Next |
| 15 | O-ring included in position: 14 | Next | |
| 16 | N10507201 | Fillister hd. bolt 5X20 | Next |
| 17 | Coolant hose | Next | |
| 18 | Valve | Next | |
| 19 | 36133751 | Suction jet pump | Next |
| 20 | Air filter | Next | |
| 21 | Coolant hose | Next |

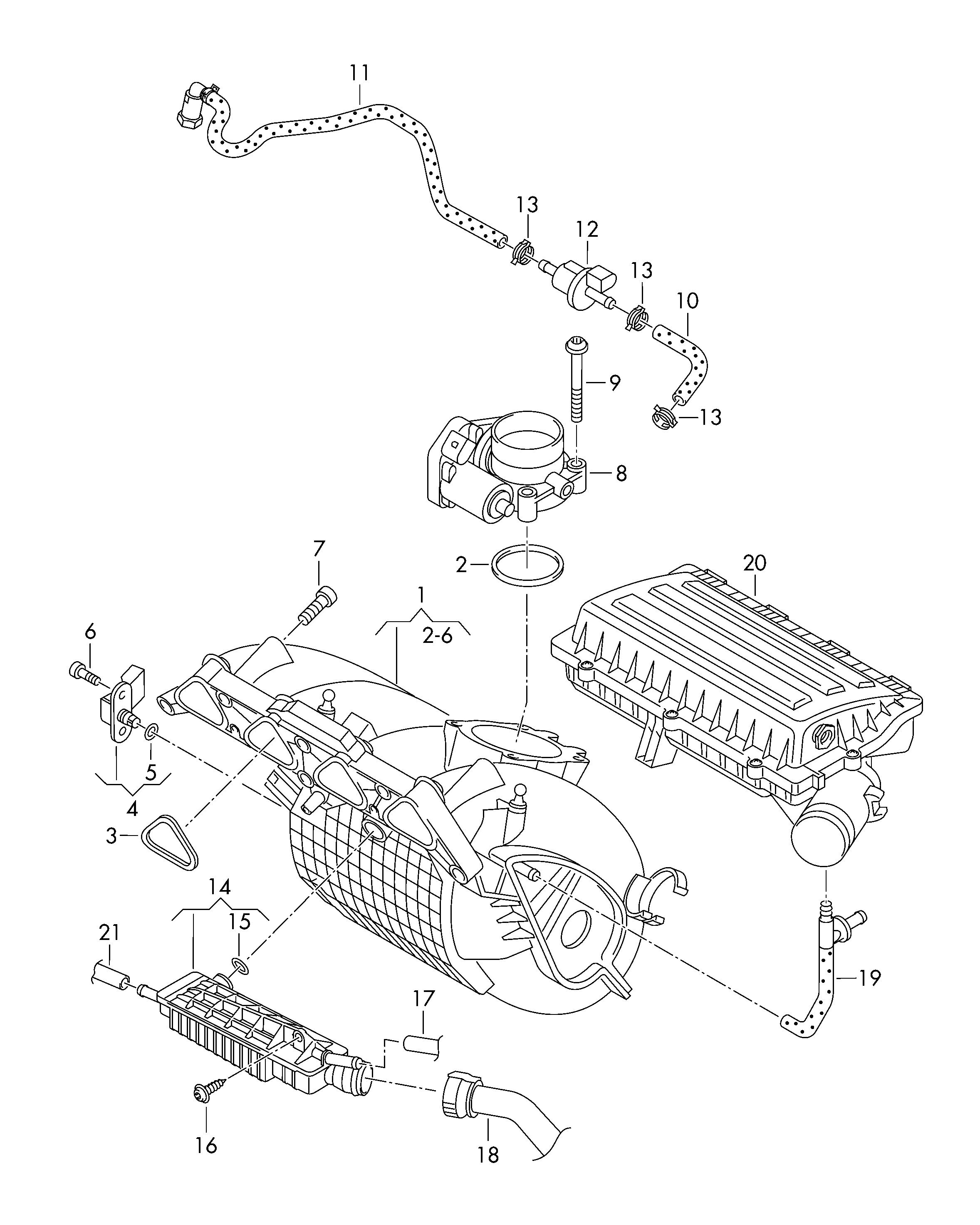

Scheme Intake system 1.6ltr. petrol engine Volkswagen Polo 2013-2017 EUR
