Intake system 1.4ltr. petrol eng.+, PR-TL1 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04E129709L	Intake connection	999	Next
1	036129717E	Seal 45X2,3X4,9	999	Next
1	03C133073A	Seal 65,3X2,15X5,5	999	Next
1	04E129717C	Seal	999	Next
1	03G906051E	Pressure sensor	999	Next
1	036906149D	O-ring 7,59X2,62	999	Next
1	N 10507201	Fillister hd. bolt 5X20	999	Next
1	N 91097201	Round hd. screw M6X35	999	Next
1	03F133062B	Throttle valve adapter	999	Next
1	N 10668001	Oval hexagon socket head bolt 6X65X30	999	Next
1	03F145853A	Retaining bar	999	Next
1	04E145749B	Charge air cooler	999	Next
1	WHT005551	Flat head bolt with hexagon socket head, thread forming	999	Next
1	04E133366R	Connecting hose	999	Next
1	4A0820199	Double cable tie	999	Next
1	3W0971838	Cable ties	999	Next
1	04E145757	Seal 280MM	999	Next
1		Fuel line	999	Next
1		Vent hose	999	Next

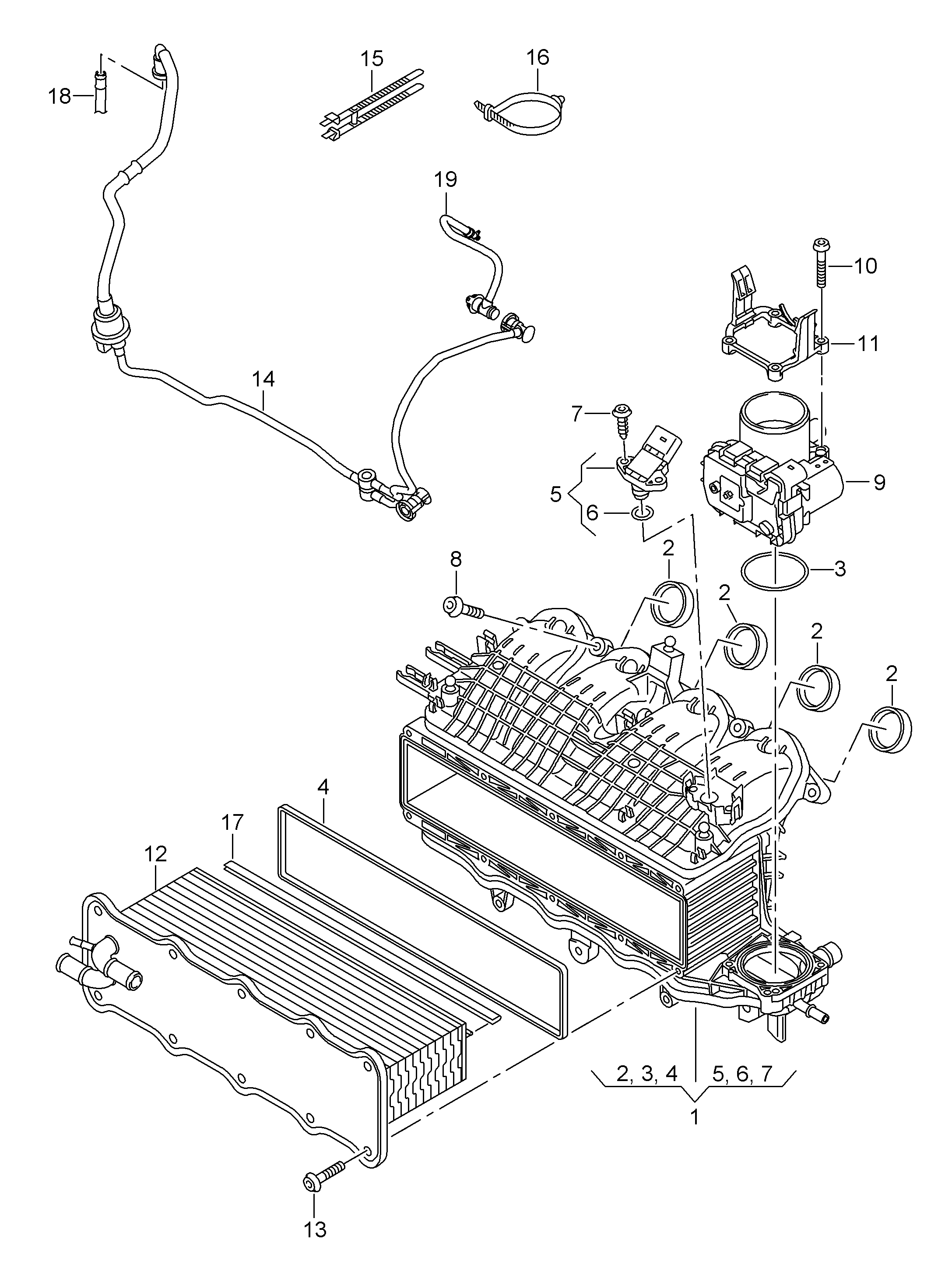

Scheme Intake system 1.4ltr. petrol eng.+, PR-TL1 Volkswagen Tiguan 2010-2017 EUR
