Intake system 1.4ltr. petrol eng.+, CGGA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	036129709JA	Intake connection	999	Next
1	036129709GT	Intake connection	999	Next
2	36133073	Seal 64X2,3X5,6	999	Next
3	036129717E	Seal 45X2,3X4,9	999	Next
4	03C906051F	Pressure sensor	999	Next
5	036906149D	O-ring 7,59X2,62	999	Next
6	N10442003	Self-tapping screw 5X16	999	Next
7	N91104601	Socket head bolt with inner multipoint head M8X35	999	Next
8	03C133062S	Throttle valve control element	999	Next
8	03C133062T	Throttle valve control element	999	Next
9	N10551403	Hexagon socket flat head bolt 6X55	999	Next
10	036133518CP	Connecting hose	999	Next
11	036133518CQ	Connecting hose	999	Next
12	6Q0906517	Valve	999	Next
13	N90686701	Spring band clamp 14X12	999	Next
14	036121188B	Heater pipe ventilation union	999	Next
16	N10507201	Fillister hd. bolt 5X20	999	Next
17		Coolant hose	999	Next
17		Coolant hose	999	Next
18		Vent hose	999	Next

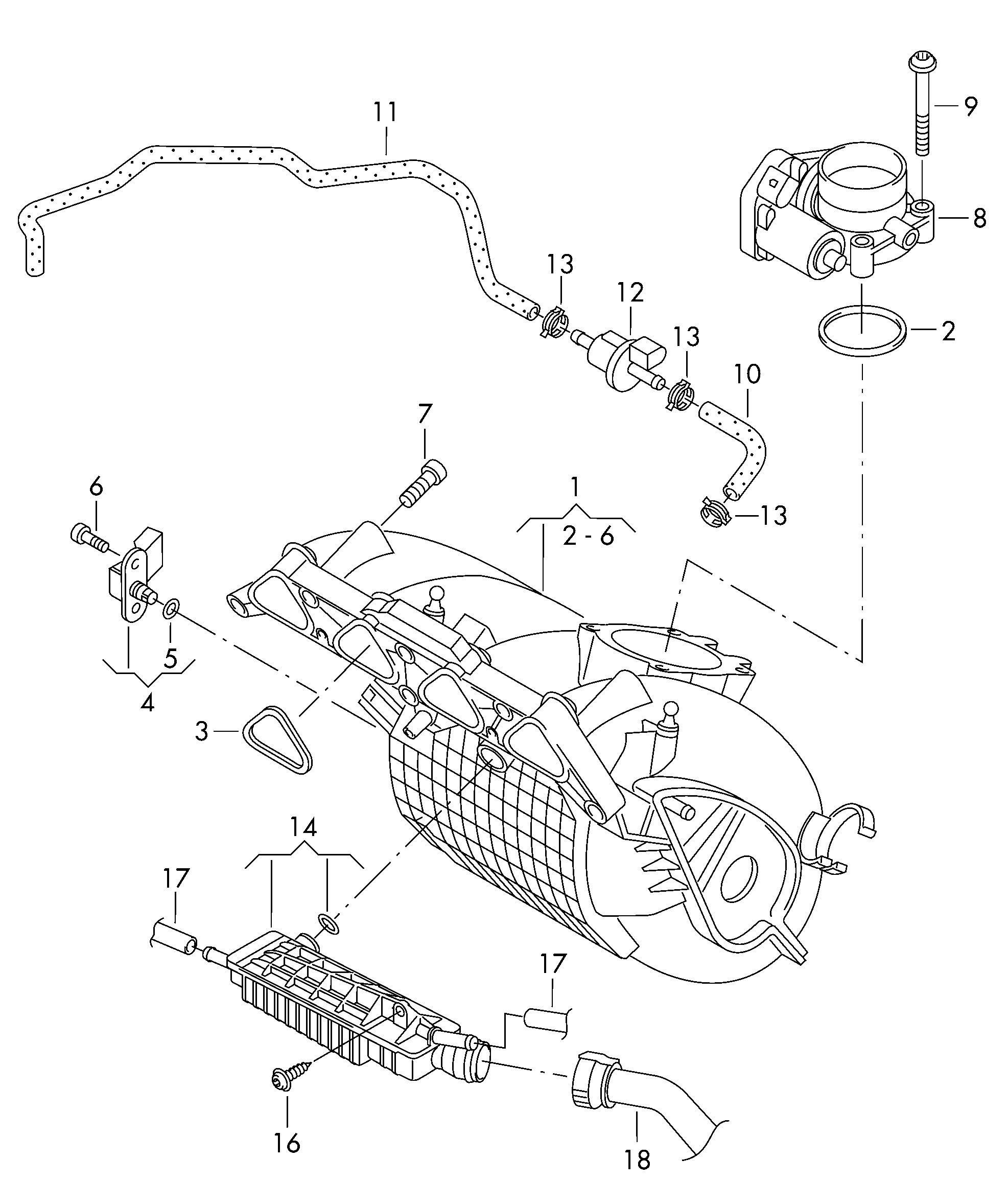

Scheme Intake system 1.4ltr. petrol eng.+, CGGA Volkswagen Golf Plus 2012-2014 EUR
