Impulse sender, knock sensor, control valve Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1		O-ring crankshaft no replacement part	999	Next
1	030906149A	O-ring camshaft 18,1X1,55	999	Next
1	06H906433	Impulse sender crankshaft	999	Next
1	030907601E	Impulse sender camshaft	999	Next
1	07L905163B	Impulse sender camshaft	999	Next
1	07L905163C	Impulse sender camshaft	999	Next
1	03C906455A	Control valve camshaft use if required: N 104 514 05	999	Next
1	04E906455D	Control valve camshaft	999	Next
1	04C907601	Impulse sender camshaft with seal	999	Next
1	04L907601	Impulse sender camshaft with seal	999	Next
1	03L957147A	Impulse sender camshaft	999	Next
1	N 91096701	Oval hexagon socket head bolt crankshaft M6X16	999	Next
1	N 10451405	Oval hexagon socket head bolt camshaft M6X16	999	Next
1	1K0906433	Impulse sender crankshaft	999	Next
1	1K0906433	Impulse sender crankshaft	999	Next
1	03C906433A	Impulse sender crankshaft	999	Next
1	03C906433E	Impulse sender crankshaft	999	Next
1	03C906433A	Impulse sender crankshaft	999	Next
1	03C906433E	Impulse sender crankshaft	999	Next
1	04C906433	Impulse sender crankshaft	999	Next
1	04L906433B	Impulse sender crankshaft	999	Next
1	06E905376A	Knock sensor with wiring harness	999	Next
1	06E905377A	Knock sensor with wiring harness	999	Next
1	N 91076601	Socket head bolt with inner multipoint head M8X30	999	Next
1	030905377C	Knock sensor	999	Next
1	N 01024426	Hexagon bolt M8X30	999	Next
1	N 10451405	Oval hexagon socket head bolt M6X16	999	Next

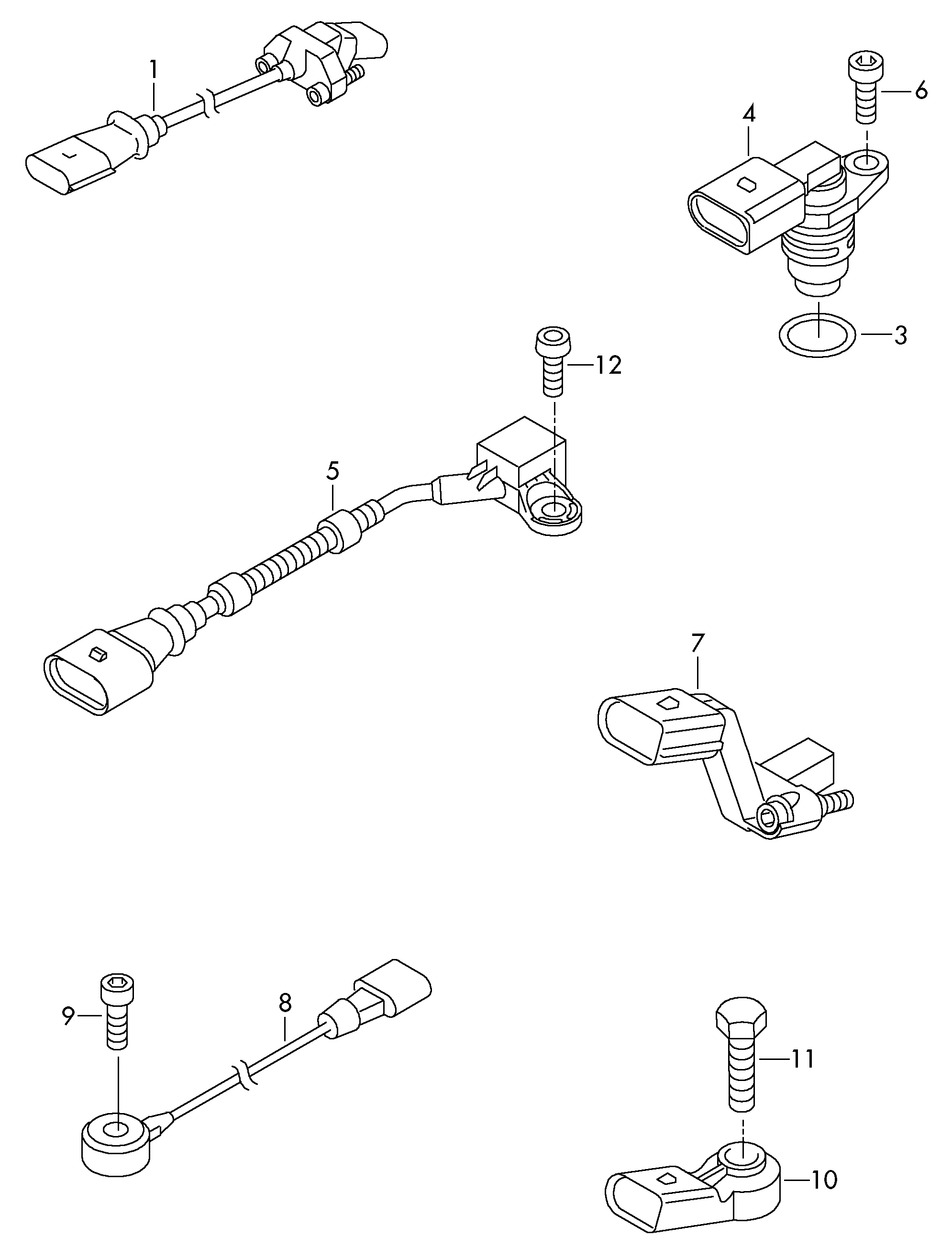

Scheme Impulse sender, knock sensor, control valve Volkswagen Tiguan 2010-2017 EUR
