High pressure pump, fuel rail, injector unit 2.0 ltr. diesel eng.+, RP-T0N Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04L130755D	High pressure pump	999	Next
1		Hub included in position: 3	999	Next
1	04L130101	Toothed belt pulley	999	Next
1	WHT002244	Hexagon collar nut M18X1,5	999	Next
1	N 10714501	Socket head collared bolt with inner multipoint head M8X90X80	999	Next
1	N 10665001	Flat head multi-point socket bolt M8X30	999	Next
1	03L130118	Vibration damper	999	Next
1	04L130089G	Fuel rail	999	Next
1	04L130764C	Pressure-relief valve contains: WHT 004 740 A	999	Next
1	WHT004740A	O-ring 20,2X2,5	999	Next
1	04L906054	Pressure sensor M18X1,5	999	Next
1	N 91128701	Socket head bolt with inner multipoint head M8X32	999	Next
1	04L130380F	Protective strip	999	Next
1	04L130277AC	Injector unit	999	Next
1	04L130277AE	Injector unit	999	Next
1	WHT000884	O-ring 16,2X1,5	999	Next
1	59130519	O-ring	999	Next
1	04L130216	Clamping piece	999	Next
1	WHT005478	Socket head bolt with inner multipoint head M6X105	999	Next
1	04L130235J	Return line	999	Next
1	WHT006497	O-ring 3,52X1,4	999	Next
1	04L130321	Pressure pipe	999	Next
1	03L130301AR	Pressure pipe also use: 03L 130 118	999	Next
1	03L130301AS	Pressure pipe also use: 03L 130 118	999	Next
1	03L130301AT	Pressure pipe also use: 03L 130 118	999	Next
1	03L130301BA	Pressure pipe also use: 03L 130 118	999	Next
1	04L201360M	Fuel line	999	Next
1	N 91171101	Clamp 1-6X15	999	Next
1	N 10335206	Hexagon socket flat head bolt M6X12	999	Next
1		Fuel line	999	Next
1	N 91208604	Spring band clamp 14,5X10	999	Next
1		Fuel line	999	Next
1	4B0422379	Spring band clamp 16X12	999	Next
1		Fuel line	999	Next
1	N 10335206	Hexagon socket flat head bolt M6X12	999	Next

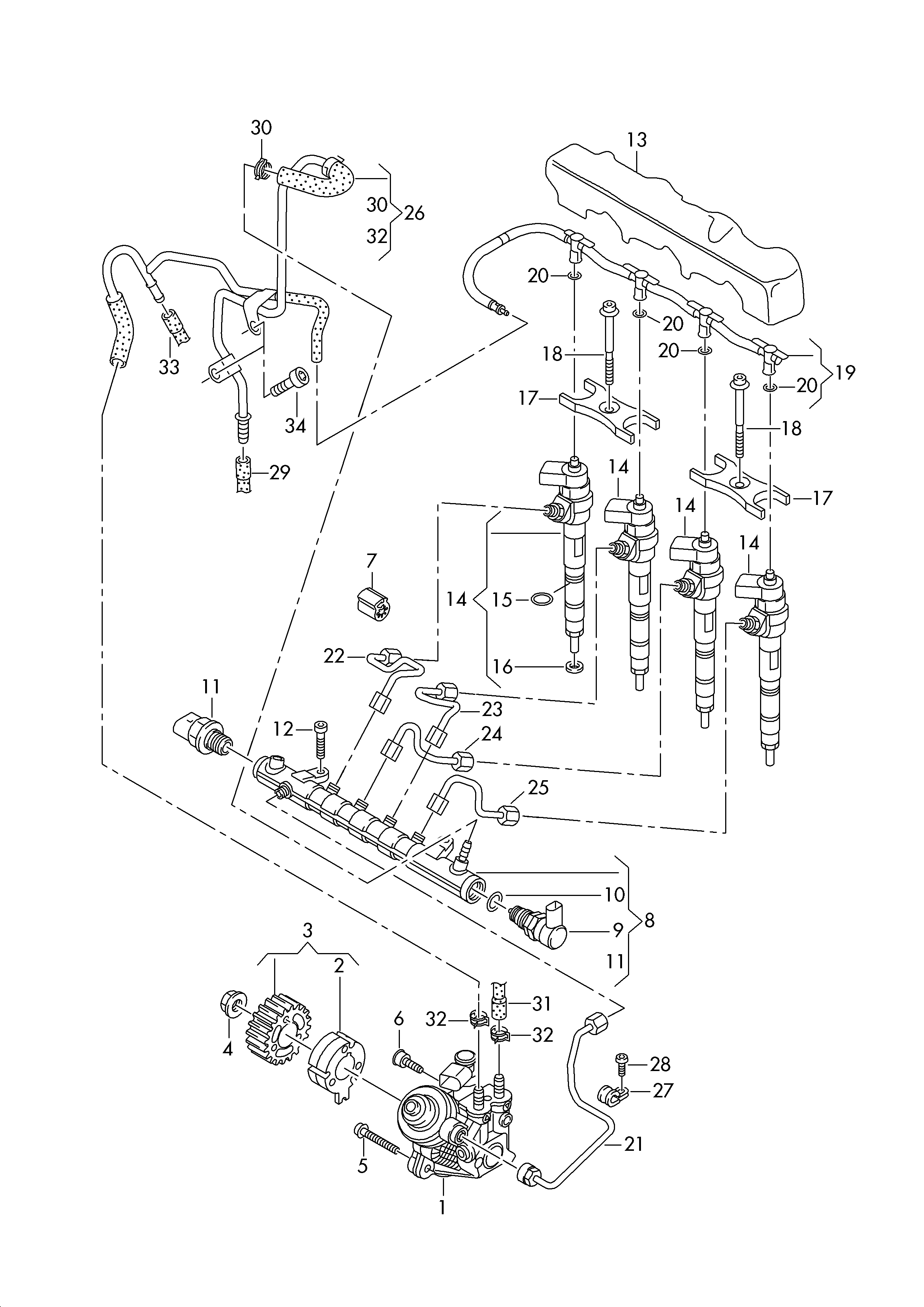

Scheme High pressure pump, fuel rail, injector unit 2.0 ltr. diesel eng.+, RP-T0N Volkswagen Tiguan 2010-2017 EUR
