High pressure pump, fuel rail, injector unit 1.6 ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L130755E	High pressure pump	999	Next
1	03L130755AL	High pressure pump	999	Next
2	N91180301	Flat head multi-point socket bolt M8X35	999	Next
3	03L130111E	Toothed belt pulley	999	Next
4	WHT002244	Hexagon collar nut M18X1,5	999	Next
5	N10714501	Socket head collared bolt with inner multipoint head M8X90X80	999	Next
6	03L130238A	Hub	999	Next
7	03L130089B	Fuel rail also use: N 911 316 01	999	Next
8	03L130764A	Pressure-relief valve 1600 BAR	999	Next
9	WHT004740	O-ring 20X2,6	999	Next
10	03L906051	Pressure sensor M18X1,5	999	Next
10	03L906054A	Pressure sensor M18X1,5	999	Next
11	N91131601	Socket head bolt with inner multipoint head M8X70	999	Next
12	03L130277B	Injector unit if required use also item: 26	999	Next
13	03L130519	O-ring injector unit	999	Next
14	WHT000884	O-ring 16,2X1,5	999	Next
15	03L130216	Tensioning plate	999	Next
16	WHT003187	Socket head bolt with inner multipoint head M6X70.2	999	Next
17	WHT002494	Socket head collared bolt with inner multipoint head M8X28	999	Next
18	03L130447	Clip	999	Next
22	N01508210	Hexagon collar nut	999	Next
23	N90986501	Spring band clamp 14,5X12	999	Next
24	4B0422379	Spring band clamp 16X12	999	Next
25	03L130235P	Return line non-return valve with hoses contains: WHT 005 301	999	Next
25	03L130235AF	Return line non-return valve with hoses contains: WHT 006 492	999	Next
26	WHT005301	O-ring only for: 3,3X1,4 03L130235P	999	Next
26	WHT006492	O-ring only for: 3,3X1,55 03L130235AF	999	Next
27	03L130301AM	Pressure pipe	999	Next
28	03L130301AM	Pressure pipe	999	Next
29	03L130301F	Pressure pipe	999	Next
30	03L130301F	Pressure pipe	999	Next
31	03L130321F	Pressure pipe high pressure pump	999	Next
32	N91171101	Clamp 1-6X15	999	Next
33	N10170303	Round hd. screw M6X10	999	Next
33	N10170302	Round hd. screw M6X10	999	Next
34	03L201360R	Fuel line	999	Next
35		Fuel line	999	Next

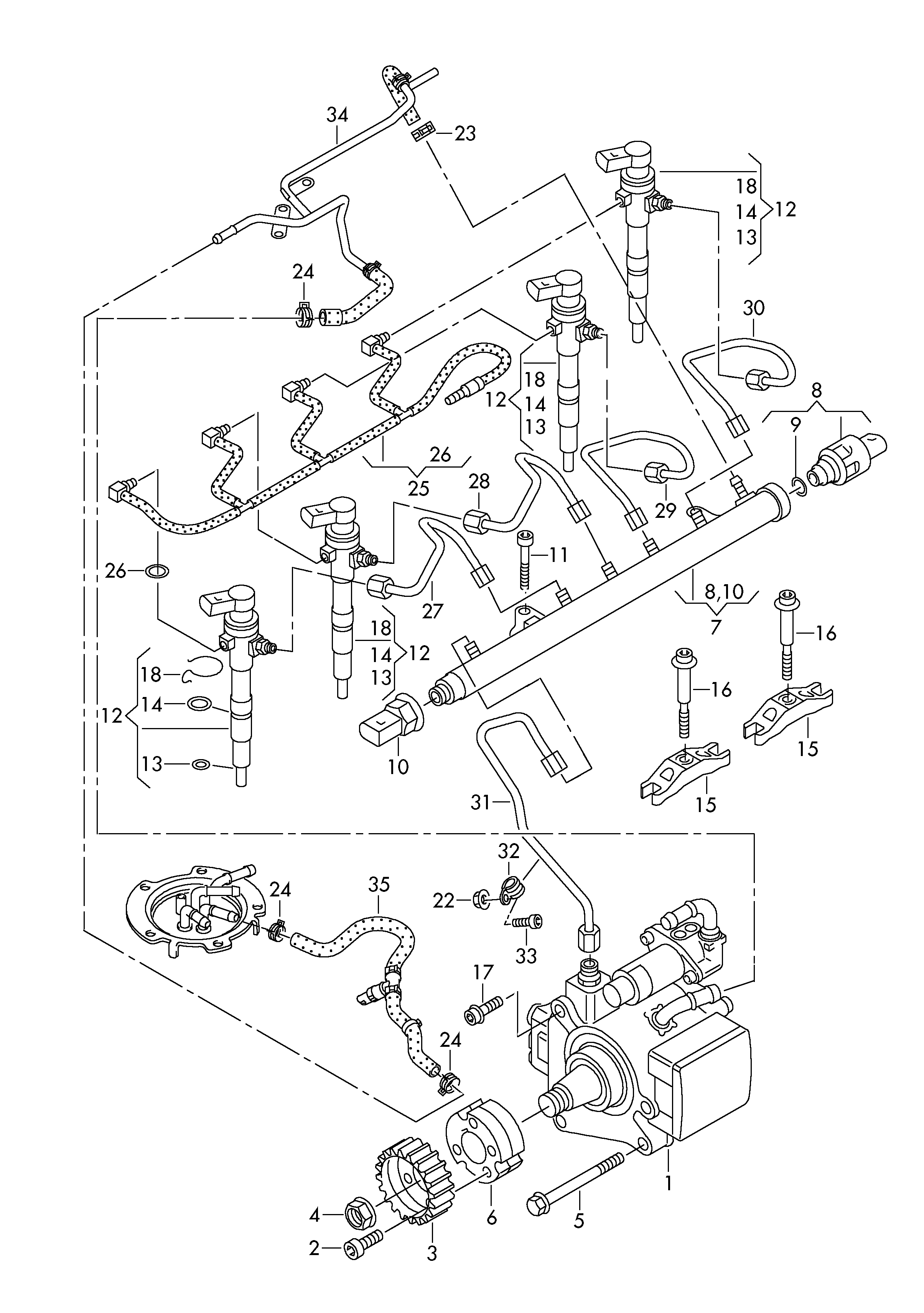

Scheme High pressure pump, fuel rail, injector unit 1.6 ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR
