Heater Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K1819015C	Fan	999	Next
1	1K1819015E	Fan	999	Next
1	1K2819015C	Fan	999	Next
1	1K0907511C	Positioning motor for recirculated air operation	999	Next
1	1K1819007	Housing	999	Next
1	1K2819007	Housing	999	Next
1	1K1819353	Air distribution housing	999	Next
1	1K2819353	Air distribution housing	999	Next
1	1K1819304	Intake duct	999	Next
1	1K2819304	Intake duct	999	Next
1	1K0959263A	Series resistor	999	Next
1	1K0819644B	Dust and pollen filter insert	999	Next
1	1K1819653B	Filter insert with odour and harmful substance filtering	999	Next
1	JZW819653B	Filter insert with odour and harmful substance filter 'eco' economy	999	Next
1	1K2819653B	Filter insert with odour and harmful substance filtering	999	Next
1	JZW819653B	Filter insert with odour and harmful substance filter 'eco' economy	999	Next
1	1K0819422B	Cover dust and pollen filter	999	Next
1	1K0819031D	Heat exchanger	999	Next
1	1K0819031B	Heat exchanger	999	Next
1	1K0963235G	Heater element for electr. auxiliary air heater	999	Next
1	5M1819593B	Cover	999	Next
1	5M2819593B	Cover	999	Next
1	8E0898380	Gasket set	999	Next
1	1K1819857C	Coolant pipe also use: 8E0 898 380	999	Next
1	1K2819857C	Coolant pipe also use: 8E0 898 380	999	Next
1	WHT000155	Wing screw 4,8	999	Next
1	1K0819215	Grille	999	Next
1	1K1898001	1 set: levers for air distribution housing	999	Next
1	1K2898001	1 set: levers for air distribution housing	999	Next
1	1K0898002	1 set of levers air distribution housing	999	Next
1	1K0898002A	1 set of levers air distribution housing	999	Next
1	N 10424102	Hexagon head panel screw 4X16	999	Next
1	1K0819037	Seal	999	Next
1	1K0819345B	Grommet	999	Next
1	1K1819349F	Cover	999	Next
1	1K1819349D	Cover	999	Next
1	1K2819349F	Cover	999	Next
1	1K1819349E	Cover	999	Next
1	1K2819349G	Cover	999	Next
1	1K1819453	Bracket	999	Next
1	1K1819473H	Bracket heater unit	999	Next
1	1K2819473C	Bracket heater unit	999	Next
1	N 90532901	Hexagon head bolt (combi) M6X16	999	Next

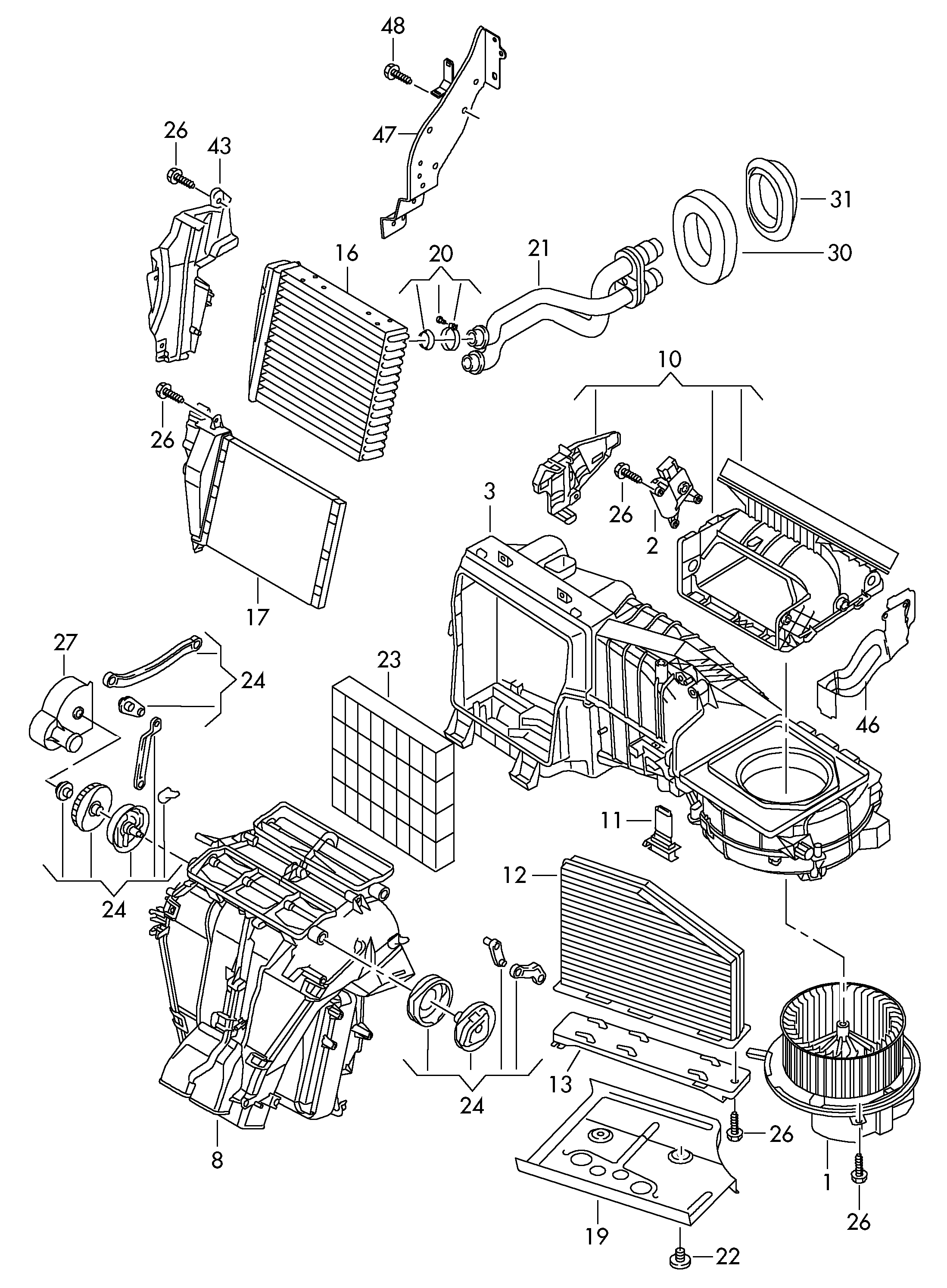

Scheme Heater Volkswagen Tiguan 2010-2017 EUR
