Heater for auxiliary heater PR-9M9 Volkswagen Golf Plus 2012-2014 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | 1K0898020A | Gasket set | Next |
| 4 | 1K0819547A | Intake manifold | Next |
| 5 | 1K0815111A | Temperature sensor | Next |
| 6 | 1K0261141A | Heat exchanger | Next |
| 7 | 1K0261433 | Combustion chamber insert | Next |
| 7 | 1K0261433H | Combustion chamber insert | Next |
| 7 | 1K0261433K | Combustion chamber insert | Next |
| 8 | Glow plug included in position: 7 | Next | |
| 9 | 1K0815020P | Fan with control unit | Next |
| 9 | 1K0815020Q | Fan with control unit | Next |
| 9 | 1K0815020H | Fan with control unit | Next |
| 10 | Trim included in position: 13 | Next | |
| 11 | Trim included in position: 13 | Next | |
| 13 | 1K0898021 | 1 set trims | Next |
| 13 | 1K0898021A | 1 set trims | Next |
| 14 | 1K0898022 | Gasket set | Next |

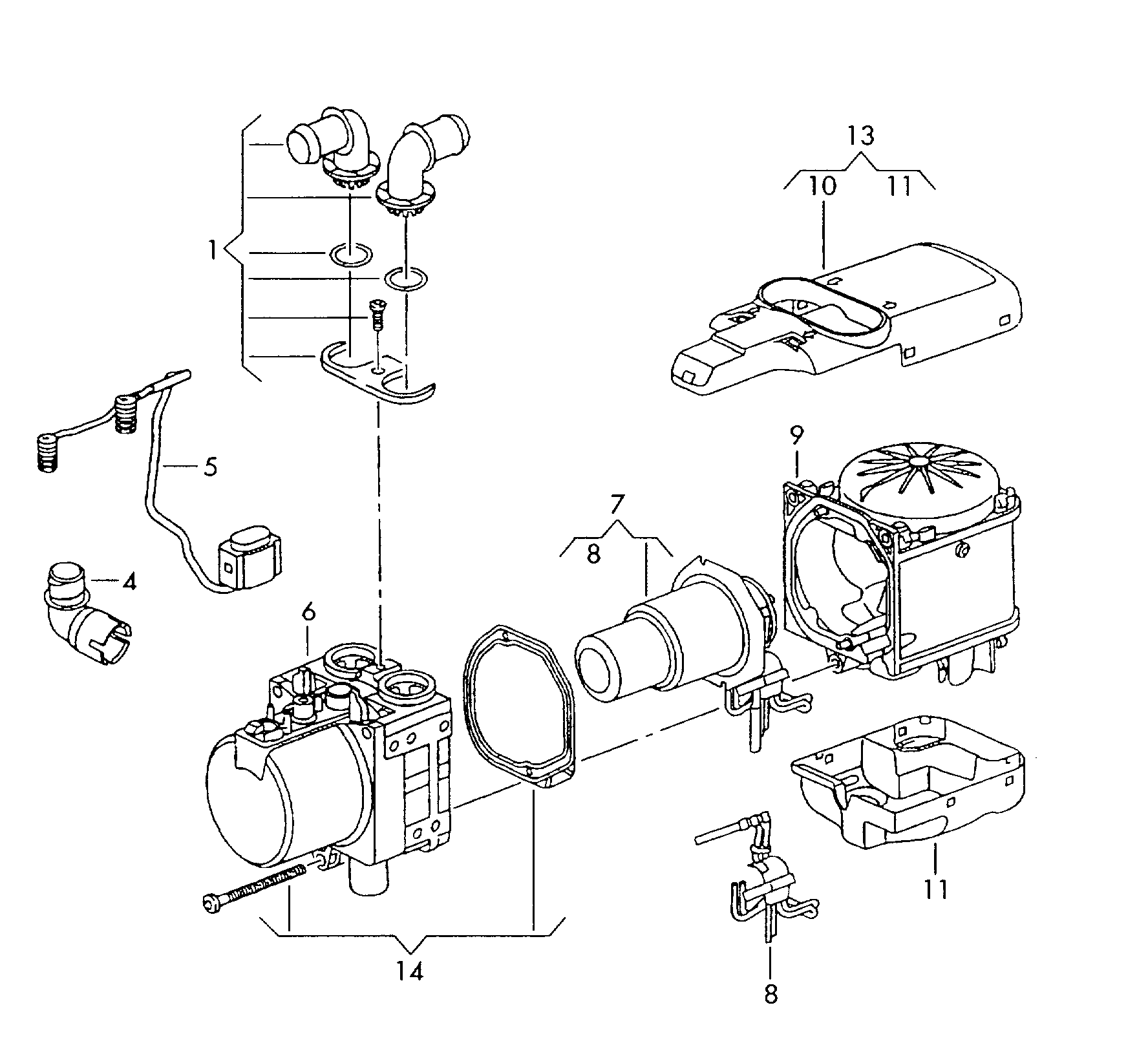

Scheme Heater for auxiliary heater PR-9M9 Volkswagen Golf Plus 2012-2014 EUR
