Headlight washer system Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
2	3C8955453A	Wash water reservoir for vehicles with headlight washer system	999	Next
2	3C8955453D	Wash water reservoir	999	Next
3	3C8955453B	Wash water reservoir	999	Next
4	3C0955489A	Grommet	999	Next
7	1K0955455	End cap	999	Next
8	1C0955485	Strainer	999	Next
12	3B7955681	Pump for headlight- washer system	999	Next
13	431955465A	Seal	999	Next
14	3C0955473	Bracket	999	Next
15	N90761102	Hexagon collar nut M8	999	Next
16	N01508213	Hexagon collar nut M6	999	Next
18	N90168604	Speed nut M6X23,4X16	999	Next
20	N10009207	Hexagon head bolt (combi) M6X20	999	Next
20	4D0863788	Spreader rivet	999	Next
21	3C0815948	Bracket only for position: 3	999	Next
22	N10549503	Hexagon head bolt (combi) M5X16	999	Next
23	N10009110	Hexagon head bolt (combi) M6X12	999	Next
23	N90949102	Hexagon socket oval head bolt (combi) M6X12	999	Next
25	3C8955103	Lift cyl. with nozzle carrier and spray nozzle	999	Next
26	3C8955104	Lift cyl. with nozzle carrier and spray nozzle	999	Next
27	3C8955109	Cover cap	999	Next
27	3C8955109GRU	Cover cap primed	999	Next
28	3C8955110	Cover cap	999	Next
28	3C8955110GRU	Cover cap primed	999	Next
29	N90303801	O-ring 9X1,5	999	Next
30	1J0955665E	Connection piece	999	Next
31	8D0955873	Distributor	999	Next
32	1J0955964F	Hose in coils of 5m 'order unit 5' modify in workshop S10X3	999	Next
33	N90974701	Hexagon socket head panel bolt 5X16	999	Next
34	1H0955846	Terminal 17,5	999	Next

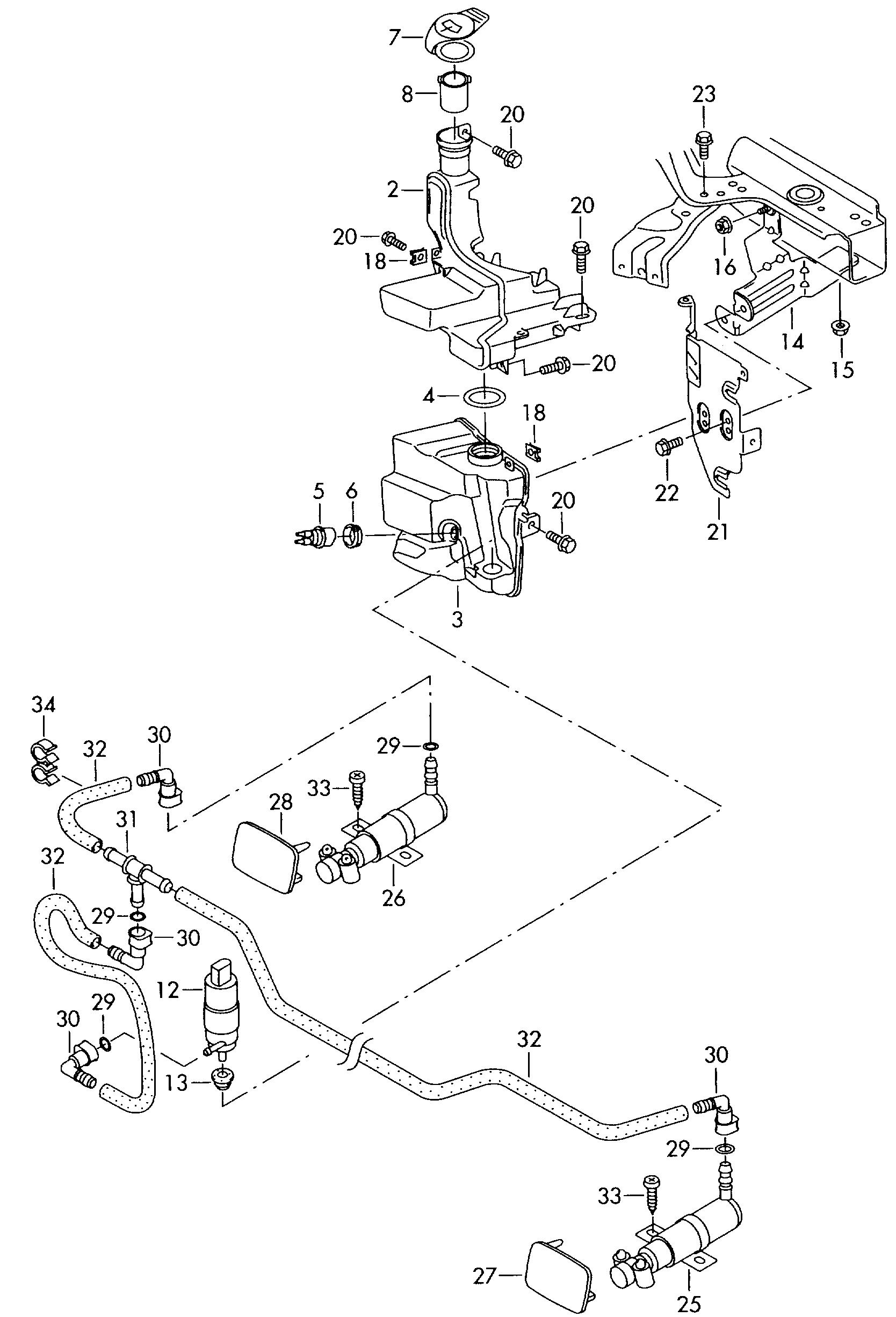

Scheme Headlight washer system Volkswagen Passat CC Coupe 2009-2012 EUR
