Harness for air conditioner Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C1971566AG	Harness for air conditioner, before 08.11.2010	999	Next
1	3C1971566AJ	Wiring set for electronically regulated air-conditioning, D 08.11.2010 and after	999	Next
1	3C2971566R	Harness for air conditioner, before 08.11.2010	999	Next
1	3AC971566	Harness for air conditioner, D 08.11.2010 and after	999	Next
1	3C1971566AF	Wiring set for electronically regulated air-conditioning	999	Next
1	3C1971566AE	Wiring set for electronically regulated air-conditioning	999	Next
1	3C2971566P	Wiring set for electronically regulated air-conditioning	999	Next
10	8D0937731A	Flat contact housing with retainer guide fan motor for models with automatic climatic control	999	Next
10	1J0972752	Flat contact housing fan motor for vehicles with manually regulated air conditioner	999	Next
12	3D0971838	Cable tie with holder for plastic pin: 5X200 5	999	Next
13	1J0971972	Flat connector housing temperature sensor for vehicles with manually regulated air conditioner for models with automatic climatic control	999	Next
14	1K0972704C	Flat contact housing for vehicles with additional electric air heater PTC	999	Next
14	1J0972754	Flat contact housing series resistor for vehicles with manually regulated air conditioner	999	Next
15	6Q0972706	Flat contact housing with contact locking mechanism temperature regulating flap fresh air flap control flap defroster flap air distribution housing for models with automatic climatic control	999	Next
15	6Q0972706	Flat contact housing with contact locking mechanism temperature regulating flap fresh air flap for vehicles with manually regulated air conditioner	999	Next
16	1J0972785	Flat contact housing with contact locking mechanism wiring harness for interior	999	Next
17	1J0972923	Flat contact housing with contact locking mechanism temperature sensor evaporator for vehicles with manually regulated air conditioner for models with automatic climatic control	999	Next
17	1J0972755	Flat contact housing display and control unit for vehicles with manually regulated air conditioner	999	Next
18	1K0972928	Flat contact housing with contact locking mechanism display and control unit	999	Next
19	1K0972928A	Flat contact housing display and control unit for models with automatic climatic control	999	Next

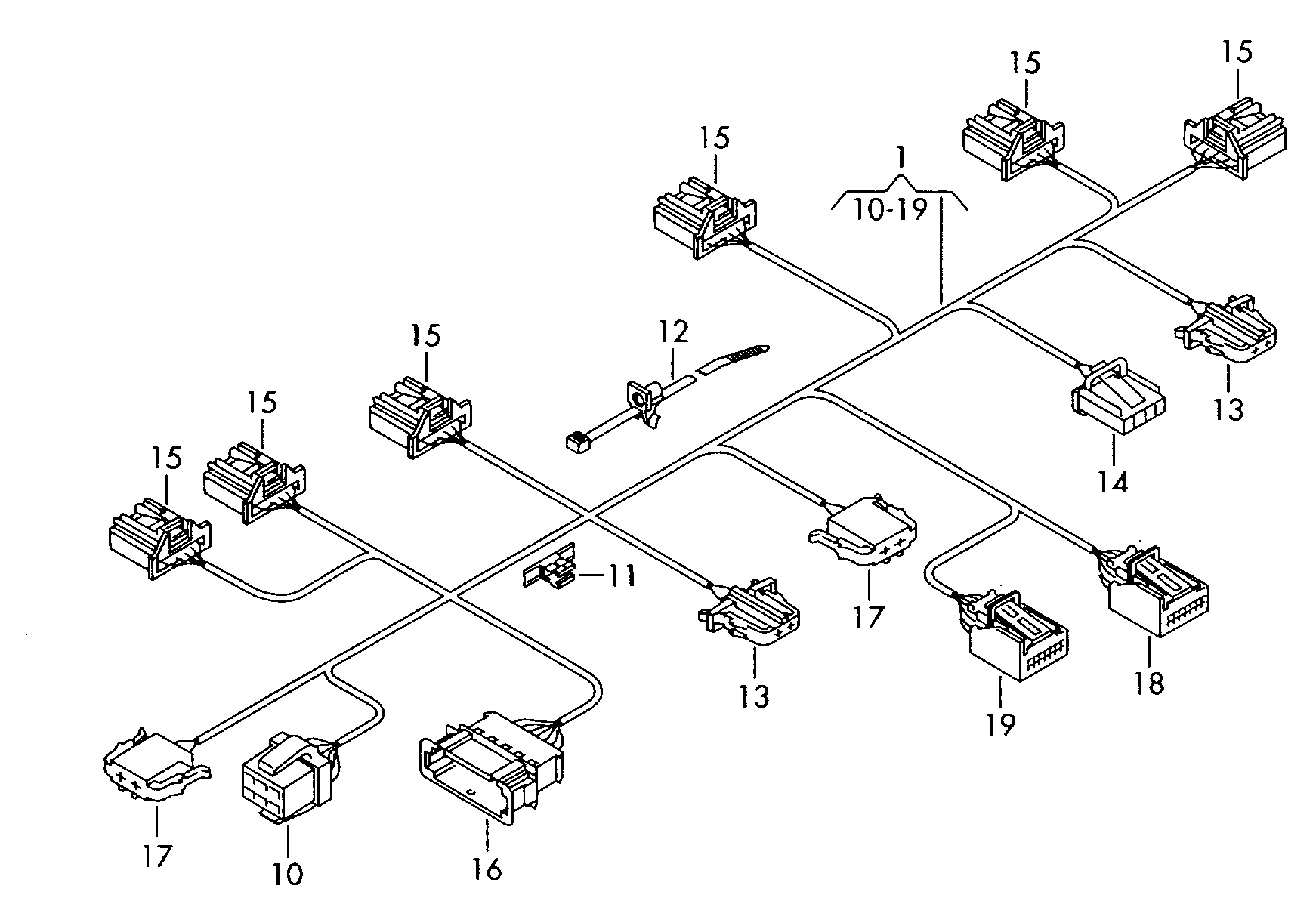

Scheme Harness for air conditioner Volkswagen Passat CC Coupe 2009-2012 EUR
