Harness for air conditioner for vehicles with semi-automatic controlled a/c system Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5K1971566N	Wiring set for air-conditioning actuation for vehicles with semi-automatic controlled a/c system	999	Next
1	5N1971566	Wiring set for air-conditioning actuation for vehicles with semi-automatic controlled a/c system	999	Next
1	5N1971566	Wiring set for air-conditioning actuation for vehicles with semi-automatic controlled a/c system	999	Next
1	5N1971566A	Wiring set for air-conditioning actuation for vehicles with semi-automatic controlled a/c system	999	Next
1	5K2971566F	Wiring set for air-conditioning actuation for vehicles with semi-automatic controlled a/c system	999	Next
1	3W0971838	Cable ties toothed quadrant hole/sheet metal thickness: 4,6X193MM 6,5/0,3-3,0MM	999	Next
1	6Q0971838C	Cable tie with holder for weld pin: 5X200 5	999	Next
1	6Q0972706	Flat contact housing with contact locking mechanism control motor for temperature regulating flap lever for air distribution	999	Next
1	1J0972752	Flat contact housing control unit for air-con. fan motor	999	Next
1	1J0972754	Flat contact housing series resistance for fresh air and hot air blower	999	Next
1	1J0972755	Flat contact housing control unit for air-con.	999	Next
1	1J0972785	Flat contact housing with contact locking mechanism coupling element air conditioning	999	Next
1	1J0972923	Flat contact housing with contact locking mechanism temperature sensor	999	Next
1	1K0972928	Flat contact housing with contact locking mechanism control unit for air-con.	999	Next

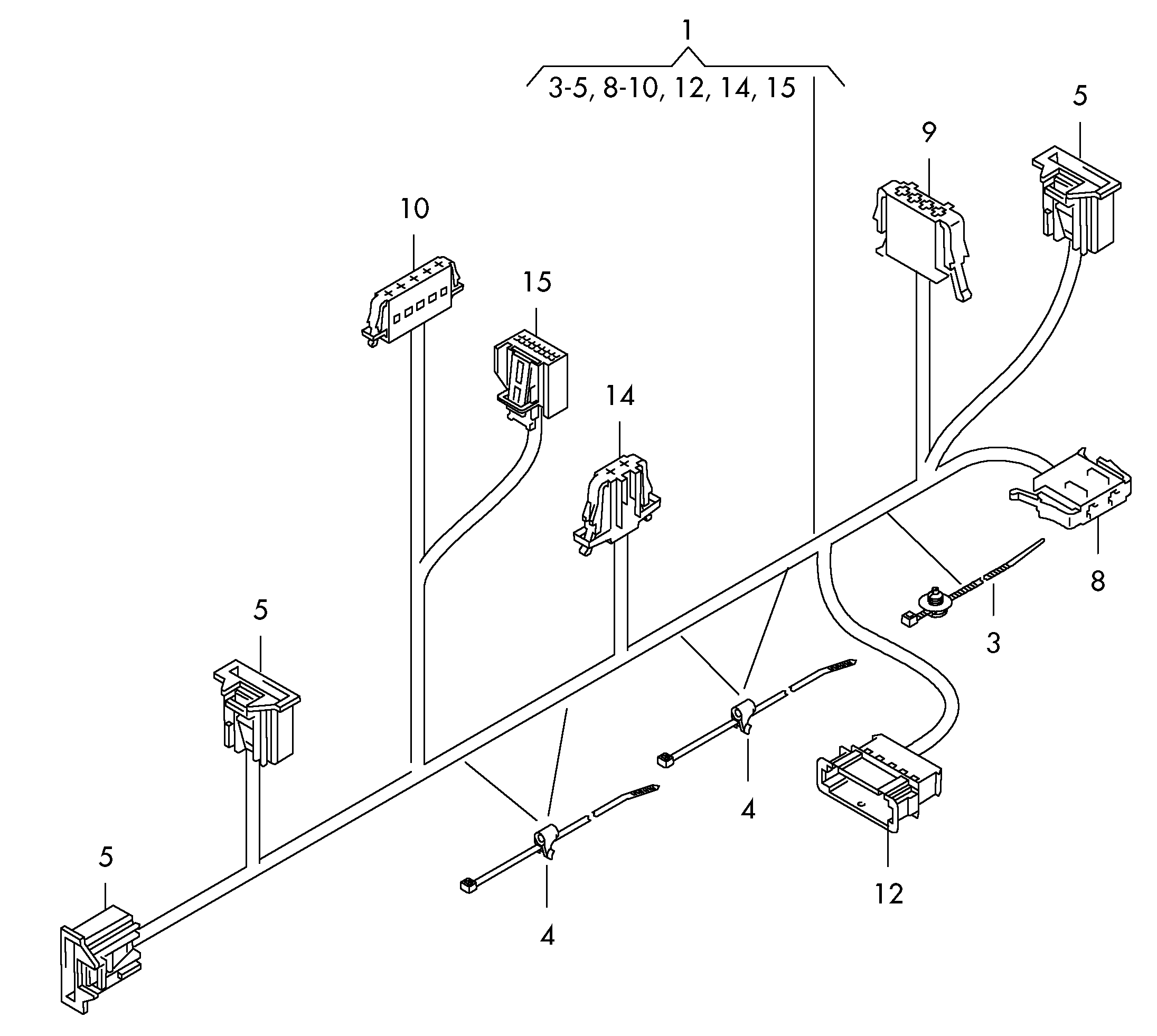

Scheme Harness for air conditioner for vehicles with semi-automatic controlled a/c system Volkswagen Tiguan 2010-2017 EUR
