Gears and shafts, output shaft, for 6 speed manual gearbox KWB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02S311205K	Output shaft 62/17	999	Next
2	20398391	1 set shims 0,65-1,4	999	Next
3	311405625N	Taper roller bearing 29X50,29X14,73	999	Next
3	311405625F	Taper roller bearing 29X50,29X14,73	999	Next
4	02D311206B	Support with taper roller bearing	999	Next
5	N90364901	O-ring 7X2	999	Next
6	N10609203	Hexagon collar nut M8	999	Next
7	02A311221	Thrust washer	999	Next
7	WHT007055	Thrust washer	999	Next
8	02Z311251A	Change gear Z=34	999	Next
9	02A311213C	Needle bearing - 38X43X25	999	Next
10	02J311247D	Synchronizer ring	999	Next
10A	02J311279	Outer ring	999	Next
10B	02J311277B	Synchronizer ring inner	999	Next
11	02J311239K	Synchronizing hub with locking collar	999	Next
12	84311313	Locking piece	999	Next
13	02F311336	Spring	999	Next
14	091311321A	Securing ring	999	Next
15	02A311265D	Needle bearing - 35X40X23,8	999	Next
16	02J311247D	Synchronizer ring	999	Next
17	02J311279	Outer ring	999	Next
18	02J311277B	Synchronizer ring inner	999	Next
19	02J311261R	Change gear Z=36	999	Next
20	02A311175C	Thrust washer	999	Next
21	02J311325	Needle bearing - 30,6X40X25,8	999	Next
22	02A311129CH	Change gear Z=34	999	Next
23	02J311269E	Synchronizer ring	999	Next
24	02J311301K	Synchronizing hub with locking collar	999	Next
25	088311311C	Spring	999	Next
26	02A311115E	Needle bearing - 29X40X24	999	Next
27	02A311145CA	Change gear Z=35	999	Next
28	02A311155A	Thrust washer 9,2X49X2,5	999	Next
29	02Z311375A	Roller sleeve 29X48X18,15	999	Next
29	02Z311375B	Roller sleeve 29X48X18,15	999	Next
30	02A311361BE	Gear	999	Next
31	02S311470A	Sleeve 26X43,5	999	Next
32	02S311166AM	Gear Z=33	999	Next
33	02S311376C	Roller sleeve 25X47X18,7	999	Next
34	WHT002211	Hex socket head collared bolt M10X1X35	999	Next
35		Gear housing	999	Next

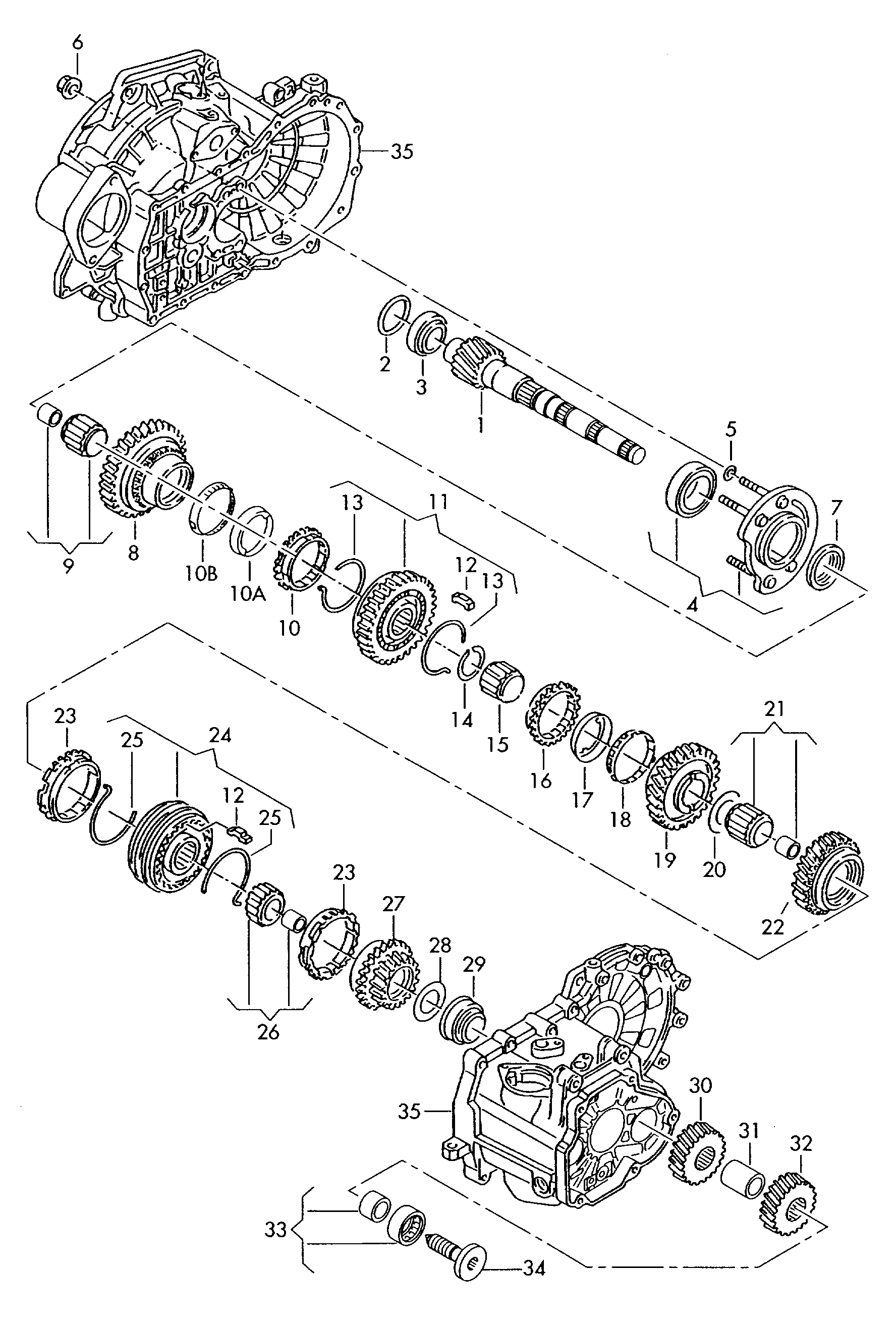

Scheme Gears and shafts, output shaft, for 6 speed manual gearbox KWB Volkswagen Golf Plus 2012-2014 EUR
