Gears and shafts, output shaft, for 6 speed manual gearbox, four-wheel drive reverse, gear LMX, LMV, LMU, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A5301309	Oil thrower	999	Next
1	02K498210	1 set shims 0,65-1,25	999	Next
1	003519185F	Taper roller bearing 38,1X65X18	999	Next
1	WHT002057	Cup washer 14X27,15X2X10	999	Next
1	0A5311432A	Needle bearing - 37X49X15,8	999	Next
1	0A5311848A	Needle bearing - 33X38X19,8	999	Next
1	0A5311215A	Change gear Z=29/23	999	Next
1	0A5311215C	Change gear Z=29	999	Next
1	0A5311759	Synchronizing hub with locking collar	999	Next
1	0A5311759B	Synchronizing hub with locking collar	999	Next
1	02T311321	Securing ring 28,3X36,3X2,5	999	Next
1	02F311124B	Taper roller bearing 25X47X15	999	Next
1	0A5398392	1 set shims 0,65-1,25	999	Next
1		Clutch housing	999	Next
1		Gear housing	999	Next

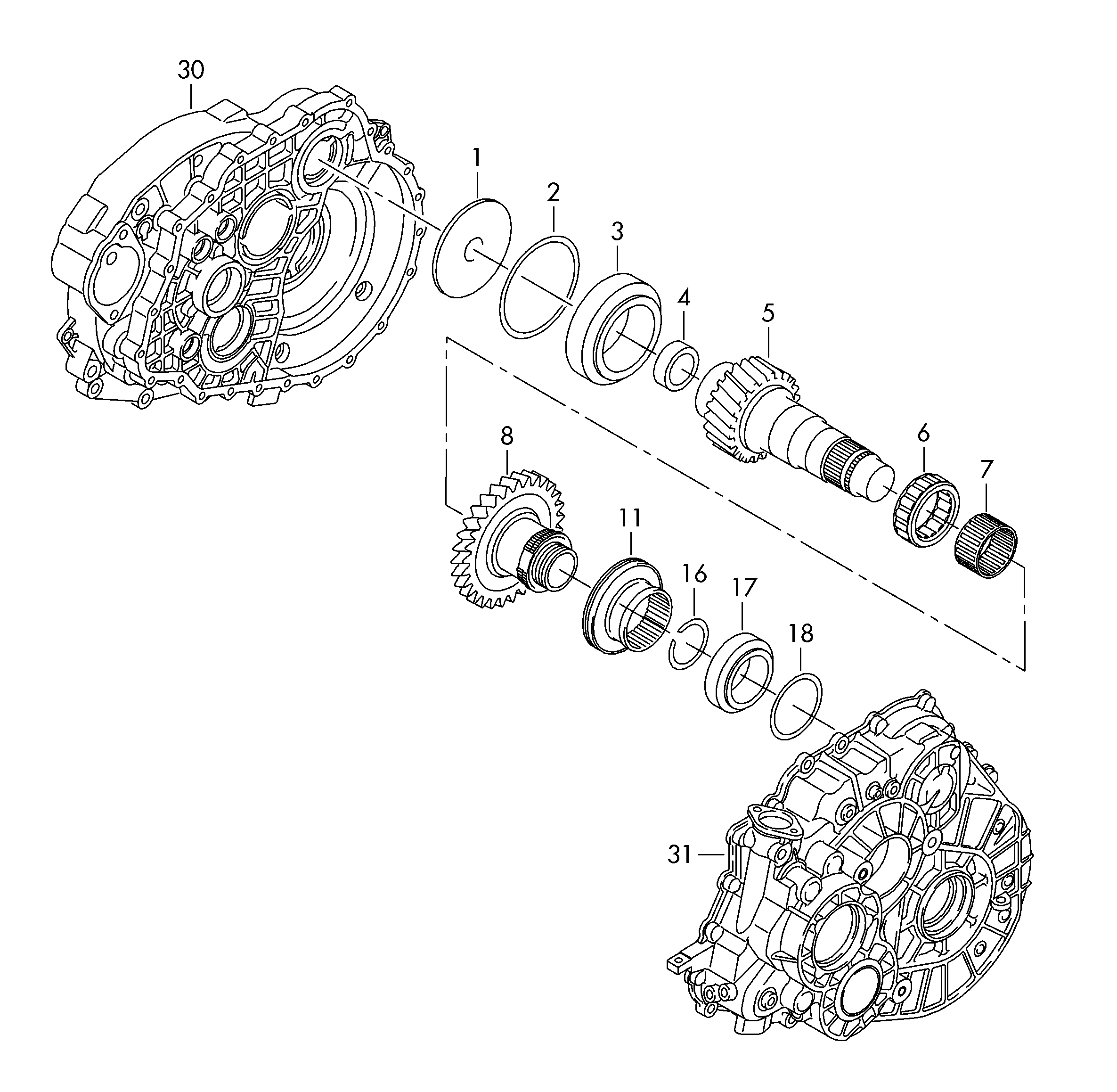

Scheme Gears and shafts, output shaft, for 6 speed manual gearbox, four-wheel drive reverse, gear LMX, LMV, LMU, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR
