Gears and shafts, output shaft, for 6 speed manual gearbox 5th/6th gear LQU, LXM, NFZ, QKP Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02M311208H	Output shaft Z=22	999	Next
1	02M311208J	Output shaft Z=23	999	Next
1	02M311214	Taper roller bearing 38X65X19,8	999	Next
1	02K409210	Adjusting washer 0,65	999	Next
1	02M311759B	Synchronizing hub with locking collar	999	Next
1	8311231	Securing ring	999	Next
1	02M311432	Needle bearing - 43X51X30,8	999	Next
1	02M311215A	Change gear 23/14	999	Next
1	02M311470A	Spacer sleeve	999	Next
1	02M311183	Securing ring 37,2X43,6X2,5	999	Next
1	02M311116	Needle bearing - 40X46X26,8	999	Next
1	02M311349J	Change gear Z=35	999	Next
1	02M311349AM	Change gear Z=36	999	Next
1	02M311349AB	Change gear Z=37	999	Next
1	02M311349AR	Change gear Z=38	999	Next
1	02M311295E	Synchronizer ring	999	Next
1	02M311295G	Synchronizer ring	999	Next
1	02M311241C	Synchronizing hub with locking collar	999	Next
1	02M311241D	Synchronizing hub with locking collar	999	Next
1	02M311317	Securing ring 34,2X40,6X2,5	999	Next
1	02M311295E	Synchronizer ring	999	Next
1	02M311295G	Synchronizer ring	999	Next
1	02M311151	Needle bearing - 37X43X46,8	999	Next
1	02M311159AA	Change gear Z=39	999	Next
1	02M311159BF	Change gear Z=39	999	Next
1	02M311159BC	Change gear Z=36	999	Next
1	02M311159BJ	Change gear Z=36	999	Next
1	02M311123B	Taper roller bearing 30X62X17	999	Next
1	02M398008	1 set circlips 1,79-1,98	999	Next
1	084498383A	1 set shims 0,7-2,4	999	Next
1		Clutch housing	999	Next
1		Gear housing	999	Next

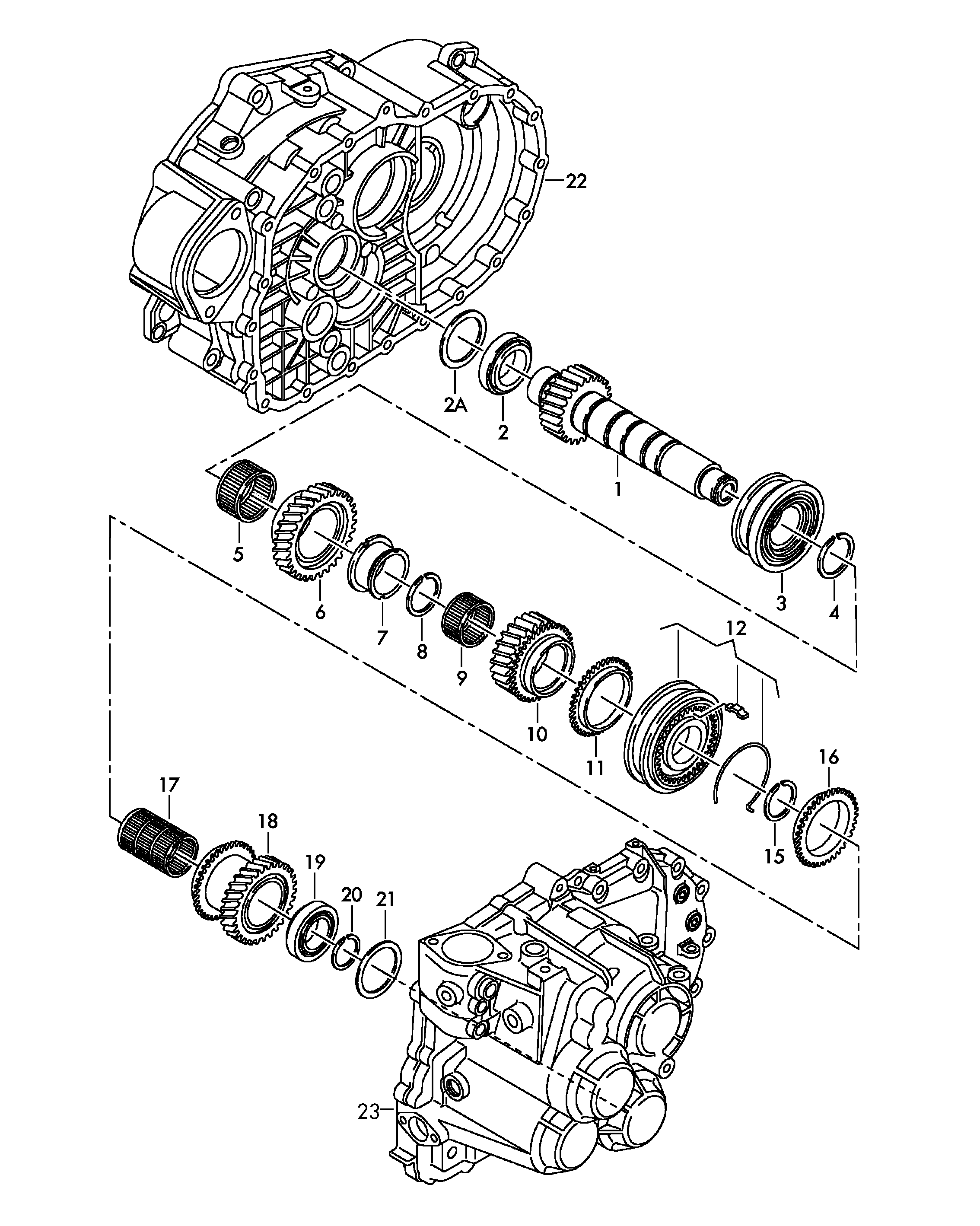

Scheme Gears and shafts, output shaft, for 6 speed manual gearbox 5th/6th gear LQU, LXM, NFZ, QKP Volkswagen Tiguan 2010-2017 EUR
