Gears and shafts, output shaft, for 6 speed manual gearbox, 5th/6th gear LHD, NFP Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02M311208AM	Output shaft 69/25	999	Next
2	02M311214	Taper roller bearing 38X65X19,8	999	Next
2A	02K409210	Adjusting washer 0,65	999	Next
3	02M311759B	Synchronizing hub with locking collar	999	Next
4	8311231	Securing ring	999	Next
5	02M311432	Needle bearing - 43X51X30,8	999	Next
6	02M311215A	Change gear 23/14	999	Next
7	02M311470A	Spacer sleeve	999	Next
8	02M311183	Securing ring 37,2X43,6X2,5	999	Next
9	02M311116	Needle bearing - 40X46X26,8	999	Next
10	02M311349AB	Change gear 33/46	999	Next
10	02M311349AR	Change gear 33/46	999	Next
11	02M311295E	Synchronizer ring	999	Next
11	02M311295G	Synchronizer ring	999	Next
12	02M311241C	Synchronizing hub with locking collar	999	Next
12	02M311241D	Synchronizing hub with locking collar	999	Next
15	02M311317	Securing ring 34,2X40,6X2,5	999	Next
16	02M311295E	Synchronizer ring	999	Next
16	02M311295G	Synchronizer ring	999	Next
17	02M311151	Needle bearing - 37X43X46,8	999	Next
18	02M311159BC	Change gear 36/42	999	Next
18	02M311159BJ	Change gear 36/42	999	Next
19	02M311123B	Taper roller bearing 30X62X17	999	Next
20	02M398008	1 set circlips 1,79-1,98	999	Next
21	084498383A	1 set shims 0,7-2,4	999	Next
22		Clutch housing	999	Next
23		Gear housing	999	Next

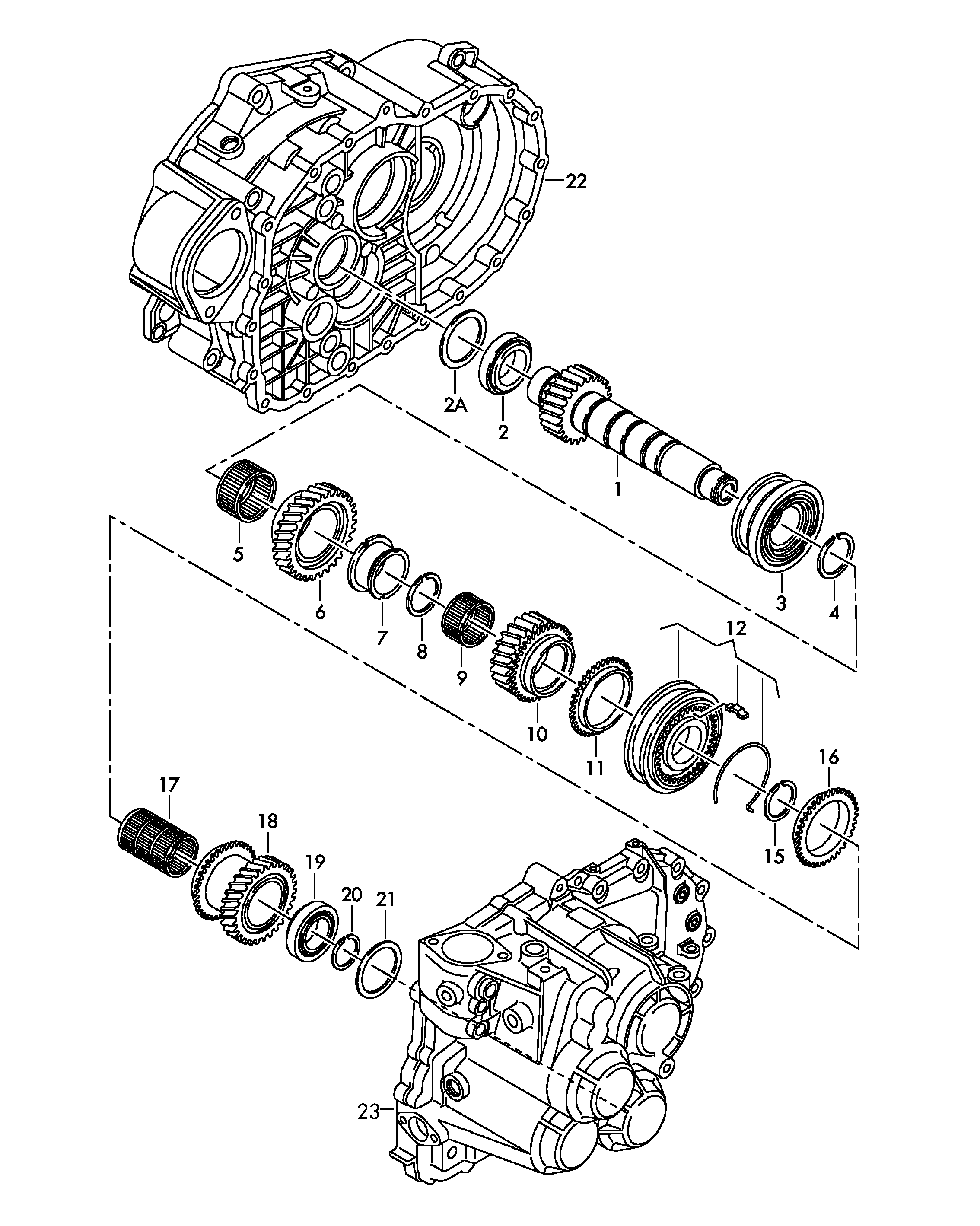

Scheme Gears and shafts, output shaft, for 6 speed manual gearbox, 5th/6th gear LHD, NFP Volkswagen Golf Plus 2012-2014 EUR
