Gears and shafts, output shaft, for 6 speed manual gearbox 3./4.gear LMW Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02K498210	1 set shims 0,65-1,25	999	Next
1	003519185F	Taper roller bearing 38,1X65X18	999	Next
1	0A5311115A	Needle bearing - 45X51X37,8	999	Next
1	0A5311145AM	Change gear 40/29	999	Next
1	0A5311145BF	Change gear 40/29	999	Next
1	02M311277	Synchronizer ring inner	999	Next
1	02Q311279	Outer ring	999	Next
1	02M311269D	Synchronizer ring	999	Next
1	02M311197J	1 set synchro-rings carbon	999	Next
1	0A5311301E	Synchronizing hub with locking collar	999	Next
1	0A5311301G	Synchronizing hub with locking collar	999	Next
1	0A5311311	Spring	999	Next
1	0A5311311A	Spring	999	Next
1	0A5311313D	Locking piece	999	Next
1	02M311269G	Synchronizer ring	999	Next
1	02M311197K	1 set synchro-rings carbon	999	Next
1	02Q311279	Outer ring	999	Next
1	02M311277B	Synchronizer ring inner	999	Next
1	02M311183	Securing ring 7,2X43,6X2,5	999	Next
1	0A5311213A	Needle bearing - 41X46X37,8	999	Next
1	0A5311131G	Change gear 36/19	999	Next
1	0A5311131AL	Change gear 36/19	999	Next
1	0A5311361L	Gear 36/33	999	Next
1	0A5311165K	Gear 33/36	999	Next
1	02M311317	Securing ring 34,2X40,6X2,5	999	Next
1	02M311123B	Taper roller bearing 30X62X17	999	Next
1	084498383A	1 set shims 0,7-2,4	999	Next
1		Clutch housing	999	Next
1		Gear housing	999	Next

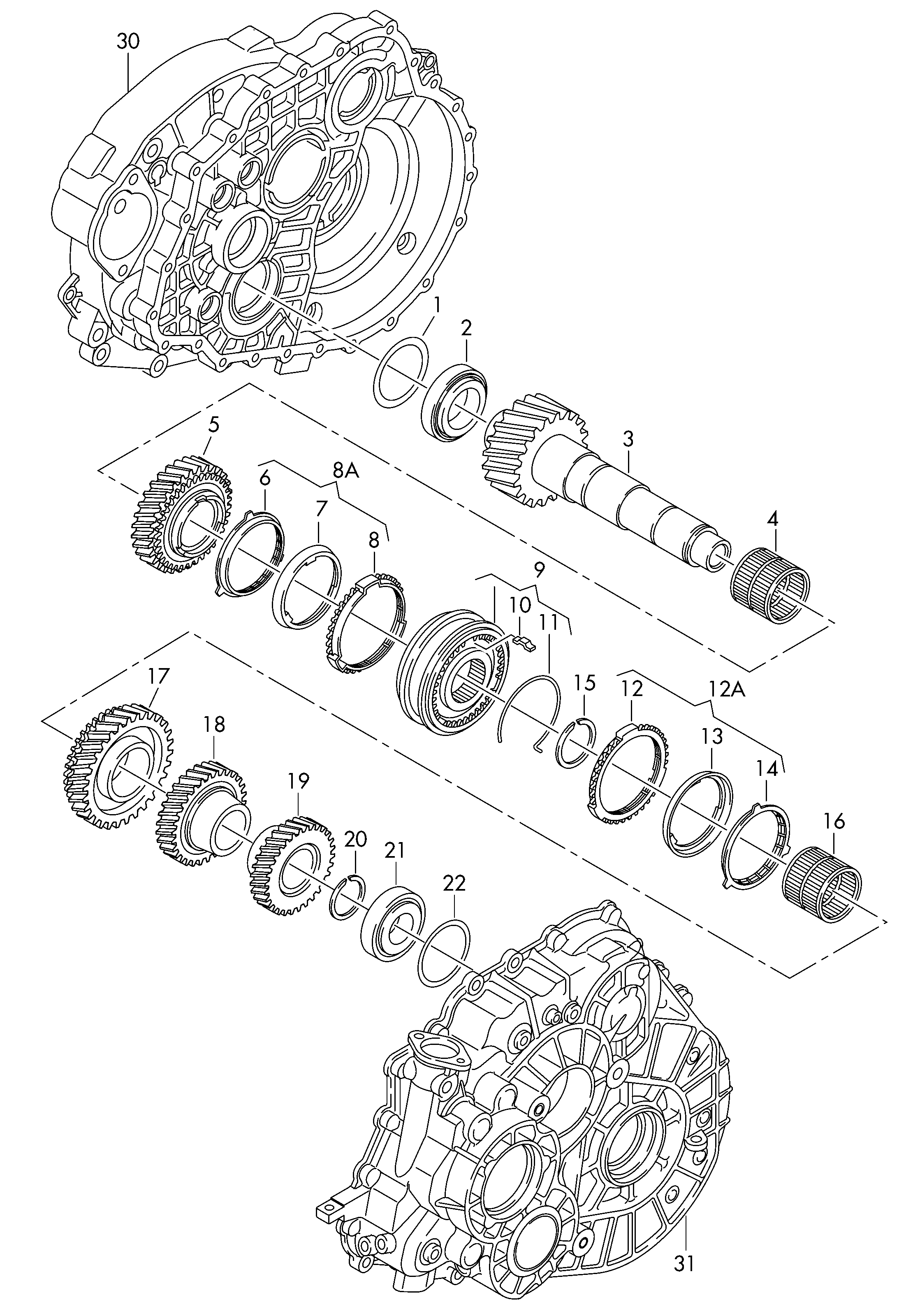

Scheme Gears and shafts, output shaft, for 6 speed manual gearbox 3./4.gear LMW Volkswagen Tiguan 2010-2017 EUR
