Gears and shafts, output shaft, for 6 speed manual gearbox 1st-4th gear LQU, LXM, NFZ, QKP Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02M311205BD	Output shaft Z=17	999	Next
1	02M311205BE	Output shaft Z=18	999	Next
1	WHT002057	Cup washer 14X27,15X2X10	999	Next
1	02M311220	Taper roller bearing 40X80X21	999	Next
1	02M301308A	Oil thrower	999	Next
1	02F311265	Needle bearing - 42X48X26,8	999	Next
1	02M311261R	Change gear 48/23	999	Next
1	02M311261AD	Change gear 48/23	999	Next
1	02M311261T	Change gear 47/24	999	Next
1	02M311261AE	Change gear 47/24	999	Next
1	02M311197H	1 set synchro-rings carbon	999	Next
1	02M311239G	Synchronizing hub with locking collar	999	Next
1	02M311197H	1 set synchro-rings carbon	999	Next
1	8311231	Securing ring	999	Next
1	02F311265	Needle bearing - 42X48X26,8	999	Next
1	02M311251AA	Change gear 49/13	999	Next
1	02M311175B	Thrust washer	999	Next
1	02M311919A	Retaining ring 56X60X3	999	Next
1	02F311265	Needle bearing - 42X48X26,8	999	Next
1	02M311145P	Change gear 42/43	999	Next
1	02M311145BB	Change gear 42/43	999	Next
1	02M311145AJ	Change gear 40/46	999	Next
1	02M311145BG	Change gear 40/46	999	Next
1	02M311269H	Synchronizer ring	999	Next
1	02M311269S	Synchronizer ring	999	Next
1	02M311301F	Synchronizing hub with locking collar	999	Next
1	02F311187	Securing ring	999	Next
1	02M311197J	1 set synchro-rings carbon	999	Next
1	02F311115	Needle bearing - 38X44X26,8	999	Next
1	02M311129Q	Change gear 45/34	999	Next
1	02M311129AD	Change gear 44/35	999	Next
1	02M311123B	Taper roller bearing 30X62X17	999	Next
1	02M398008	1 set circlips 1,79-1,98	999	Next
1	084498383A	1 set shims 0,7-2,4	999	Next
1		Clutch housing	999	Next
1		Gear housing	999	Next

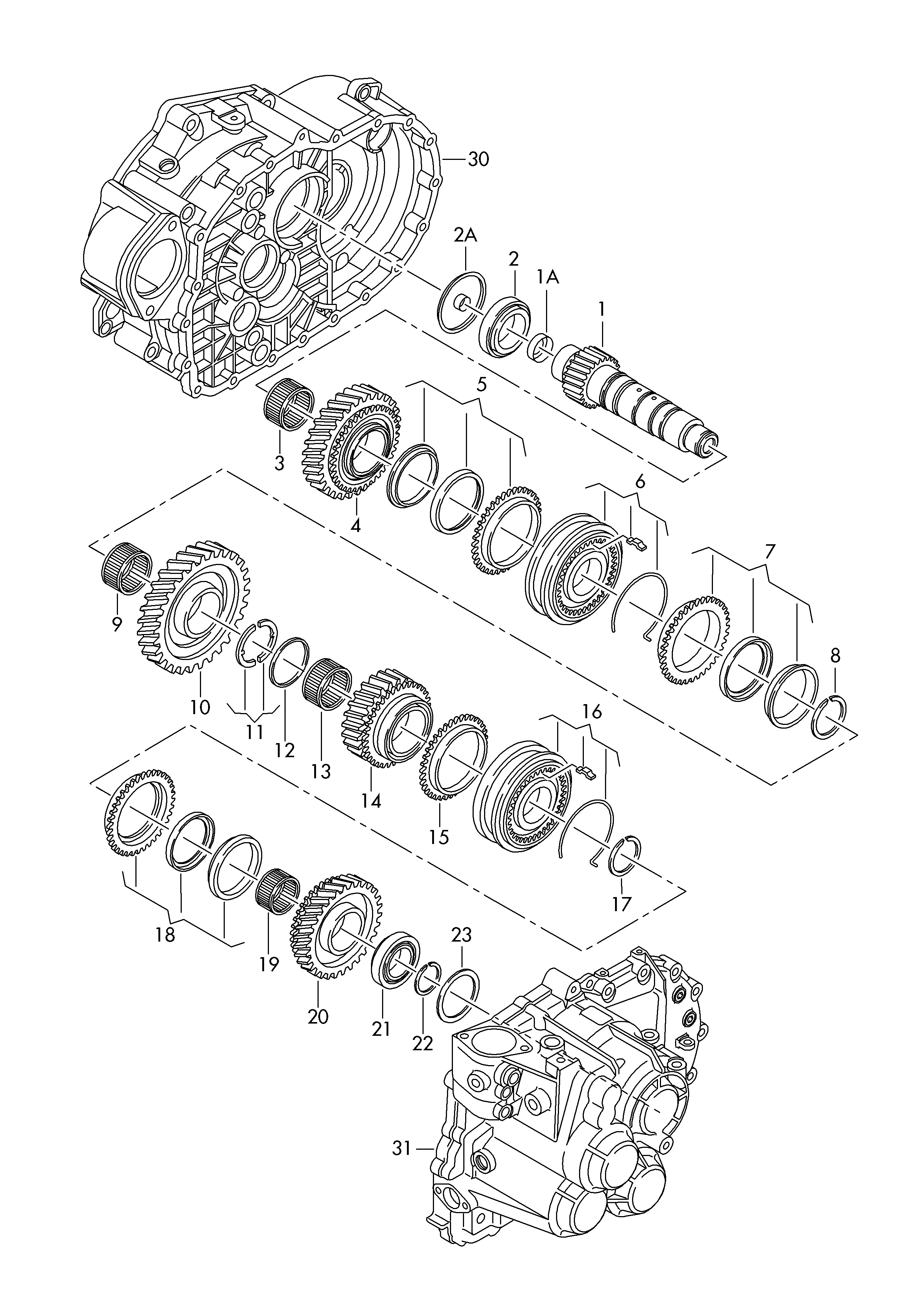

Scheme Gears and shafts, output shaft, for 6 speed manual gearbox 1st-4th gear LQU, LXM, NFZ, QKP Volkswagen Tiguan 2010-2017 EUR
