Gears and shafts, output shaft, for 6 speed manual gearbox, 1st-4th gear LHD, NFP Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02M311205BH	Output shaft Z=20	999	Next
1A	WHT002057	Cup washer 14X27,15X2X10	999	Next
2	02M311220	Taper roller bearing 40X80X21	999	Next
2A	02M301308A	Oil thrower	999	Next
3	02F311265	Needle bearing - 42X48X26,8	999	Next
4	02M311261T	Change gear 47/24	999	Next
4	02M311261AE	Change gear 47/24	999	Next
5	02M311197H	1 set synchro-rings carbon	999	Next
6	02M311239G	Synchronizing hub with locking collar	999	Next
7	02M311197H	1 set synchro-rings carbon	999	Next
8	8311231	Securing ring	999	Next
9	02F311265	Needle bearing - 42X48X26,8	999	Next
10	02M311251AA	Change gear 49/13	999	Next
11	02M311175B	Thrust washer	999	Next
12	02M311919A	Retaining ring 56X60X3	999	Next
13	02F311265	Needle bearing - 42X48X26,8	999	Next
14	02M311145AJ	Change gear	999	Next
14	02M311145BG	Change gear	999	Next
15	02M311269H	Synchronizer ring	999	Next
15	02M311269S	Synchronizer ring	999	Next
16	02M311301F	Synchronizing hub with locking collar	999	Next
17	02F311187	Securing ring	999	Next
18	02M311197J	1 set synchro-rings carbon	999	Next
19	02F311115	Needle bearing - 38X44X26,8	999	Next
20	02M311129AD	Change gear 44/35	999	Next
21	02M311123B	Taper roller bearing 30X62X17	999	Next
22	02M398008	1 set circlips 1,79-1,98	999	Next
23	084498383A	1 set shims 0,7-2,4	999	Next
30		Clutch housing	999	Next
31		Gear housing	999	Next

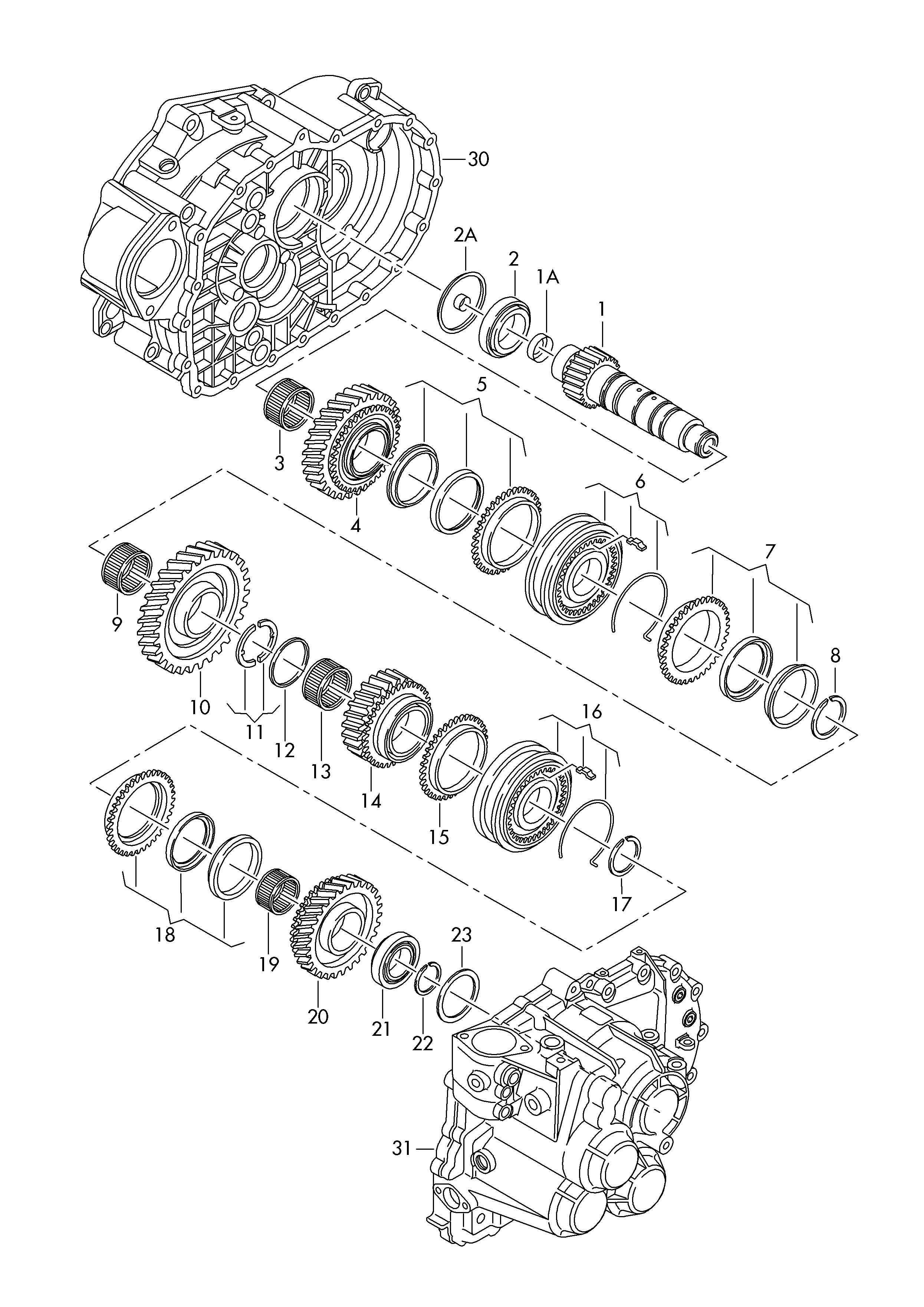

Scheme Gears and shafts, output shaft, for 6 speed manual gearbox, 1st-4th gear LHD, NFP Volkswagen Golf Plus 2012-2014 EUR
