Gears and shafts, output shaft, for 6 speed manual gearbox 1./2.gear LMW Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A5301308A	Oil thrower	999	Next
1	0A5398140	1 set shims 0,65-1,25	999	Next
1	0A5311220B	Taper roller bearing 47,6X96,8X21	999	Next
1	WHT002057	Cup washer 14X27,15X2X10	999	Next
1	WHT001475	Thrust washer	999	Next
1	0A5311985C	Needle bearing - 44,5X61,5X3	999	Next
1	0A5311213A	Needle bearing - 41X46X37,8	999	Next
1	0A5311250T	Change gear 51/13	999	Next
1	0A5311384C	Needle bearing - 45,2X59,4X3,5	999	Next
1	02M311197M	1 set synchro-rings	999	Next
1	02M311239G	Synchronizing hub with locking collar	999	Next
1	0A5311313D	Locking piece	999	Next
1	0A5311249A	Spring	999	Next
1	02M311197M	1 set synchro-rings	999	Next
1	02M311183A	Securing ring 38,9X45,3X2,5	999	Next
1	0A5311213A	Needle bearing - 41X46X37,8	999	Next
1	0A5311261AE	Change gear 41/19	999	Next
1	0A5311123A	Taper roller bearing 31,8X68,3X22,2	999	Next
1	0A5311287	Securing ring 29,5X35,9X2,5	999	Next
1	0A5398391	1 set shims 0,65-1,25	999	Next
1		Clutch housing	999	Next
1		Gear housing	999	Next

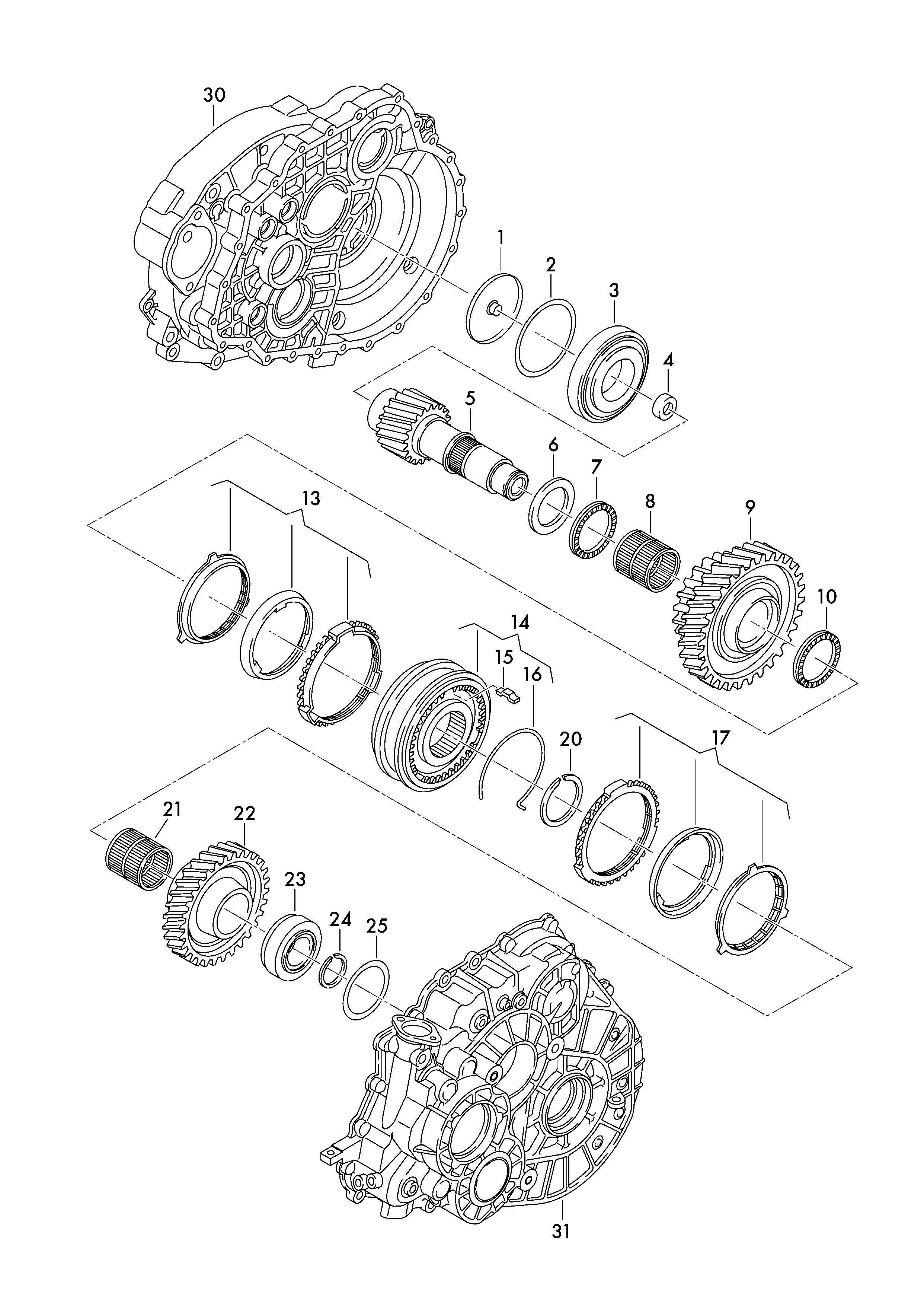

Scheme Gears and shafts, output shaft, for 6 speed manual gearbox 1./2.gear LMW Volkswagen Tiguan 2010-2017 EUR
