Gears and shafts, output shaft, for 5 speed manual transmiss. MHV Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0AH311198	Output shaft Z=19	999	Next
2	02T311373J	Roller sleeve 55X32X18	999	Next
2	02T311373G	Roller sleeve 55X32X18	999	Next
3	02T311351AA	Gear Z=37	999	Next
4	02T311317	Securing ring 32,8X38X2,5	999	Next
4A	02T311321	Securing ring 28,3X36,3X2,5	999	Next
4B	85311317	Securing ring 24,9X2,5	999	Next
5	02T311285Q	Gear Z=41	999	Next
6	02T311261A	Change gear Z=43	999	Next
7	02T311265C	Needle bearing - 30,5X35,5X26,5	999	Next
8	085311277B	Synchronizer ring inner additionally to be used items: 10	999	Next
9	85311279	Outer ring	999	Next
10	02T311247C	Synchronizer ring additionally to be used items: 8	999	Next
12	02T311239C	Synchronizing hub with locking collar	999	Next
13	02T311249A	Spring	999	Next
14	84311313	Locking piece	999	Next
19	85311115	Needle bearing - 27X32X24,8	999	Next
20	02T311251B	Change gear Z=49	999	Next
21	0AJ311206B	Mounting with groofed ball bearing	999	Next
21	0AJ311206E	Mounting with groofed ball bearing	999	Next
21A	N90897305	Socket head bolt with inner multipoint head M6X20,5	999	Next
22	02T311361AB	Gear Z=35	999	Next
23	85398008	1 set circlips 2-2,6	999	Next
24		Clutch housing	999	Next
25		Gear housing	999	Next

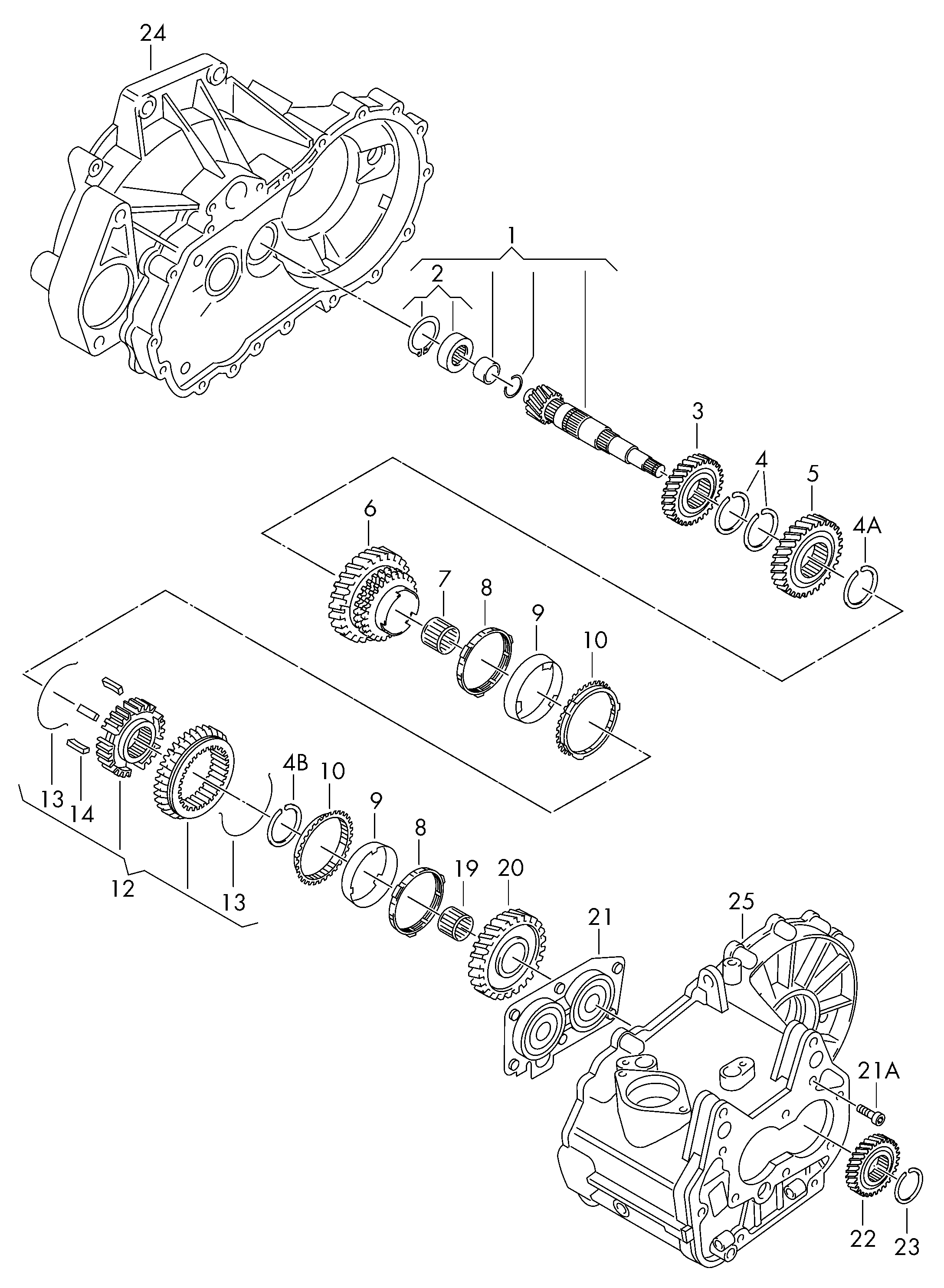

Scheme Gears and shafts, output shaft, for 5 speed manual transmiss. MHV Volkswagen Golf Plus 2012-2014 EUR
