Gears and shafts, output shaft, for 5 speed manual transmiss. LEG, LVQ, NVU Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02T311198B	Output shaft 68/15	999	Next
1	02T311198M	Output shaft Z=14	999	Next
1	02T311198R	Output shaft also use: Z=14 02T409021BS	999	Next
2	02T311373G	Roller sleeve 55X32X18	999	Next
2	02T311373J	Roller sleeve 55X32X18	999	Next
2	02T311373L	Roller sleeve 55X32X18	999	Next
3	02T311351F	Gear Z=38	999	Next
3	02T311351D	Gear Z=41	999	Next
4	02T311317	Securing ring 32,8X38X2,5	999	Next
4A	02T311321	Securing ring 28,3X36,3X2,5	999	Next
4B	85311317	Securing ring 24,9X2,5	999	Next
5	02T311285Q	Gear Z=41	999	Next
5	02T311285P	Gear Z=43	999	Next
6	02T311261	Change gear Z=44	999	Next
7	02T311265C	Needle bearing - 30,5X35,5X26,5	999	Next
8	085311277B	Synchronizer ring inner additionally to be used items: 10	999	Next
9	85311279	Outer ring	999	Next
10	02T311247C	Synchronizer ring additionally to be used items: 8	999	Next
12	02T311239C	Synchronizing hub with locking collar	999	Next
13	02T311249A	Spring	999	Next
14	84311313	Locking piece	999	Next
19	85311115	Needle bearing - 27X32X24,8	999	Next
20	02T311251B	Change gear Z=49	999	Next
21	02T311206H	Mounting with groofed ball bearing	999	Next
21A	N90897305	Socket head bolt with inner multipoint head M6X20,5	999	Next
22	02T311361B	Gear Z=37	999	Next
22	02T311361D	Gear Z=40	999	Next
23	85398008	1 set circlips 2-2,6	999	Next
24		Clutch housing	999	Next
25		Gear housing	999	Next

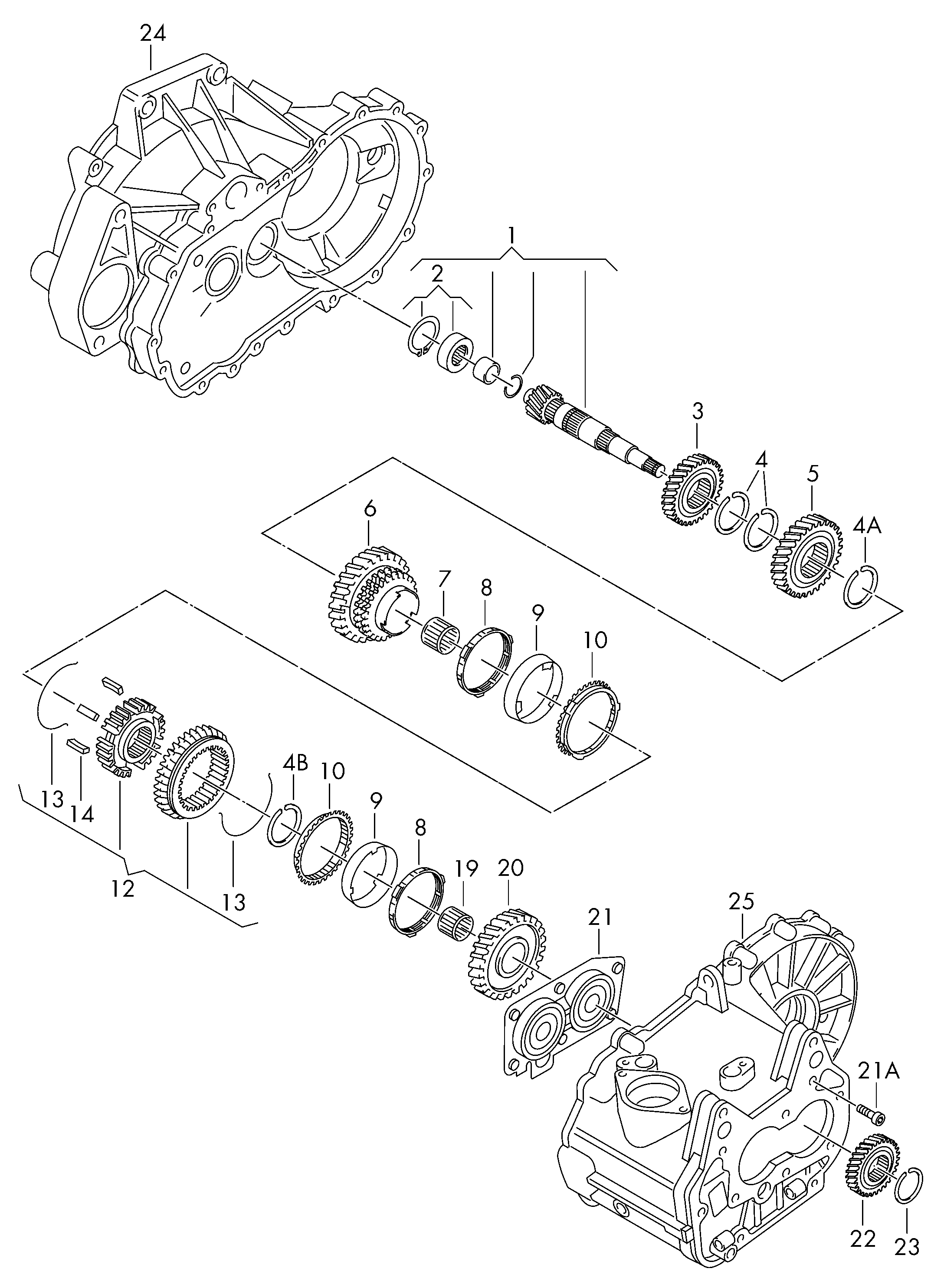

Scheme Gears and shafts, output shaft, for 5 speed manual transmiss. LEG, LVQ, NVU Volkswagen Golf Plus 2012-2014 EUR
