Gears and shafts, input shaft, for 6 speed manual gearbox LHY, LNY, NBW, NBX, PRG, PRJ Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02U311103AD	Input shaft Z=13+22	999	Next
1	02U311103AE	Input shaft also use: Z=13+19 02T 311 261 P	999	Next
-	02T311261P	Change gear	999	Next
2	02T311265C	Needle bearing - 30,5X35,5X26,5	999	Next
2A	02T311132A	Needle bearing - 24,3X35,5X26,3	999	Next
3	02T311129AQ	Change gear Z=32	999	Next
4	02T311269F	Synchronizer ring	999	Next
4	02T311269K	Synchronizer ring	999	Next
6	02T311301E	Synchronizing hub with locking collar	999	Next
6	02T311301F	Synchronizing hub with locking collar	999	Next
7	02T311311B	Spring	999	Next
8	84311313	Locking piece	999	Next
9	02T311145AM	Change gear Z=37	999	Next
12	02T311155A	Thrust washer 24X42X3	999	Next
13	02T398008	1 set circlips 2-2,4	999	Next
14	02T311375E	Roller sleeve 24,1X47X17,7	999	Next
14	02T311375K	Roller sleeve 24,1X47X17,7	999	Next
15		Mounting with groofed ball bearing	999	Next
16	085311431C	Needle bearing	999	Next
16	085311431J	Needle bearing	999	Next
17	02T311158AN	Change gear Z=45	999	Next
20	02U311241D	Synchronizing hub with locking collar	999	Next
20	02U311241E	Synchronizing hub with locking collar	999	Next
23	02U311132E	Needle bearing - 17,5X32X25	999	Next
24	02U311349R	Change gear Z=48	999	Next
26	02U311122E	Inner ring 25,5X43X20,5	999	Next
27	N91080001	Socket head collared bolt with inner multipoint head M10X1X45X25	999	Next
28		Mounting	999	Next
30	0AJ311503	Reverse gear idler spindle	999	Next
31	02T311529F	Reverse gear Z=24	999	Next
32	N91043701	Socket head bolt with inner multipoint head M8X40	999	Next
35		Clutch housing	999	Next
36		Gear housing	999	Next

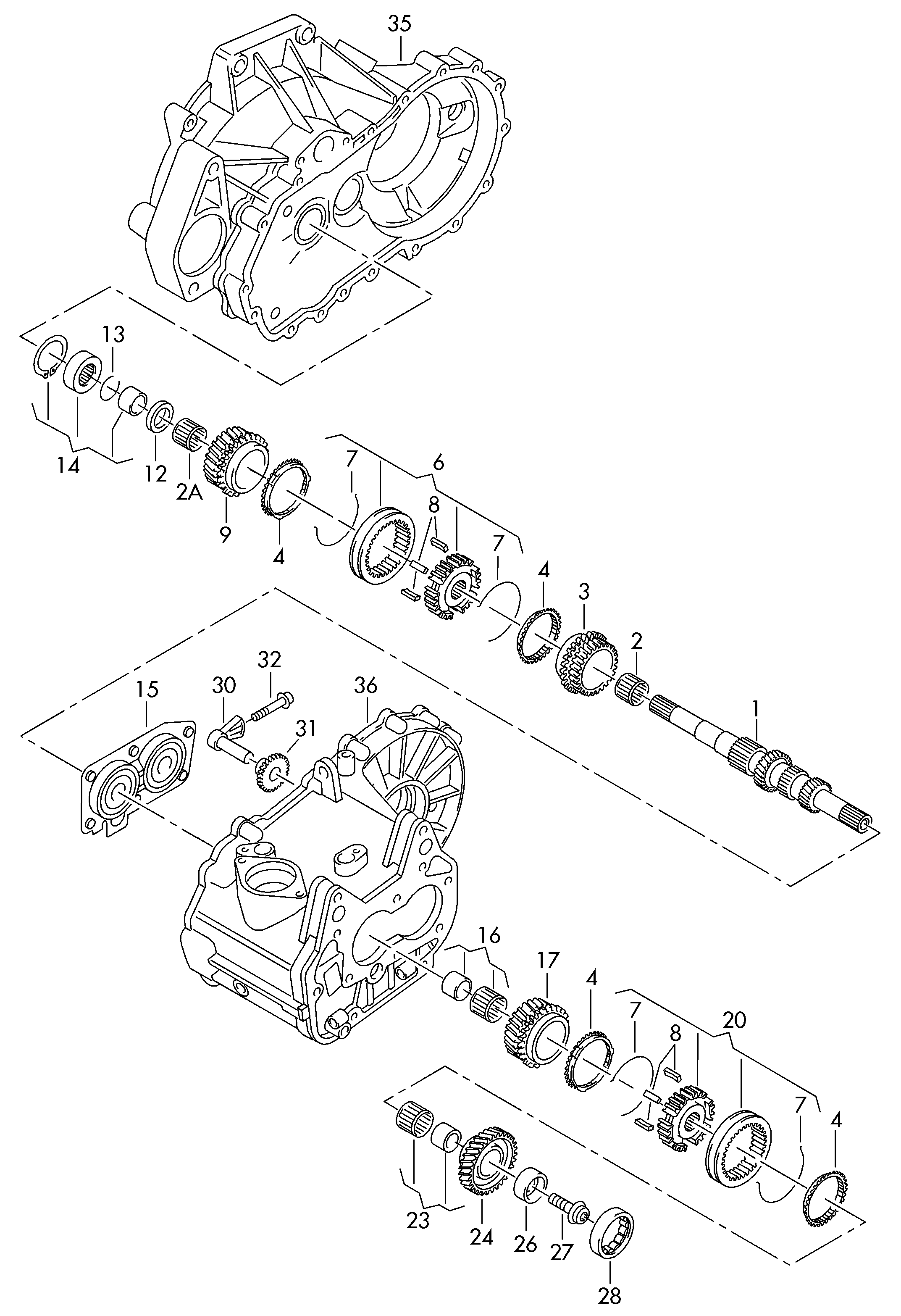

Scheme Gears and shafts, input shaft, for 6 speed manual gearbox LHY, LNY, NBW, NBX, PRG, PRJ Volkswagen Golf Plus 2012-2014 EUR
