Gears and shafts, input shaft, for 6 speed manual gearbox LHD, NFP Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02T311373J	Roller sleeve 55X32X18	999	Next
1	02T311373L	Roller sleeve 55X32X18	999	Next
2	02M311101BH	Input shaft	999	Next
2	02M311101EA	Input shaft	999	Next
3	02M311235J	Grooved ball bearing 30X72X27	999	Next
3	02M311235K	Grooved ball bearing 30X72X27	999	Next
4	0A5398152	1 set circlips 2,0-2,27	999	Next
5	02M398008	1 set circlips 1,79-1,98	999	Next
6		Adjusting washer not for this model	999	Next
7		Adjusting washer not for this model	999	Next
10	02M311509R	Reverse gear idler spindle Z=36+14	999	Next
11	02M311517	Thrust washer 25,1X45X3,5	999	Next
12	02M311523A	Needle bush 25X37+50X22,5	999	Next
13		Clutch housing	999	Next
14		Gear housing	999	Next

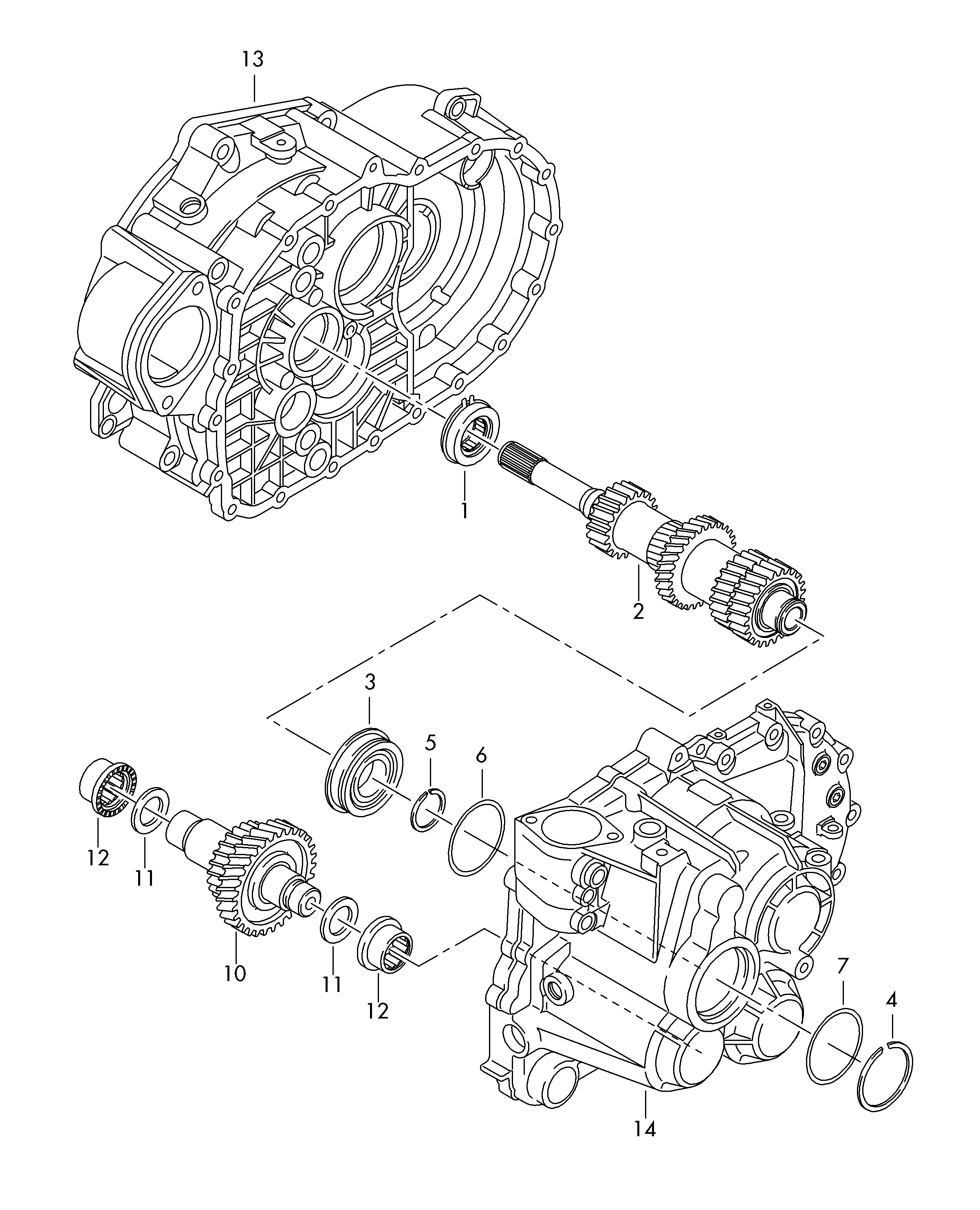

Scheme Gears and shafts, input shaft, for 6 speed manual gearbox LHD, NFP Volkswagen Golf Plus 2012-2014 EUR
