Gears and shafts, input shaft, for 6 speed manual gearbox KWB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02S311103E	Input shaft Z=9+17	999	Next
2	085311123N	Taper roller bearing 22X45X16,6	999	Next
3	02A311285BA	Gear Z=25	999	Next
4	02A311321	Securing ring 30,8X2,5	999	Next
5	02A311351AQ	Gear Z=34	999	Next
6	02A311123E	Taper roller bearing 30X68,5X17,2	999	Next
7	02A398140	1 set shims 0,65-1,27	999	Next
8	02A311155A	Thrust washer 9,2X49X2,5	999	Next
9	02A311115E	Needle bearing - 29X40X24	999	Next
10	02S311158AB	Change gear Z=42	999	Next
11	02M311295E	Synchronizer ring	999	Next
11	02S311295A	Synchronizer ring	999	Next
11A	02J311387B	Wave spring washer	999	Next
12	02S311241C	Synchronizing hub with locking collar	999	Next
13	02F311336	Spring	999	Next
14	84311313	Locking piece	999	Next
15	02S311228C	Needle bearing - 26X40X24	999	Next
16	02S311158AC	Change gear Z=45	999	Next
17		Adjusting washer not for this model	999	Next
18	02S311375E	Roller sleeve 25X47X21	999	Next
19	WHT002211	Hex socket head collared bolt M10X1X35	999	Next
20	0A4311515	Reverse gear shaft	999	Next
21	02A311531Q	Sliding wheel for reverse gear Z=20	999	Next
22	N90982401	Snap ring 20	999	Next
23	0A4311507	Intermediate wheel Z=18	999	Next
24	02A311523B	Needle bush 15X21X18	999	Next
25	0A4311514A	Support reverse gear shaft	999	Next
26	N90462503	Oval hexagon socket head bolt M8X32	999	Next
26A	N90950603	Socket head bolt with inner multipoint head M8X38	999	Next
27	N90536201	Hexagon socket head bolt M8X26	999	Next
30		Gear housing	999	Next

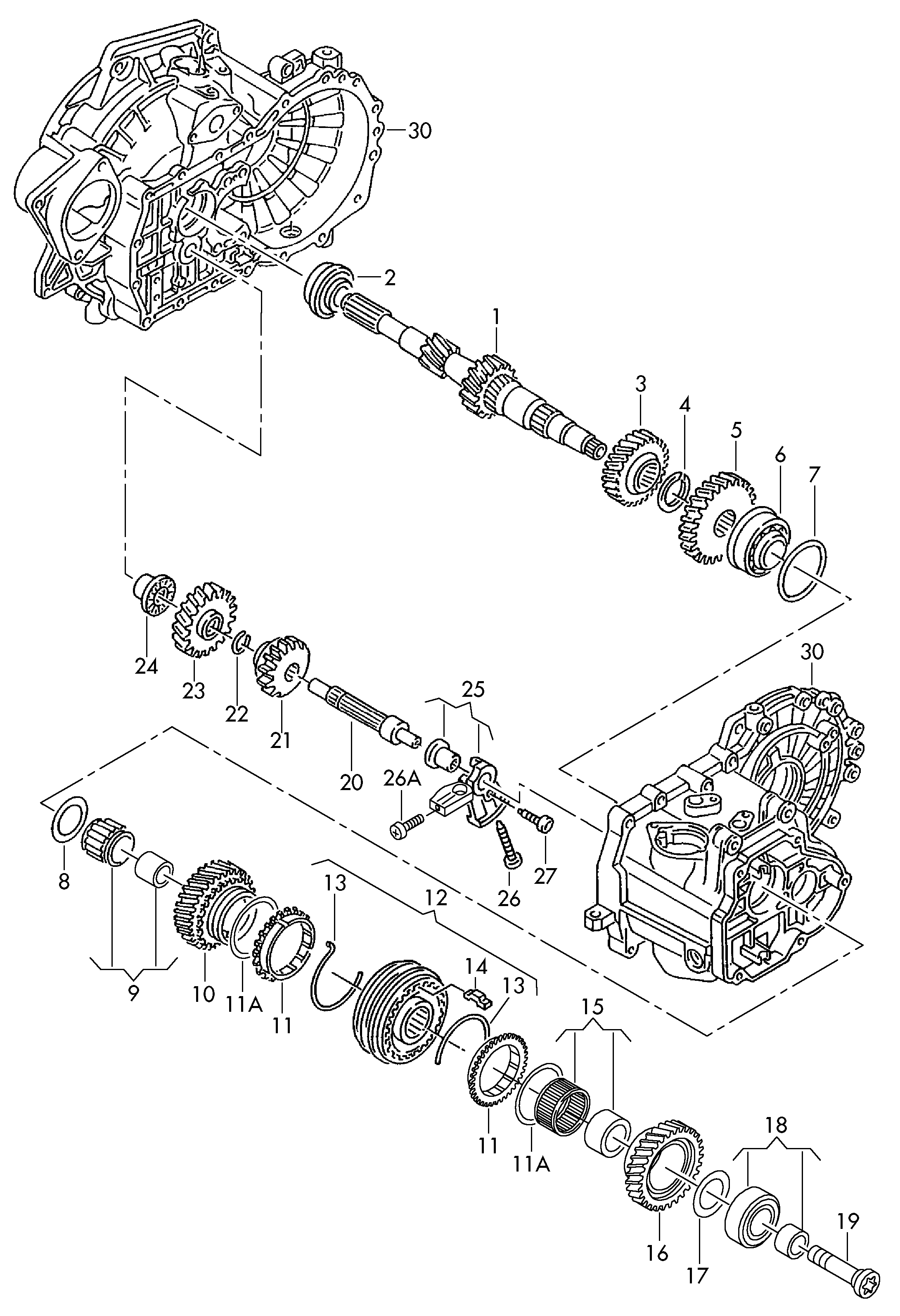

Scheme Gears and shafts, input shaft, for 6 speed manual gearbox KWB Volkswagen Golf Plus 2012-2014 EUR
