Gears and shafts, input shaft, for 6 speed manual gearbox, four-wheel drive QCR Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02T311373M	Roller sleeve 55X32X18	999	Next
1	02M311101AF	Input shaft	999	Next
1	02M311101ER	Input shaft	999	Next
1	02M311235K	Grooved ball bearing	999	Next
1	02M311235L	Grooved ball bearing	999	Next
1	0A5398152	1 set circlips 2,0-2,27	999	Next
1	02M398008	1 set circlips 1,79-1,98	999	Next
1		Compensation washer not for this model	999	Next
1		Compensation washer not for this model	999	Next
1	02M311509R	Reverse gear idler spindle Z=36+14	999	Next
1	02M311517	Thrust washer 25,1X45X3,5	999	Next
1	02M311523A	Needle bush 25X37+50X22,5	999	Next
1		Clutch housing	999	Next
1		Gear housing	999	Next

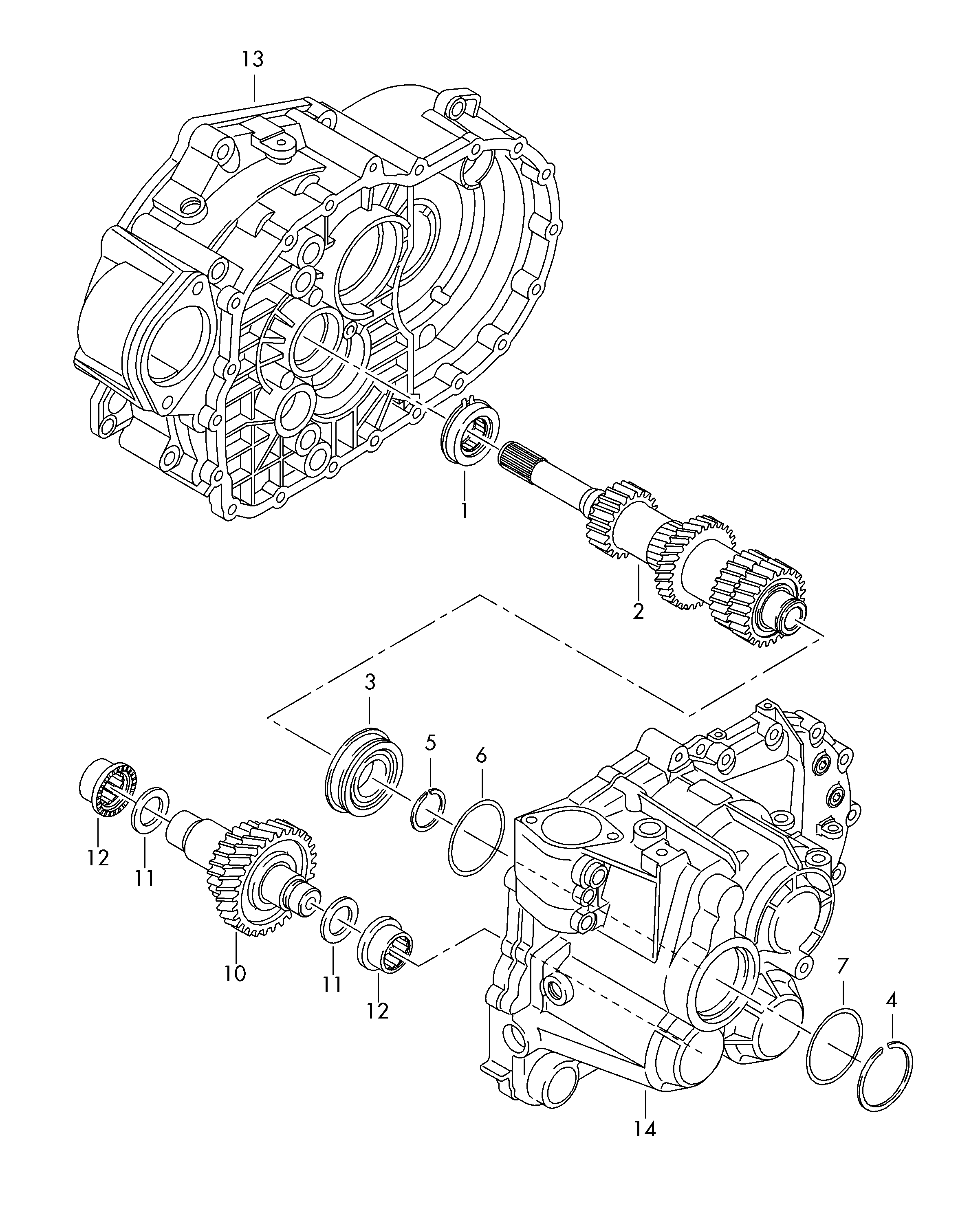

Scheme Gears and shafts, input shaft, for 6 speed manual gearbox, four-wheel drive QCR Volkswagen Tiguan 2010-2017 EUR
