Gears and shafts, input shaft, for 5 speed manual transmiss. MHV Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02T311103AJ	Input shaft Z=13+22	999	Next
2	02T311265C	Needle bearing - 30,5X35,5X26,5	999	Next
3	02T311129AJ	Change gear Z=32	999	Next
4	02T311269F	Synchronizer ring	999	Next
5	02T311269G	Synchronizer ring	999	Next
6	02T311301E	Synchronizing hub with locking collar	999	Next
6	02T311301F	Synchronizing hub with locking collar	999	Next
7	02T311311B	Spring	999	Next
8	84311313	Locking piece	999	Next
9	02T311145AJ	Change gear Z=42	999	Next
10	02T311132A	Needle bearing - 24,3X35,5X26,3	999	Next
10	02T311132F	Needle bearing - 24,3X35,5X26,3	999	Next
12	02T311155A	Thrust washer 24X42X3	999	Next
13	02T398008	1 set circlips 2-2,4	999	Next
14	02T311375E	Roller sleeve 24,1X47X17,7	999	Next
14	02T311375K	Roller sleeve 24,1X47X17,7	999	Next
15		Mounting with groofed ball bearing	999	Next
16	085311431C	Needle bearing	999	Next
16	085311431J	Needle bearing	999	Next
17	02T311158AT	Change gear Z=52	999	Next
20	02T311241F	Synchronizing hub with locking collar also use: 02T 311 269 G	999	Next
20	02T311241E	Synchronizing hub with locking collar also use: 02T 311 269 G	999	Next
21	020311331B	Stop ring	999	Next
22	85398008	1 set circlips 2-2,6	999	Next
23	0AJ311503	Reverse gear idler spindle	999	Next
24	02T311529F	Reverse gear Z=24	999	Next
25	N91043701	Socket head bolt with inner multipoint head M8X40	999	Next
30		Clutch housing	999	Next
31		Gear housing	999	Next

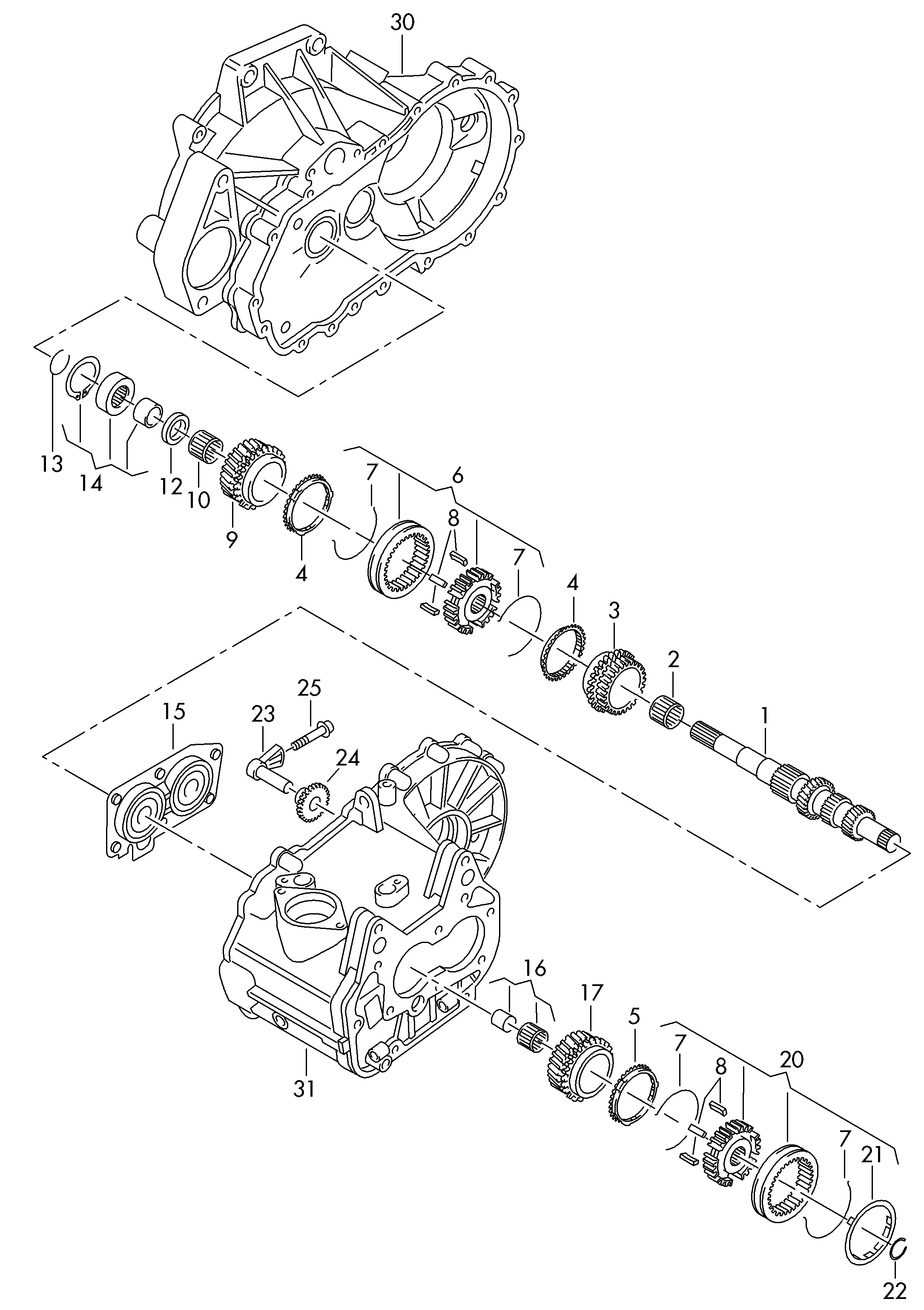

Scheme Gears and shafts, input shaft, for 5 speed manual transmiss. MHV Volkswagen Golf Plus 2012-2014 EUR
