Gear housing, for 6 speed manual gearbox LQU, LXM, NFZ, QKP Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02Q301107AF	Clutch housing also use: 02Q 301 561	999	Next
1	02Q301107AE	Clutch housing also use: 02Q 301 561	999	Next
1	02Q301107AJ	Clutch housing also use: 02Q 301 561	999	Next
1	02M301189G	O-ring 60X74,3X8	999	Next
1	02M311113A	Shaft oil seal 28,3X42,28X7	999	Next
1	WHT004842	Hexagon socket flat head bolt M9X55	999	Next
1	WHT005631B	Hexagon socket flat head bolt M9X55	999	Next
1	02M301153A	Dowel sleeve 12X9,5	999	Next
1	0A5301374	Bush	999	Next
1	084301143A	Magnet	999	Next
1	02Q301561	Threaded insert M10X25	999	Next
1	02T906207A	Sender for gearbox neutral position	999	Next
1	02T906207D	Sender for gearbox neutral position	999	Next
1	N 90898007	Socket head bolt with inner multipoint head M6X16	999	Next
1	02Q301103P	Gear housing	999	Next
1	02Q301103AA	Gear housing	999	Next
1	N 90925601	End cap 15	999	Next
1		Retaining sleeve	999	Next
1	02Q301211	End cap 45	999	Next
1	N 10037105	Sealing plug M22X1,5	999	Next
1		O-ring not for this model	999	Next
1	02T945415P	Switch for reversing light	999	Next
1	02M301211D	End cap	999	Next
1	02M301211D	End cap	999	Next
1	02Q301211A	End cap	999	Next
1	02M301211D	End cap	999	Next
1	02Q311187	Securing ring 90,5X2	999	Next
1	02Q311187	Securing ring 90,5X2	999	Next
1	02Q311187	Securing ring 90,5X2	999	Next
1		Detent pin	999	Next
1		Locking screw	999	Next
1	02M301189G	O-ring 60X74,3X8	999	Next
1	WHT004842	Hexagon socket flat head bolt M9X55	999	Next
1	WHT005631B	Hexagon socket flat head bolt M9X55	999	Next
1	AMV18820003	Sealing compound paste 100G	999	Next
1	G 052128A1	Sealing grease for radial shaft oil seal 50G	999	Next

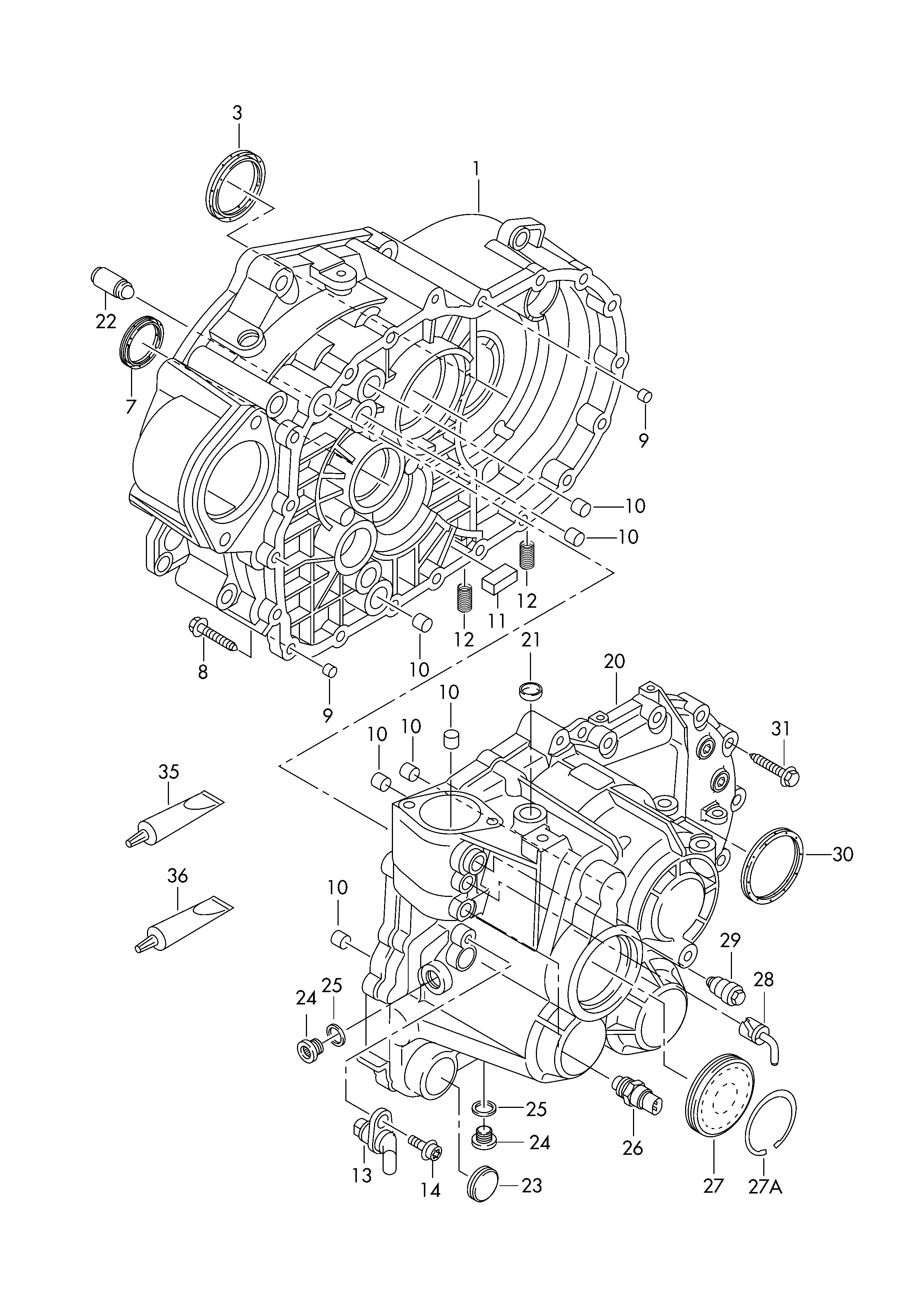

Scheme Gear housing, for 6 speed manual gearbox LQU, LXM, NFZ, QKP Volkswagen Tiguan 2010-2017 EUR
