Gear housing, for 6 speed manual gearbox LHY, LNY, NBW, NBX, PRG, PRJ Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0AJ301107	Clutch housing	999	Next
1	0AJ301107A	Clutch housing	999	Next
2		Shaft oil seal	999	Next
3	WHT001937	Sealing plug M24X1,5	999	Next
4	N10530303	Socket head collared bolt with inner multipoint head M6X55	999	Next
6		Bungs not for this model	999	Next
7		Ball stud	999	Next
8	02T311113A	Shaft oil seal 24X38X6	999	Next
9	084301143A	Magnet	999	Next
10	0AJ301103B	Gear housing	999	Next
11	02T301279	Oil drip tray	999	Next
12	02T301288	Oil guide	999	Next
13	02M301153A	Dowel sleeve 12X9,5	999	Next
14	02T945415P	Switch for reversing light	999	Next
15		End cap	999	Next
16	02U301201C	Gearbox cover	999	Next
17	N10530403	Socket head collared bolt with inner multipoint head M6X38	999	Next
20	AMV18820003	Sealing compound paste 100G	999	Next
21	02T906207A	Sender for gearbox neutral position	999	Next
21	02T906207D	Sender for gearbox neutral position	999	Next
22	N90898007	Socket head bolt with inner multipoint head M6X16	999	Next

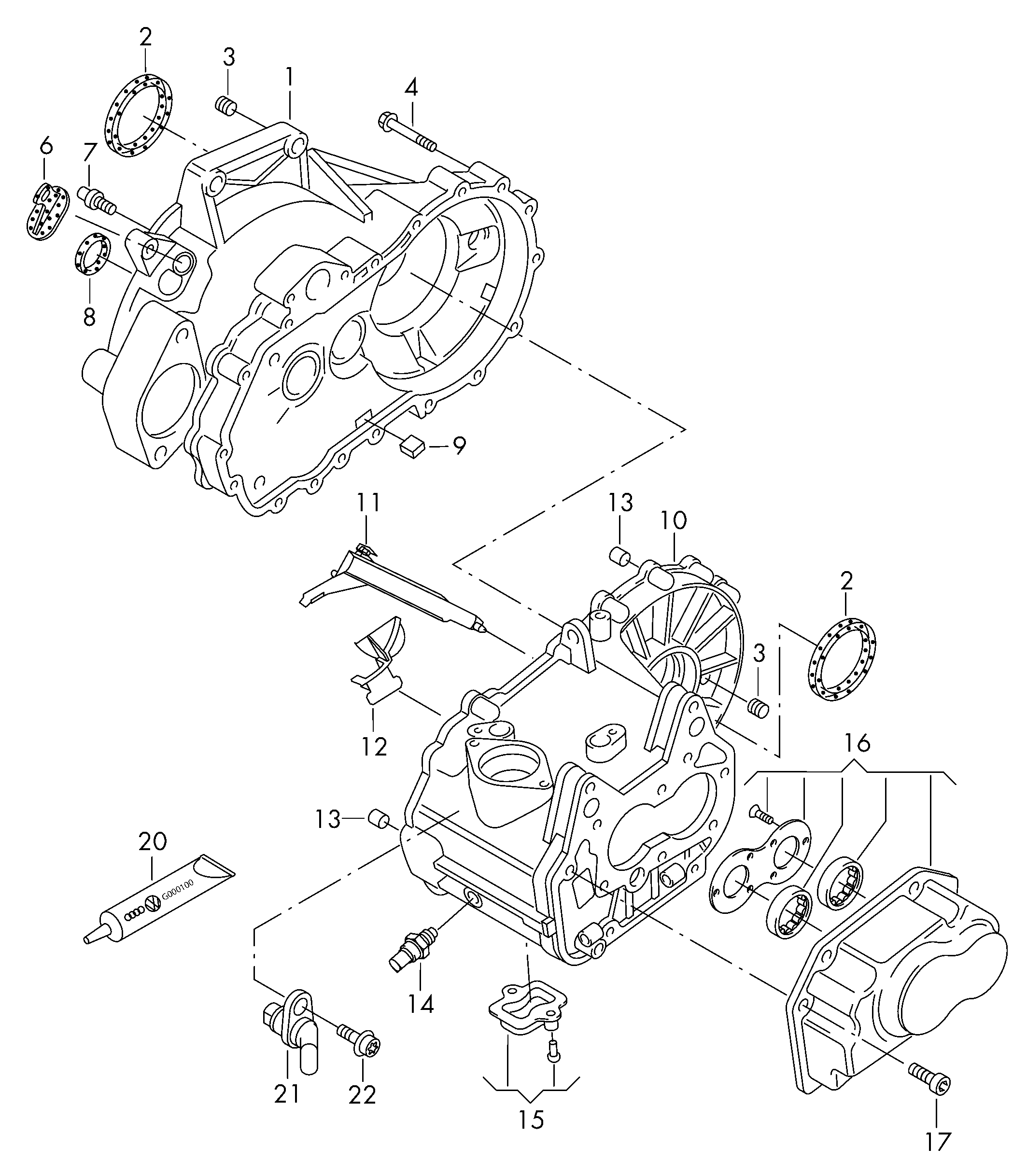

Scheme Gear housing, for 6 speed manual gearbox LHY, LNY, NBW, NBX, PRG, PRJ Volkswagen Golf Plus 2012-2014 EUR
