Gear housing, for 6 speed manual gearbox LHD, NFP Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02Q301107AA	Clutch housing also use: 02Q 301 561 A	999	Next
3	02M301189G	O-ring 60X74,3X8	999	Next
7	02M311113A	Shaft oil seal 28,3X42,28X7	999	Next
8	WHT005631B	Hexagon socket flat head bolt M9X55	999	Next
8	WHT004842	Hexagon socket flat head bolt M9X55	999	Next
9	02M301153A	Dowel sleeve 12X9,5	999	Next
10	0A5301374	Bush	999	Next
11	084301143A	Magnet	999	Next
12	02Q301561A	Threaded insert M10X29	999	Next
13	02T906207A	Sender for gearbox neutral position	999	Next
13	02T906207D	Sender for gearbox neutral position to be used for item: 20	999	Next
14	N90898007	Socket head bolt with inner multipoint head to be used for item: M6X16 20	999	Next
20	02Q301103P	Gear housing	999	Next
20	02Q301103AA	Gear housing	999	Next
21	N90925601	End cap 15	999	Next
22		Retaining sleeve	999	Next
23	02Q301211	End cap 45	999	Next
24	N10037105	Sealing plug M22X1,5	999	Next
25		O-ring not for this model	999	Next
26	02T945415P	Switch for reversing light	999	Next
27	02M301211D	End cap	999	Next
27	02M301211D	End cap	999	Next
27	02Q301211A	End cap	999	Next
27	02M301211D	End cap	999	Next
27A	02Q311187	Securing ring 90,5X2	999	Next
27A	02Q311187	Securing ring 90,5X2	999	Next
27A	02Q311187	Securing ring 90,5X2	999	Next
28		Detent pin	999	Next
29		Locking screw	999	Next
30	02M301189G	O-ring 60X74,3X8	999	Next
31	WHT005631B	Hexagon socket flat head bolt M9X55	999	Next
31	WHT004842	Hexagon socket flat head bolt M9X55	999	Next
35	AMV18820003	Sealing compound paste 100G	999	Next
36	G052128A1	Sealing grease for radial shaft oil seal 50G	999	Next

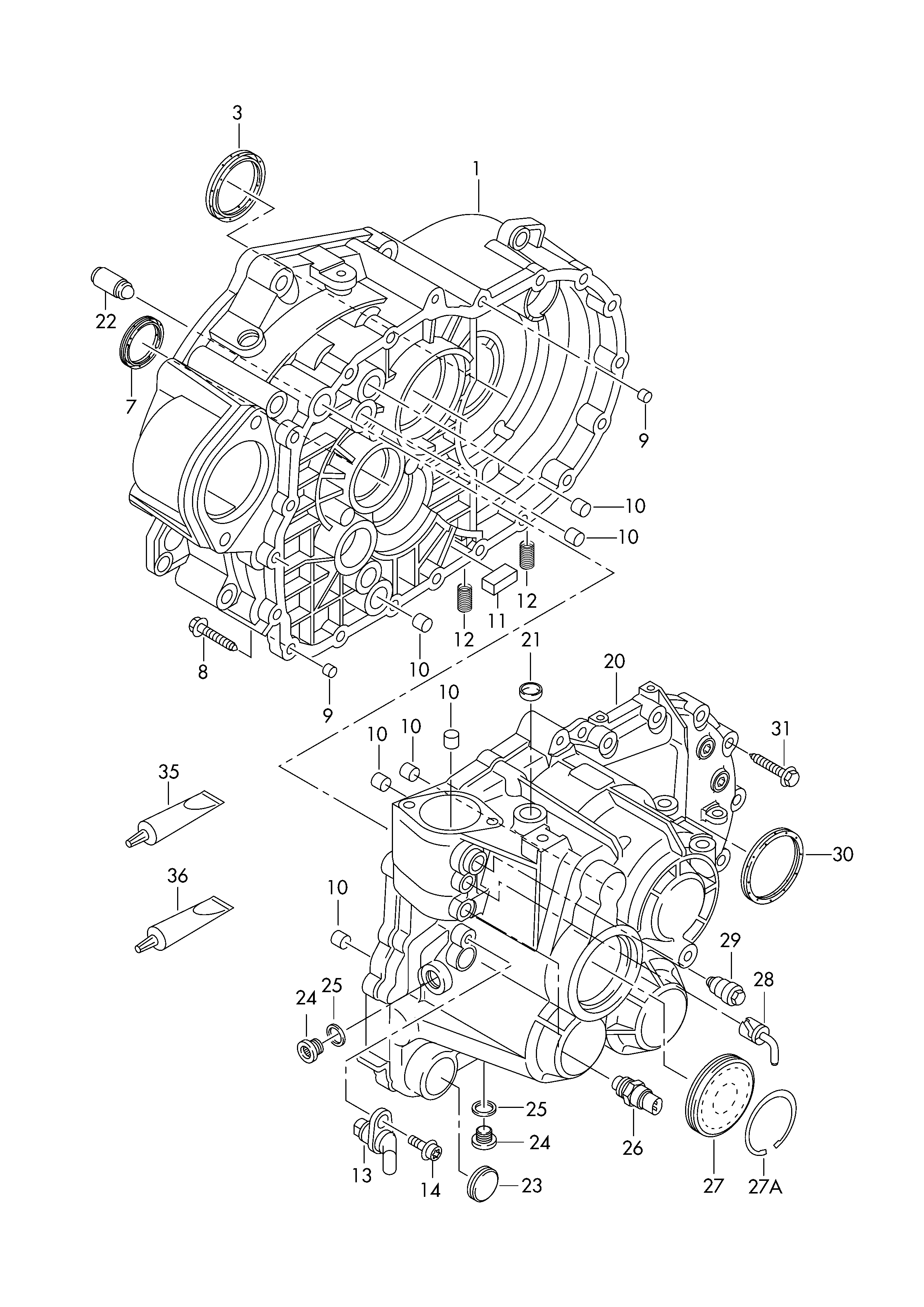

Scheme Gear housing, for 6 speed manual gearbox LHD, NFP Volkswagen Golf Plus 2012-2014 EUR
