Gear housing, for 6 speed manual gearbox KWB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A4301107J	Clutch housing	999	Next
3	02M301153A	Dowel sleeve 12X9,5	999	Next
4		Shaft oil seal	999	Next
5	WHT001937	Sealing plug M24X1,5	999	Next
6	084301143A	Magnet	999	Next
6A	WHT005252	Retaining clip	999	Next
7	85311113	Shaft oil seal 21,8X35X7	999	Next
8		Guide sleeve	999	Next
9		Sender for gearbox neutral position not for this model	999	Next
10		Round hd. screw not for this model	999	Next
11	0A4301103G	Gear housing	999	Next
12	0A4301134A	Oil guide	999	Next
13	WHT005480	Hex collared bolt M8X60	999	Next
14	02S301211J	Gearbox cover	999	Next
15	N90991802	Socket head bolt with inner multipoint head M7X40	999	Next
16	AMV18820003	Sealing compound paste 100G	999	Next

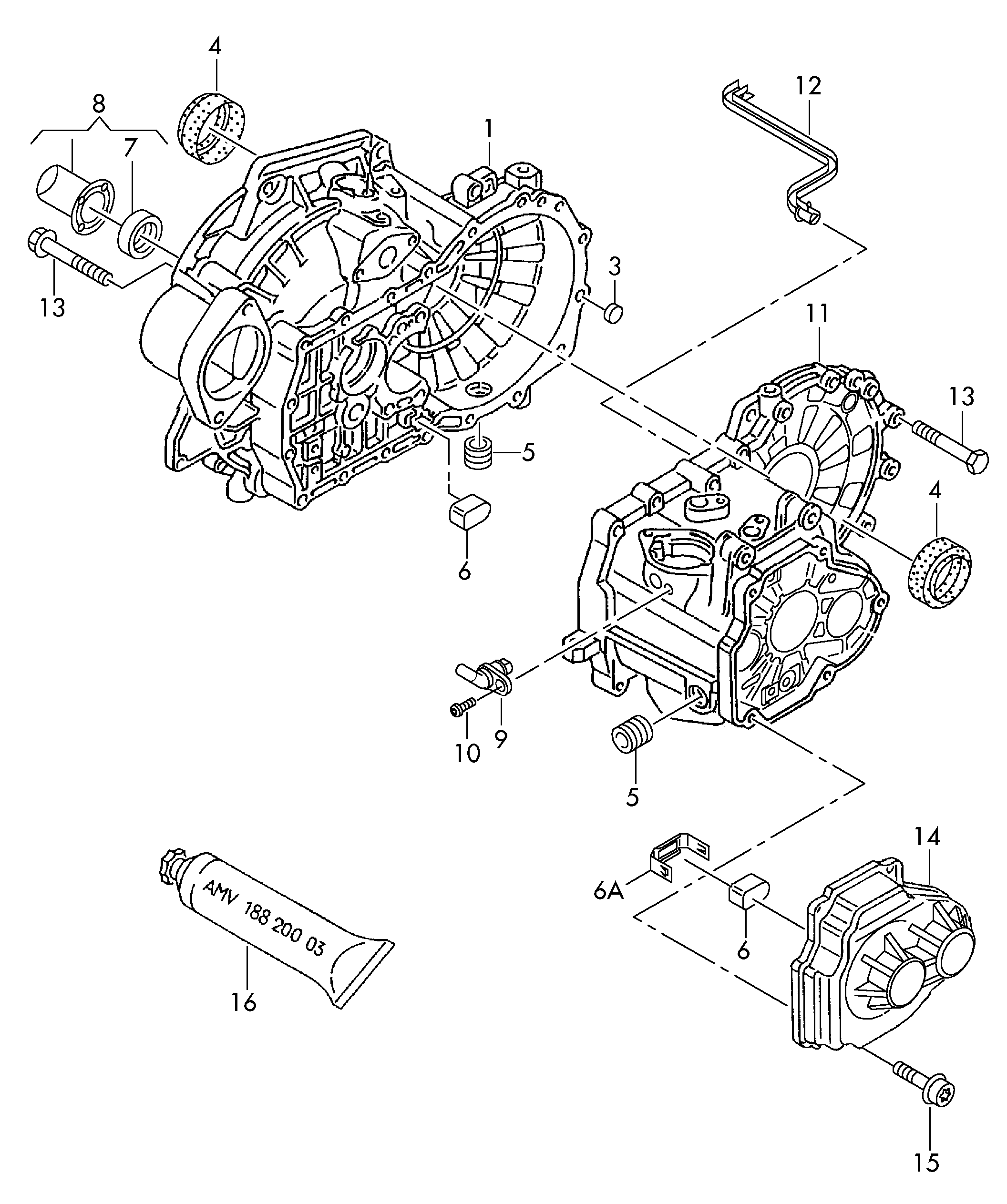

Scheme Gear housing, for 6 speed manual gearbox KWB Volkswagen Golf Plus 2012-2014 EUR
