Gear housing, for 5 speed manual transmiss. LEG, LVQ, NVU Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0AF301107B	Clutch housing	999	Next
1	0AF301107C	Clutch housing	999	Next
2		Shaft oil seal	999	Next
3	02T301192C	Sleeve	999	Next
4	WHT001937	Sealing plug M24X1,5	999	Next
5	N10530303	Socket head collared bolt with inner multipoint head M6X55	999	Next
7		Ball stud	999	Next
8	02T311113A	Shaft oil seal 24X38X6	999	Next
9	084301143A	Magnet	999	Next
10	02T301103AE	Gear housing 12X9,5	999	Next
-	02T906207A	Sender for gearbox neutral position	999	Next
15	02T301103AC	Gear housing 12X9,5	999	Next
13	02M301153A	Dowel sleeve 12X9,5	999	Next
14	02T945415P	Switch for reversing light	999	Next
16	020301153A	Dowel sleeve 12X9,5	999	Next
15		End cap	999	Next
16		Shaft oil seal	999	Next
20	02T301215H	Seal only for: 02T 301 211 D	999	Next
20	02T301215A	Seal only for: 02T 301 211 B	999	Next
21	02T301211D	Gearbox cover	999	Next
22	N10451411	Oval hexagon socket head bolt only for: M6X16 02T301211D	999	Next
22	N90897307	Socket head bolt with inner multipoint head only for: M6X20,5 02T301211B	999	Next
25	AMV18820003	Sealing compound paste 100G	999	Next
26	02T906207D	Sender for gearbox neutral position	999	Next
27	N90898007	Socket head bolt with inner multipoint head M6X16	999	Next

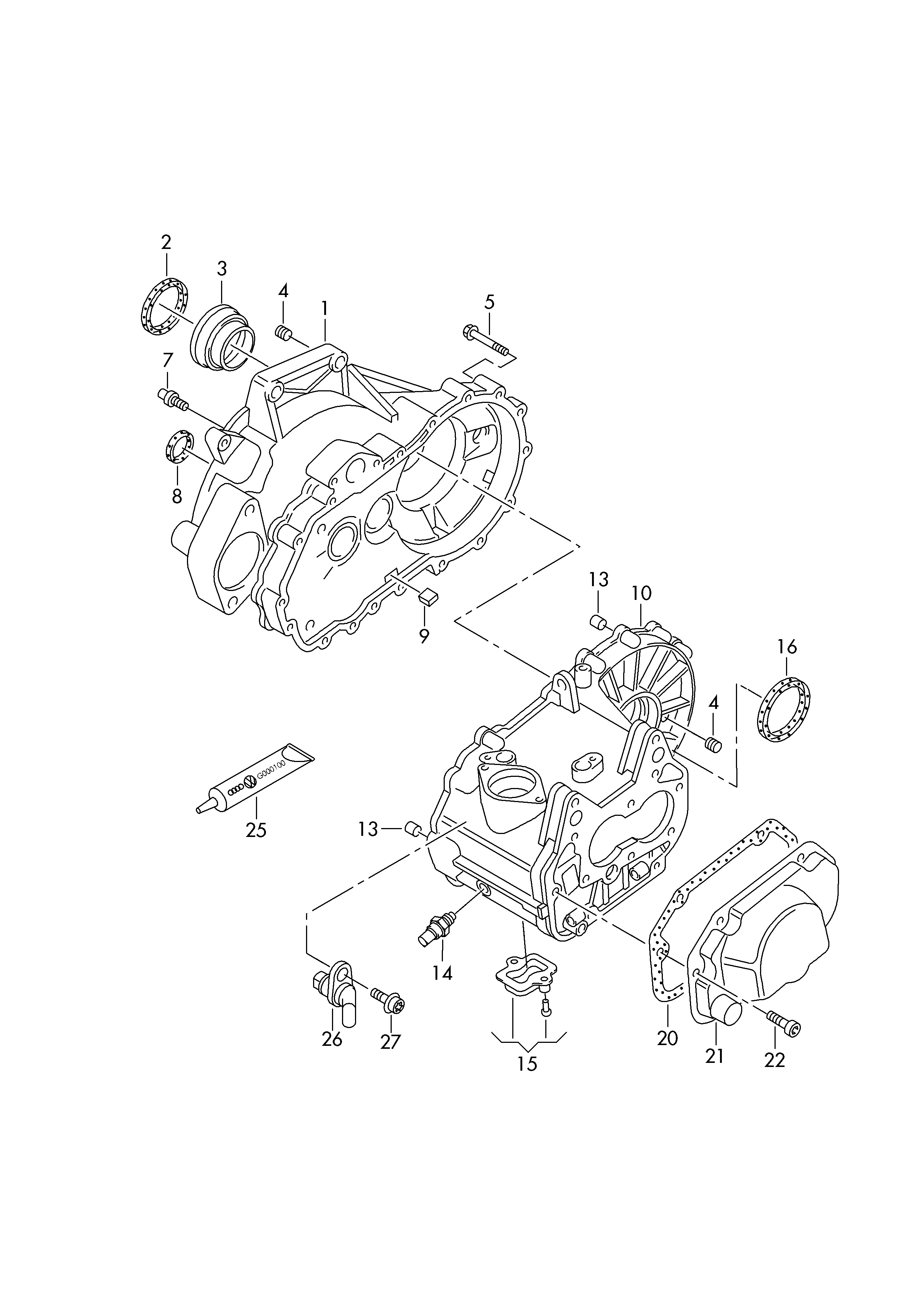

Scheme Gear housing, for 5 speed manual transmiss. LEG, LVQ, NVU Volkswagen Golf Plus 2012-2014 EUR
