Gear housing, for 5 speed manual transmiss. KQM, LHW, LUB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A4301107H	Clutch housing	999	Next
1	0A4301107AG	Clutch housing	999	Next
1	0A4301107L	Clutch housing	999	Next
2		Ball pin	999	Next
2		Ball pin	999	Next
3	02M301153A	Dowel sleeve 12X9,5	999	Next
4		Shaft oil seal	999	Next
5	WHT001937	Sealing plug M24X1,5	999	Next
6	084301143A	Magnet	999	Next
7	0A4301103F	Gear housing	999	Next
7	0A4301103H	Gear housing additionally to be used items: 10,11	999	Next
8	85311113	Shaft oil seal 21,8X35X7	999	Next
9		Guide sleeve	999	Next
9		Guide sleeve	999	Next
10	02T906207	Sender for gearbox neutral position G701	999	Next
11	N90638102	Round hd. screw M6X12	999	Next
12	0A4301134A	Oil guide	999	Next
15	WHT005480	Hex collared bolt M8X60	999	Next
16	02A301215A	Seal	999	Next
17	0A4301211B	Gearbox cover also use: 084 301 143 A	999	Next
18	N10143003	Hexagon bolt M7X20	999	Next
20	AMV18820003	Sealing compound paste 100G	999	Next

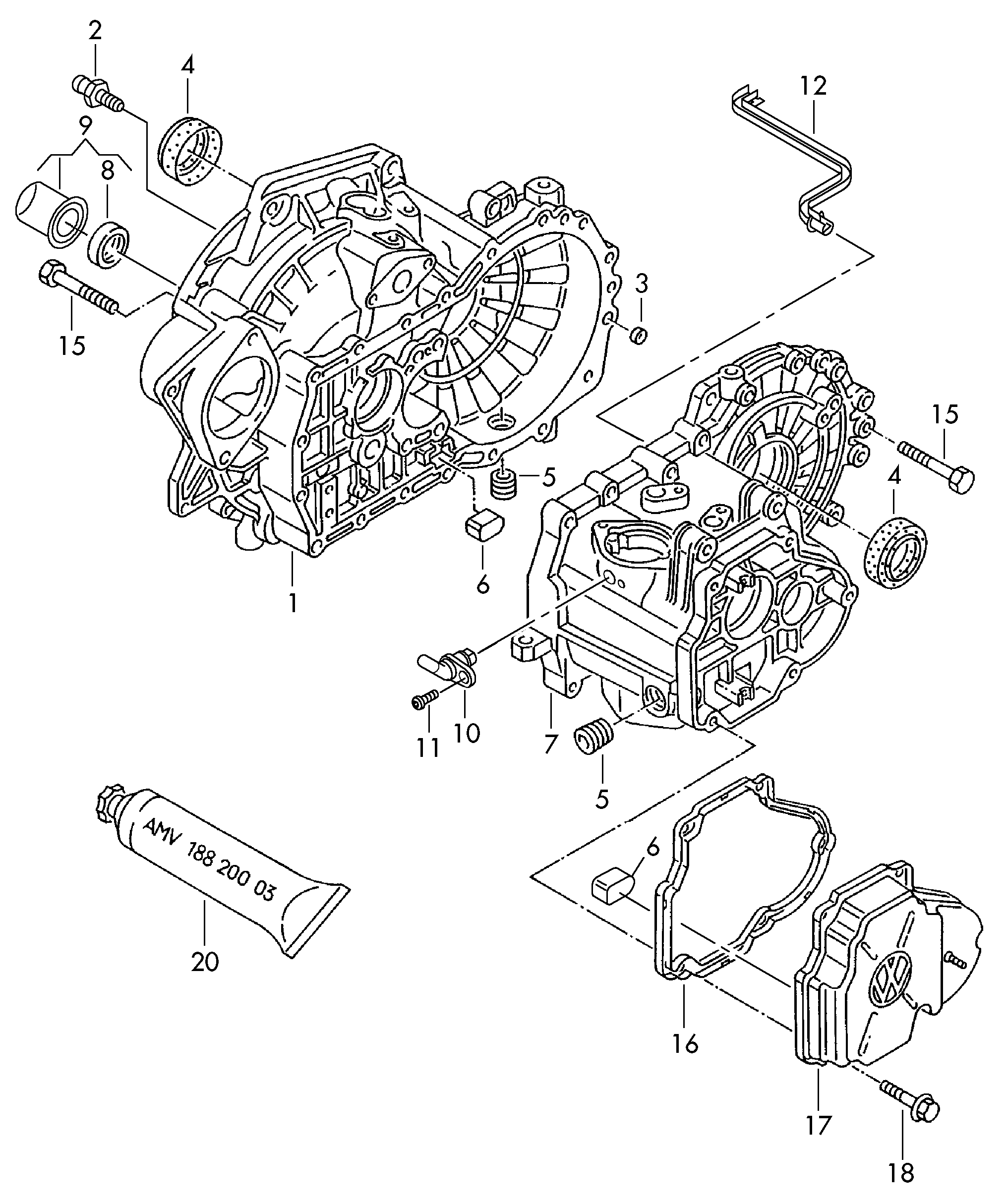

Scheme Gear housing, for 5 speed manual transmiss. KQM, LHW, LUB Volkswagen Golf Plus 2012-2014 EUR
