Gear housing, 6-speed manual transmission, for four-wheel drive LMX, LMV, LMU, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A6301107M	Clutch housing	999	Next
1	0A6301107AF	Clutch housing	999	Next
1	0A6301107L	Clutch housing	999	Next
1	0A6301107Q	Clutch housing	999	Next
1	0A6301107AE	Clutch housing	999	Next
1	09A409400A	Radial shaft seal 65X83X8	999	Next
1	02M301189G	O-ring 60X74,3X8	999	Next
1	0A5311113A	Shaft oil seal 30X46X8	999	Next
1	WHT005631B	Hexagon socket flat head bolt M9X55	999	Next
1	WHT004842A	Hexagon socket flat head bolt M9X55	999	Next
1	WHT005631B	Hexagon socket flat head bolt M9X55	999	Next
1	WHT004842A	Hexagon socket flat head bolt M9X55	999	Next
1	084301143A	Magnet	999	Next
1		Sliding sleeve	999	Next
1	02M301153A	Dowel sleeve 12X9,5	999	Next
1	02T906207A	Sender for gearbox neutral position	999	Next
1	02T906207D	Sender for gearbox neutral position	999	Next
1	N 90898007	Socket head bolt with inner multipoint head M6X16	999	Next
1	0A6301021G	Gear housing	999	Next
1	0A6301021M	Gear housing	999	Next
1	0A6301021S	Gear housing additionally to be used items: 8,9	999	Next
1	N 10037105	Sealing plug M22X1,5	999	Next
1	02M301211D	End cap 84,5	999	Next
1	0A5301159	Retaining plate	999	Next
1	N 10680801	Hexagon socket flat head bolt M5X10	999	Next
1	0A5301374	Bush	999	Next
1	AMV18820003	Sealing compound paste 100G	999	Next
1	G 052128A1	Sealing grease for radial shaft oil seal 50G	999	Next
1		Release bearing	999	Next
1		Release bearing	999	Next
1	02T945415P	Switch for reversing light	999	Next

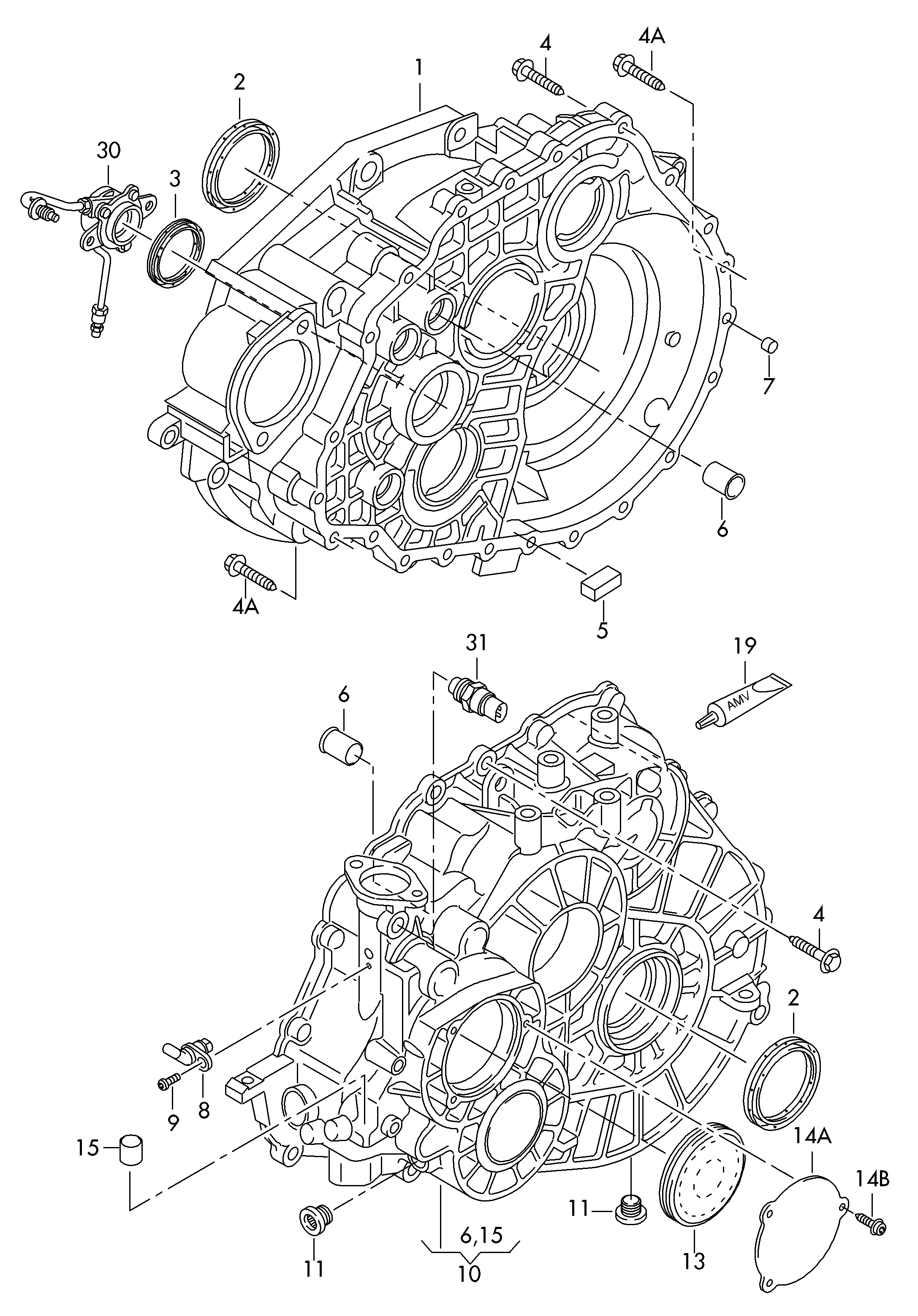

Scheme Gear housing, 6-speed manual transmission, for four-wheel drive LMX, LMV, LMU, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR
