Gear housing, 5-speed manual transmission MHV Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0AJ301107	Clutch housing	999	Next
2		Shaft oil seal	999	Next
3	WHT001937	Sealing plug M24X1,5	999	Next
4	N10530303	Socket head collared bolt with inner multipoint head M6X55	999	Next
6		Bungs not for this model	999	Next
7		Ball stud	999	Next
8	02T311113A	Shaft oil seal 24X38X6	999	Next
9	084301143A	Magnet	999	Next
10	0AJ301103B	Gear housing	999	Next
11	02T301279	Oil drip tray	999	Next
12	02T301288	Oil guide	999	Next
13	02M301153A	Dowel sleeve 12X9,5	999	Next
14	02T945415P	Switch for reversing light	999	Next
15		End cap	999	Next
16	02T301215A	Seal only for: 02T 301 211 B	999	Next
16	02T301215H	Seal only for: 02T 301 211 D	999	Next
17	02T301211D	Gearbox cover	999	Next
18	N90897307	Socket head bolt with inner multipoint head only for: M6X20,5 02T301211B	999	Next
18	N10451411	Oval hexagon socket head bolt only for: M6X16 02T301211D	999	Next
20	AMV18820003	Sealing compound paste 100G	999	Next

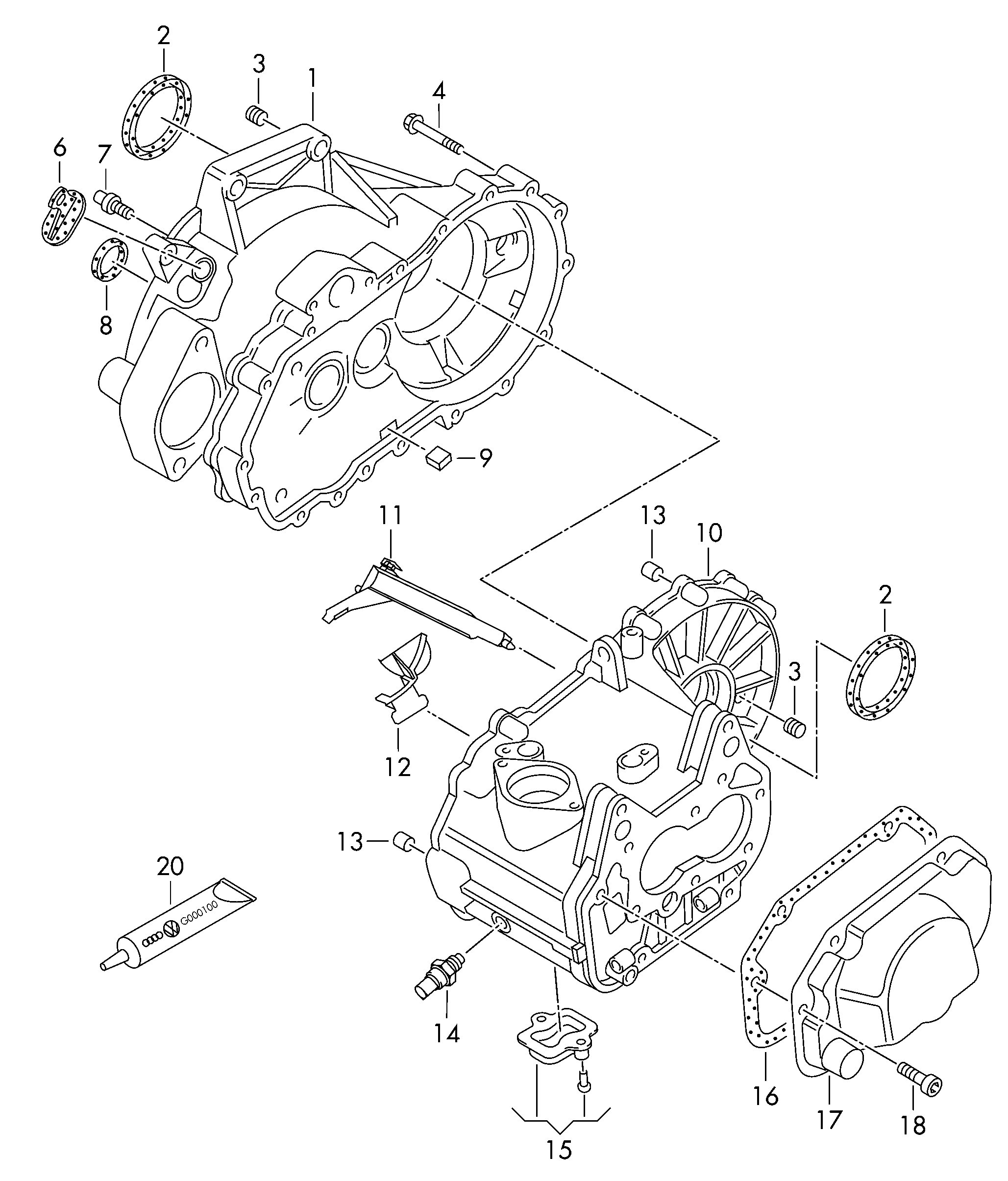

Scheme Gear housing, 5-speed manual transmission MHV Volkswagen Golf Plus 2012-2014 EUR
