Gas supply system, additional fuel tank, fuel filler neck, gas line 1.6ltr. petrol eng.+, autogas lpg+, CHGA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	JNV201095H	Gas tank with display unit N495,G707	999	Next
2	N0195307	Hex collared bolt M8X25	999	Next
3	N10626602	Hex collared bolt M8X30	999	Next
4	N90761103	Hexagon collar nut M8	999	Next
5	4F0611853A	Spacer ring 10,5X6X50	999	Next
6	N10300103	Clamp 10X20	999	Next
7	N10258001	Clamp 30-45X9X0,5	999	Next
8	1J0201254A	Bungs	999	Next
9	N10673701	Hexagon socket flat head bolt 4,2X9,5	999	Next
12		Display unit	999	Next
13	JNV201192	Cover	999	Next
18	JNV201820	Corrugated pipe shorten by: 32X950 50MM	999	Next
19	JNV201841A	Corrugated pipe 32X250	999	Next
20	JNV201287A	Connection piece 8MM	999	Next
21	JNV201287	Connection piece 6MM	999	Next
23	JNV201419C	Gas line stainless steel 953MM D=8MM	999	Next
24	JNV201417A	Gas line stainless steel 1075MM D=8MM	999	Next
25	JNV201372	Holder for filler pipe	999	Next
26	N0221544	Hexagon nut, self-locking M5	999	Next
27	N10586401	Oval hexagon socket head bolt M5X10	999	Next
28	6R0201174	O-ring 10,2X1,5	999	Next
29	JNV201595B	Fuel filler neck gas tank	999	Next
30	3C0201579	Cap closure	999	Next
31	8K0611797D	Clip	999	Next
32	JNV201420E	Gas line stainless steel 257MM D=6MM	999	Next
33	JNV201418C	Gas line stainless steel 761MM D=6MM	999	Next
34	JNV201418A	Gas line stainless steel 1043MM D=6MM	999	Next
35	JNV201418	Gas line stainless steel 2116MM D=6MM	999	Next
36		Evaporator	999	Next
37	33D201382A	Connecting piece 8MM	999	Next
38	6R0201232	Pocket adapter	999	Next
39	33D201382	Connecting piece 6MM	999	Next
40	6R0201986	Adapter fuel filler neck ACME	999	Next
41	6R0201986A	Adapter fuel filler neck DISH	999	Next
42	6R0201986B	Adapter fuel filler neck BAJONETT	999	Next
43	6R0201986C	Adapter fuel filler neck EURONOZZLE	999	Next

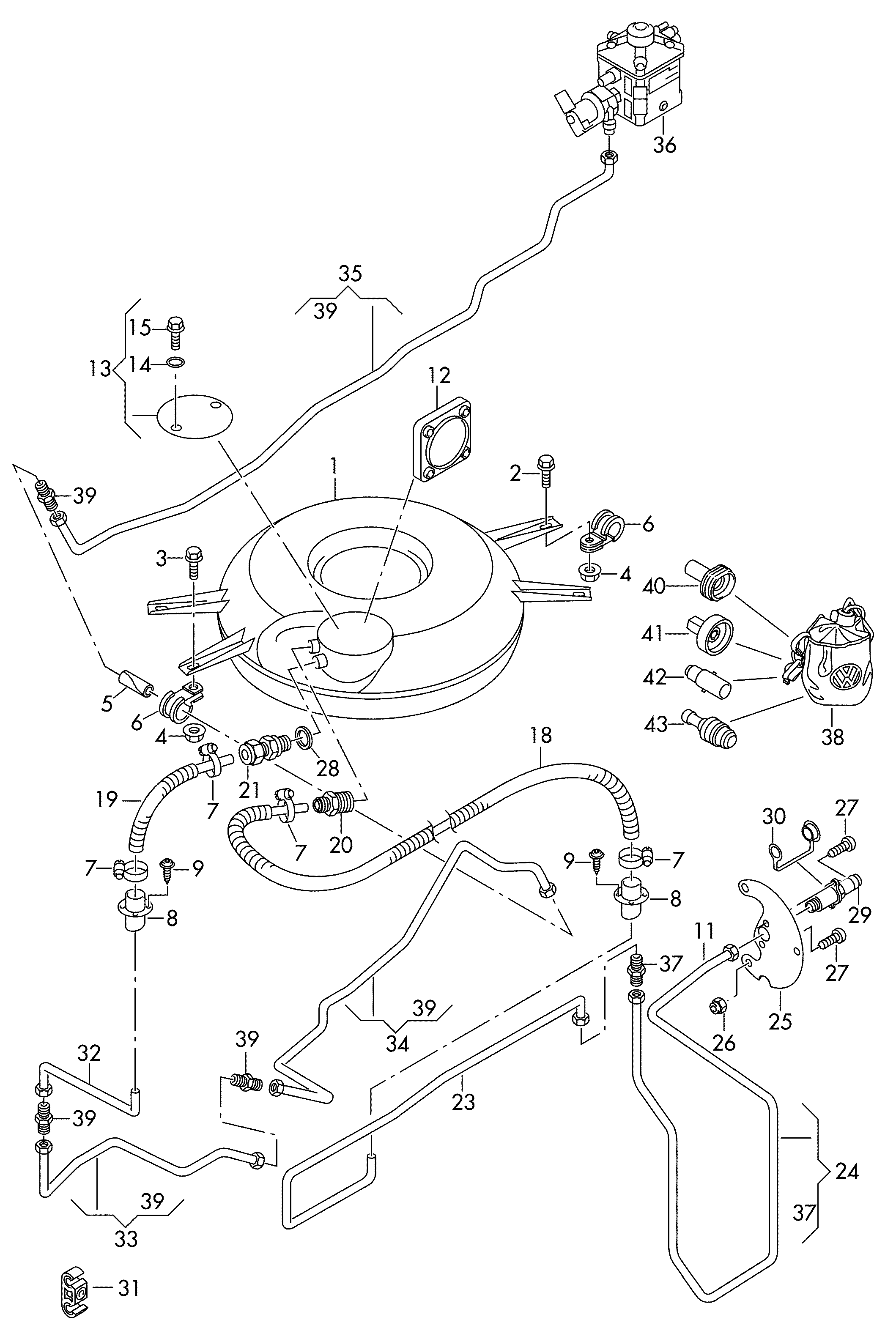

Scheme Gas supply system, additional fuel tank, fuel filler neck, gas line 1.6ltr. petrol eng.+, autogas lpg+, CHGA Volkswagen Golf Plus 2012-2014 EUR
