Fuel tank with, attachments diesel engine Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0201060DQ	Fuel tank	999	Next
2	1K0201375	Union nut bayonet catch	999	Next
3		O-ring see	999	Next
4		Fuel delivery module	999	Next
5	1K0201293D	Fuel line	999	Next
6	1K0201294C	Fuel line	999	Next
7	1K0201993M	Breather line	999	Next
8		Not for this model	999	Next
9	1K0201607AD	Extraction unit with metering pump for vehicles with auxiliary heater	999	Next
10	1J0201142A	Earth line	999	Next
11	1K0201557A	O-ring	999	Next
12	1K0201550AG	Cap with retaining strap for fuel tank	999	Next
12	5C0201550AB	Cap with retaining strap for fuel tank	999	Next
14	1Q0201307C	Heat shield plate	999	Next
15	N90335005	Clamping washer 5X30	999	Next
16	N10192402	Hexagon head bolt (combi) M6X20	999	Next
17	1K0201656C	Tensioning strap	999	Next
18	N10416003	Hexagon head bolt (combi) M8X25	999	Next
18	N0195307	Hex collared bolt M8X25	999	Next
19		Fuel line	999	Next

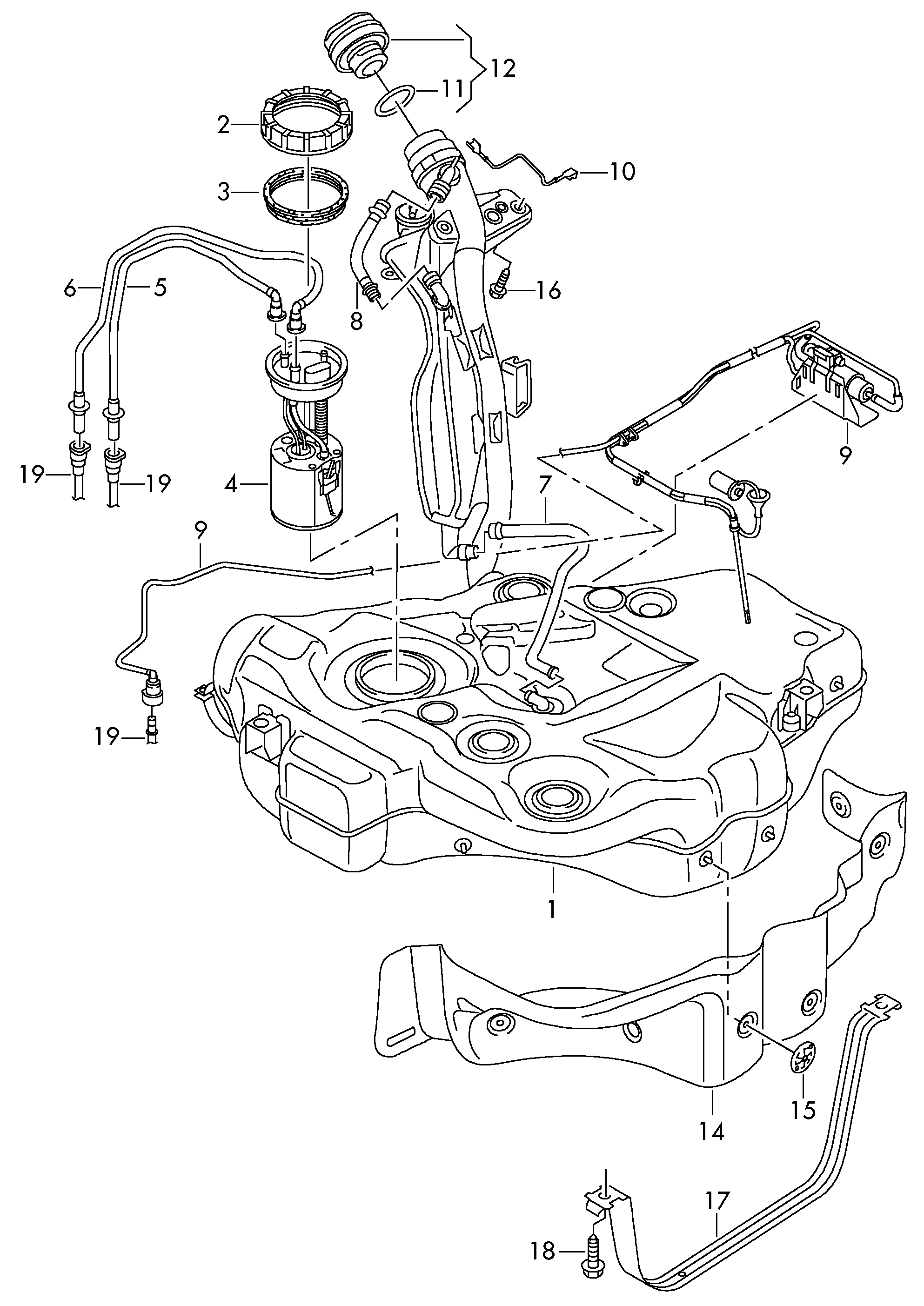

Scheme Fuel tank with, attachments diesel engine Volkswagen Golf Plus 2012-2014 EUR
