Fuel tank, activated charcoal container PR-K8G Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6RF201060D	Fuel tank	999	Next
2	6Q0201294C	Fuel line	999	Next
3	6Q0201293C	Fuel line	999	Next
4	6Q0201051J	Fuel filter with pressure regulator 4 BAR	999	Next
5	N90496802	Oval head panel screw 5,3X22	999	Next
6	6RF201997A	Breather line	999	Next
7	N10459902	Clip 8-9X13-14	999	Next
8	321201375A	Union nut	999	Next
9	6RU201801	Activated charcoal container	999	Next
9	6RU201801A	Activated charcoal container	999	Next
10	6RF201827	Bracket for activated carbon container	999	Next
11	N90693804	Hexagon head bolt (combi) M6X25	999	Next
12	6RF201655	Tensioning strap	999	Next
14	N0195307	Hex collared bolt M8X25	999	Next
15	1J0201142A	Earth line	999	Next
16	6R0201550C	Cap with retaining strap for fuel tank	999	Next
17	1K0201557A	O-ring	999	Next
18	6R0201307	Heat shield plate	999	Next
19	N90335005	Clamping washer 5X30	999	Next
20		Fuel line	999	Next
21		Fuel line	999	Next
22		Fuel delivery module	999	Next
23		O-ring	999	Next

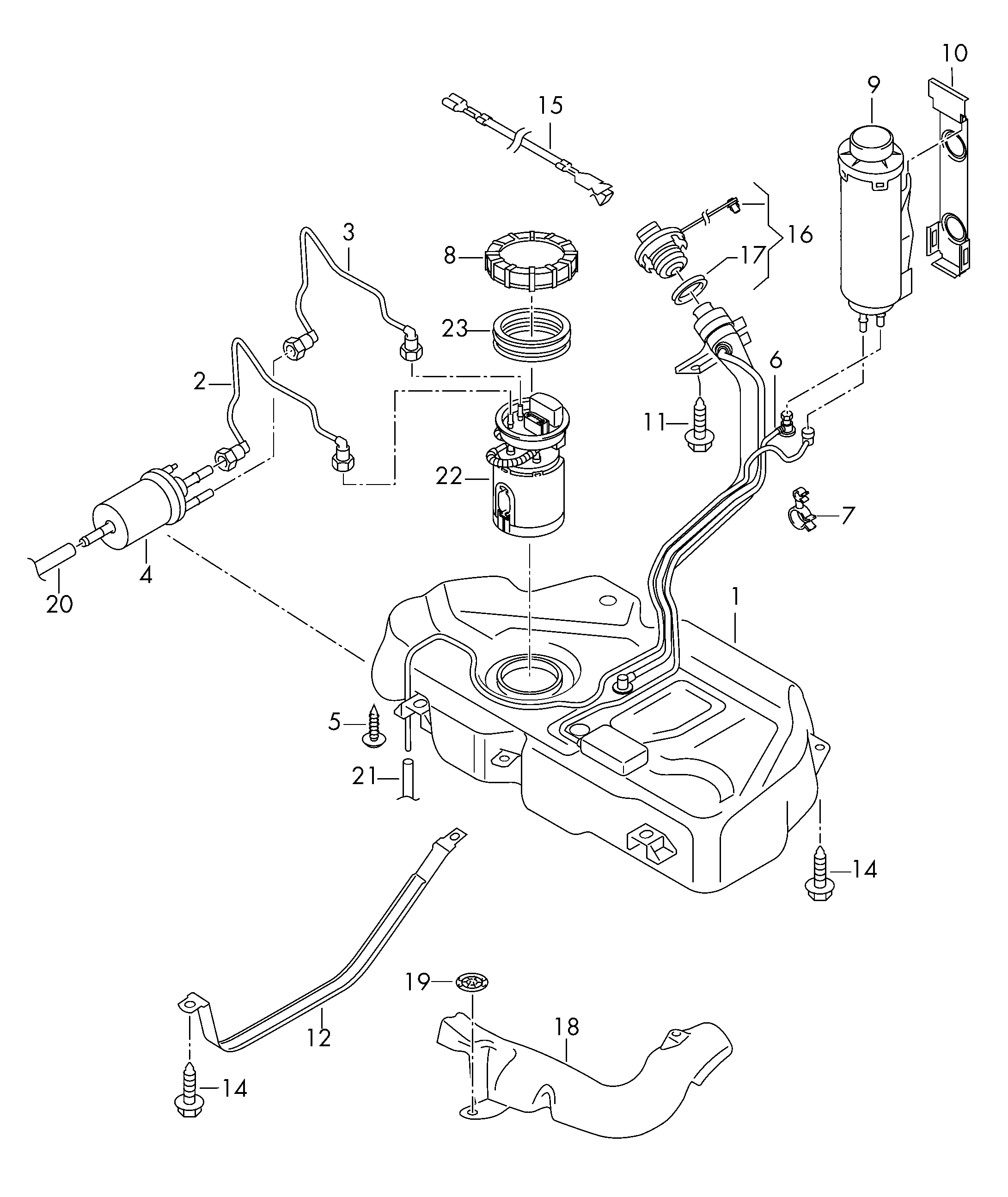

Scheme Fuel tank, activated charcoal container PR-K8G Volkswagen Polo 2013-2017 EUR
