Fuel tank, activated charcoal container petrol eng.+, PR-1E1 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0201060BB	Fuel tank with narrow fuel filler neck (22mm) for lead-free fuel	999	Next
1	5N0201060BG	Fuel tank with narrow fuel filler neck (22mm) for lead-free fuel	999	Next
1	5N0201293J	Fuel line	999	Next
1	5N0201293N	Fuel line	999	Next
1	5N0201160H	Breather line	999	Next
1	5N0201160K	Breather line	999	Next
1	5N0201993N	Breather line	999	Next
1	5N0201993S	Breather line	999	Next
1	1K0201375	Union nut	999	Next
1	1K0919133D	O-ring	999	Next
1		Fuel filter with flange	999	Next
1		Fuel delivery module	999	Next
1	5N0201931D	Breather line	999	Next
1	5N0201931E	Breather line	999	Next
1	5N0201550C	Cap with retaining strap for fuel tank	999	Next
1	1K0201557A	O-ring	999	Next
1	3C0201801E	Activated charcoal container	999	Next
1	N 01508210	Hexagon collar nut M6	999	Next
1	1J0201142A	Earth line	999	Next
1	5N0201607A	Extraction unit with metering pump for vehicles with auxiliary heater	999	Next
1	5N0201607G	Extraction unit with metering pump for vehicles with auxiliary heater	999	Next
1	5N0201292B	Retainer for control unit	999	Next
1	N 90947201	Hexagon nut	999	Next
1	5N0201307F	Heat shield plate	999	Next
1	N 91068501	Panel nut M5	999	Next
1	5N0201655	Tensioning strap	999	Next
1	5N0201655A	Tensioning strap	999	Next
1	5N0201656	Tensioning strap	999	Next
1	5N0201656A	Tensioning strap	999	Next
1	N 0195307	Hex collared bolt M8X25	999	Next
1	N 10240003	Hex collared bolt M8X32	999	Next
1	N 90693804	Hexagon head bolt (combi) M6X25	999	Next
1		Fuel line	999	Next
1	N 10203501	Clamp 11,3X5X0,5	999	Next
1	N 10198301	Clamp 13,3X7X0,6	999	Next

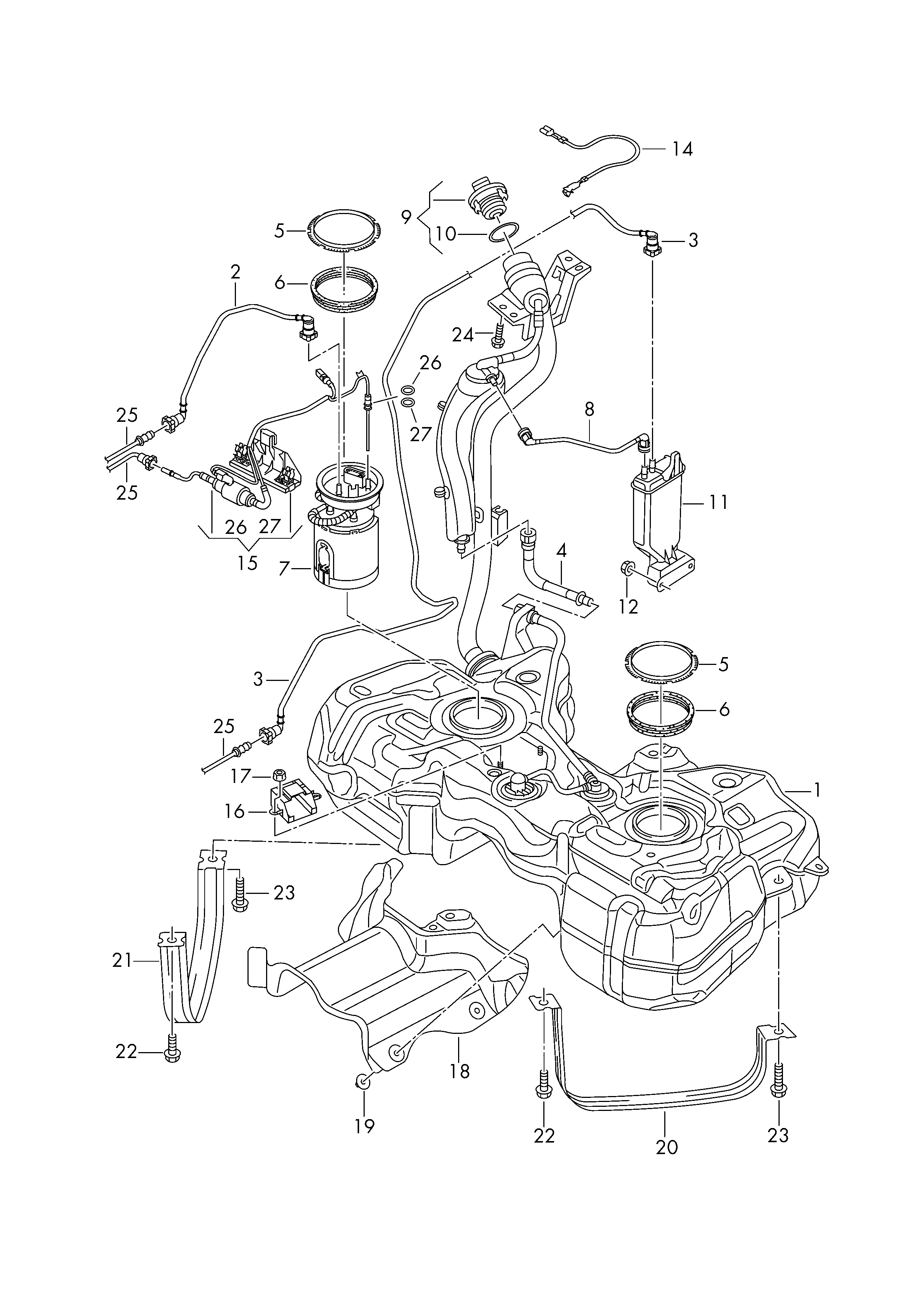

Scheme Fuel tank, activated charcoal container petrol eng.+, PR-1E1 Volkswagen Tiguan 2010-2017 EUR
