Fuel tank, activated charcoal container, diagnosis pump for fuel, system 4motion Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0201055AJ	Fuel tank with narrow fuel filler neck (22mm) for lead-free fuel	999	Next
1	3C0201055AE	Fuel tank	999	Next
1A	3C0201055AK	Fuel tank	999	Next
2	1K0201375	Union nut	999	Next
3		O-ring	999	Next
4		Fuel delivery module	999	Next
4		Suction jet pump	999	Next
6	3C0201293F	Fuel line	999	Next
6	3C0201293G	Fuel line, before 08.11.2010	999	Next
6	3AA201293A	Fuel line, 09.11.2010 and after	999	Next
7	3C0201294C	Fuel line, before 08.11.2010	999	Next
7	3AA201294A	Fuel line, 09.11.2010 and after	999	Next
8	3C0201307B	Heat shield plate	999	Next
8	N90335005	Clamping washer 5X30	999	Next
9	3C0201983A	Vacuum pipe	999	Next
10	3C0201995E	Breather line	999	Next
11	3C0201995F	Breather line	999	Next
12	1H9201142B	Earth line 165MM	999	Next
13	3AA201607F	Extraction unit with metering pump for vehicles with auxiliary heater, 09.11.2010 and after	999	Next
15	3C0201653C	Tensioning strap	999	Next
16	3C0201654B	Tensioning strap	999	Next
17	1T0971939B	Terminal	999	Next
18	3C0201550L	Cap with retaining strap for fuel tank	999	Next
18	3C0201550E	Cap with retaining strap for fuel tank	999	Next
18	3C0201550G	Cap with retaining strap for fuel tank	999	Next
18A	3C0201550M	Cap with retaining strap for fuel tank	999	Next
18A	3C0201550F	Cap with retaining strap for fuel tank	999	Next
19	1K0201557A	O-ring	999	Next
19	1K0201557	O-ring	999	Next
21	895201890	End piece	999	Next
21	3C0823723	Seal for water box chafe guard fuel filler neck shorten to: 90MM	999	Next
22	3C0201801E	Activated charcoal container	999	Next
22A	3C0201797D	Active charcoal filter with diagnosis pump for fuel delivery system	999	Next
23	N01508210	Hexagon collar nut M6	999	Next
25	N0195307	Hex collared bolt M8X25	999	Next
26	N90693804	Hexagon head bolt (combi) M6X25	999	Next
27	3C0201336	Vent hose	999	Next
28	3C0906201A	Diagnosis pump for fuel system with: 1C0 906 621	999	Next
29	N10201901	Clamp 22,6X7X0,60	999	Next

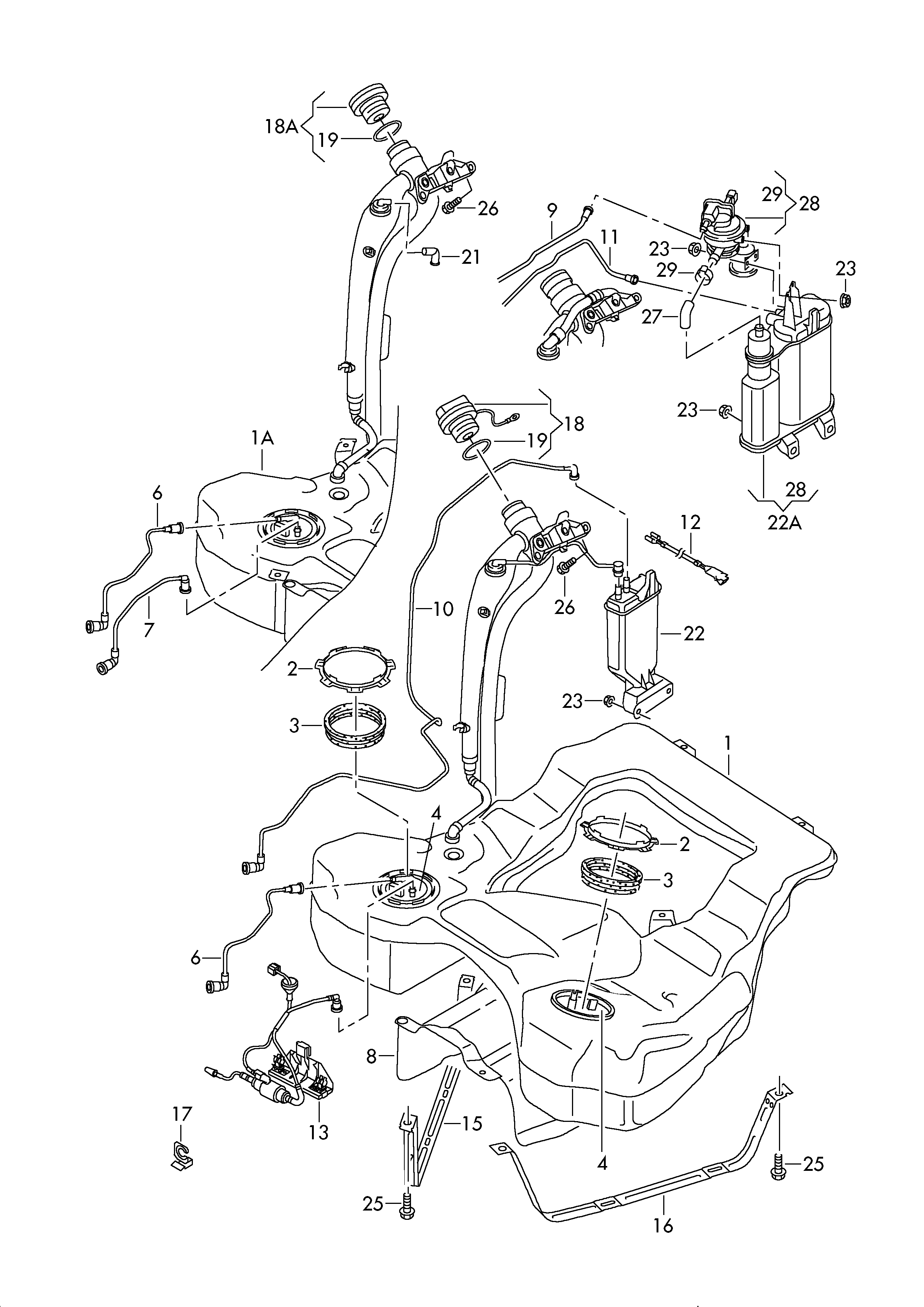

Scheme Fuel tank, activated charcoal container, diagnosis pump for fuel, system 4motion Volkswagen Passat CC Coupe 2009-2012 EUR
