Fuel rail, fuel pump 1.4ltr. petrol eng.+, PR-TU0 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1		Intake manifold - lower part	999	Next
1	03C906036M	Injection valve	999	Next
1	03C906036F	Injection valve	999	Next
1	03C198149	Gasket set for injector valve	999	Next
1	03C133723BM	Fuel hose	999	Next
1	N 90986501	Spring band clamp 14,5X12	999	Next
1	03C130241AP	Pressure pipe	999	Next
1	03C130241AQ	Pressure pipe	999	Next
1	N 10451405	Oval hexagon socket head bolt M6X16	999	Next
1	03C127026E	Fuel pump use if required:	999	Next
1	03C127026M	Fuel pump use if required:	999	Next
1	03C127026P	Fuel pump contains: 03C 127 065 C	999	Next
1	03C127026J	Fuel pump use if required: 06H 109 311 B	999	Next
1	03C127026K	Fuel pump use if required:	999	Next
1	03C127065C	Adapter	999	Next
1	WHT005184	O-ring 31X2	999	Next
1	06H109311B	Tappets	999	Next
1	06L109311	Tappets	999	Next
1	N 91048802	Screw with int. serrations M8X20	999	Next
1	4A0820199	Double cable tie	999	Next

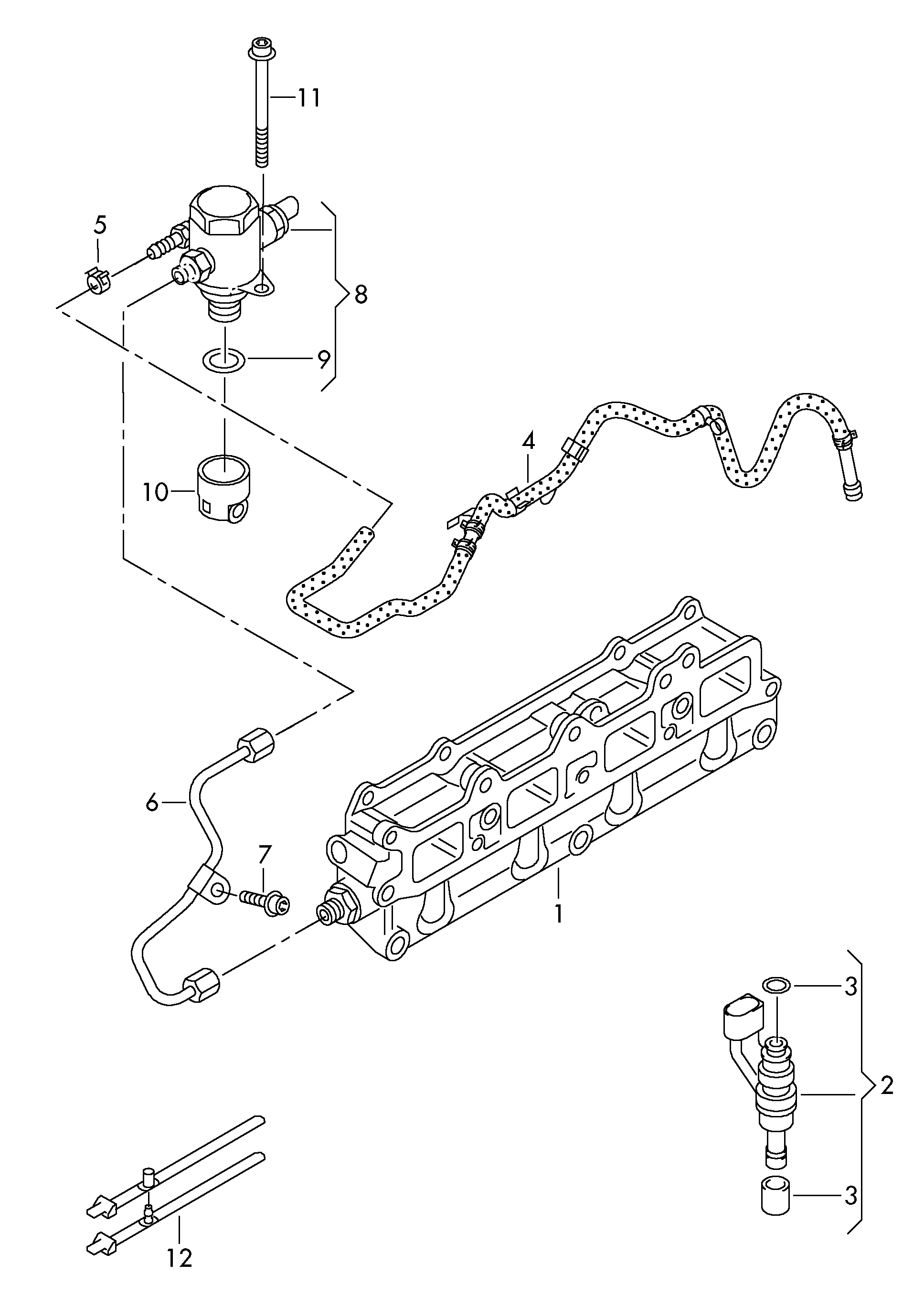

Scheme Fuel rail, fuel pump 1.4ltr. petrol eng.+, PR-TU0 Volkswagen Tiguan 2010-2017 EUR
