Fuel rail 1.4ltr. petrol eng.+, PR-TL1 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04E133320D	Fuel rail	999	Next
1	04E906036Q	Injection valve	999	Next
1	04E906036T	Injection valve	999	Next
1	04E998907A	Repair kit for valve unit	999	Next
1	04E127025B	Fuel pump	999	Next
1	WHT005184	O-ring 31X2	999	Next
1	N 10700201	Round hd. screw M6X22	999	Next
1	06L109311	Tappets	999	Next
1	04E130241AC	Pressure pipe	999	Next
1	06J906051F	Pressure sensor	999	Next
1	04E133723AT	Fuel line use if required: N 107 612 01	999	Next
1	N 10761201	Toothed lock washer 14X24X30	999	Next
1	N 91020301	Spring band clamp 14,5X12	999	Next
1	N 10546403	Hexagon socket head bolt M6X16	999	Next
1	4A0820199	Double cable tie	999	Next
1	04E133036A	Support element	999	Next
1	5Q0133687C	Retainer for fuel line	999	Next
1		Fuel line	999	Next

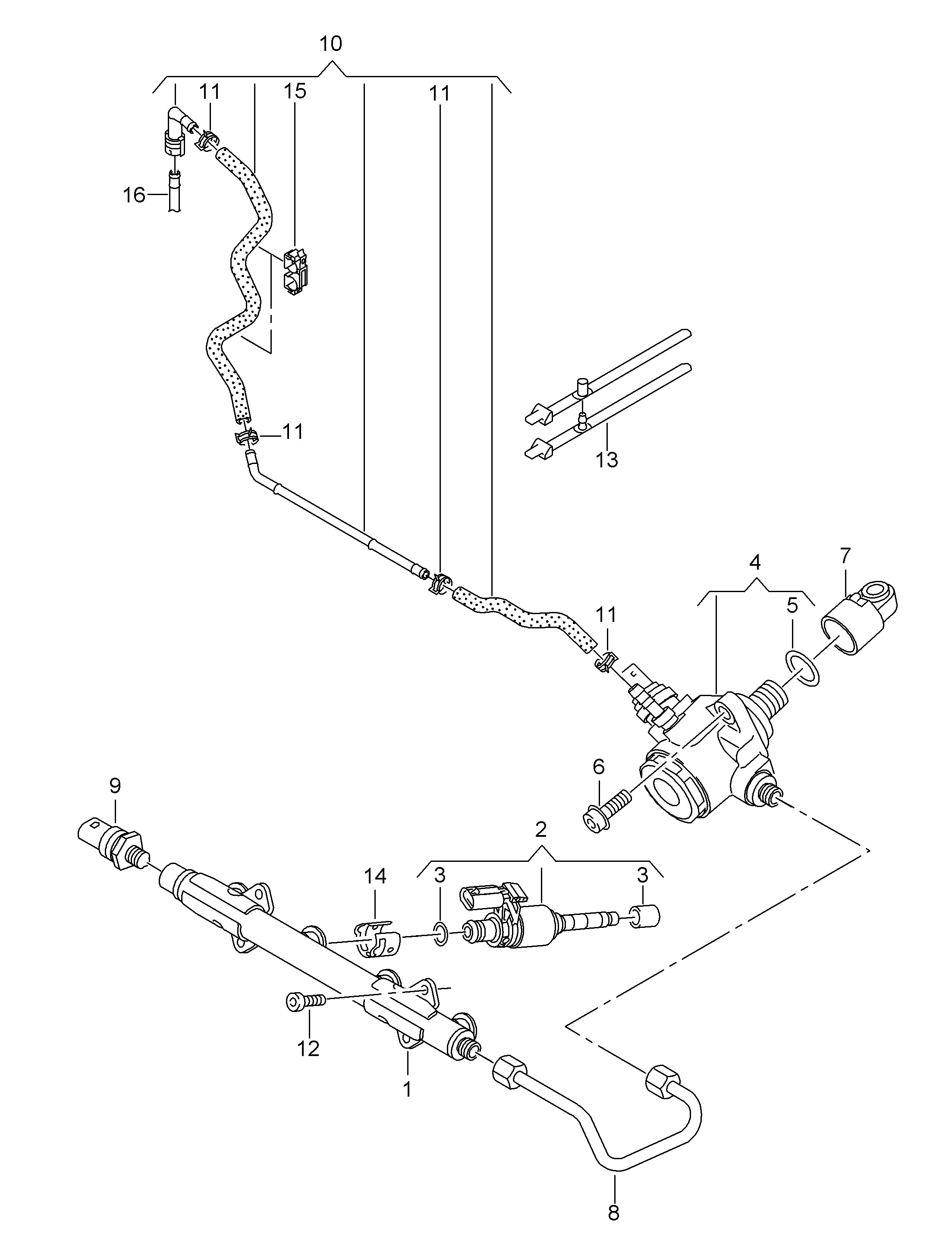

Scheme Fuel rail 1.4ltr. petrol eng.+, PR-TL1 Volkswagen Tiguan 2010-2017 EUR
