Fuel rail 1.2 ltr. petrol eng.+, CBZB, CBZA Volkswagen Golf Plus 2012-2014 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | 03F133320C | Fuel rail | Next |
| 2 | 03F906036B | Injection valve | Next |
| 3 | 03H198149 | Gasket set for injector valve | Next |
| 4 | 03C127026M | Fuel pump | Next |
| 4 | 03C127026P | Fuel pump contains: 03C 127 065 C | Next |
| 4 | 03C127026J | Fuel pump | Next |
| 4 | 03C127026E | Fuel pump | Next |
| - | 03C127065C | Adapter | Next |
| 5 | WHT005184 | O-ring 31X2 | Next |
| 5 | 06E127248 | O-ring 31,5X2 | Next |
| 6 | N91048802 | Screw with int. serrations M8X20 | Next |
| 7 | 06H109311B | Tappets | Next |
| 8 | 03F130241B | Pressure pipe | Next |
| 8 | 03F130241D | Pressure pipe | Next |
| 9 | 06J906051D | Pressure sensor | Next |
| 10 | 03F133723K | Fuel hose | Next |
| 10 | 03F133723E | Fuel hose | Next |
| 10 | 03F133723Q | Fuel hose | Next |
| 11 | N90986501 | Spring band clamp 14,5X12 | Next |
| 12 | N91026802 | Socket head bolt with inner multipoint head M8X20 | Next |
| 13 | 4A0820199 | Double cable tie 7X213/140MM | Next |

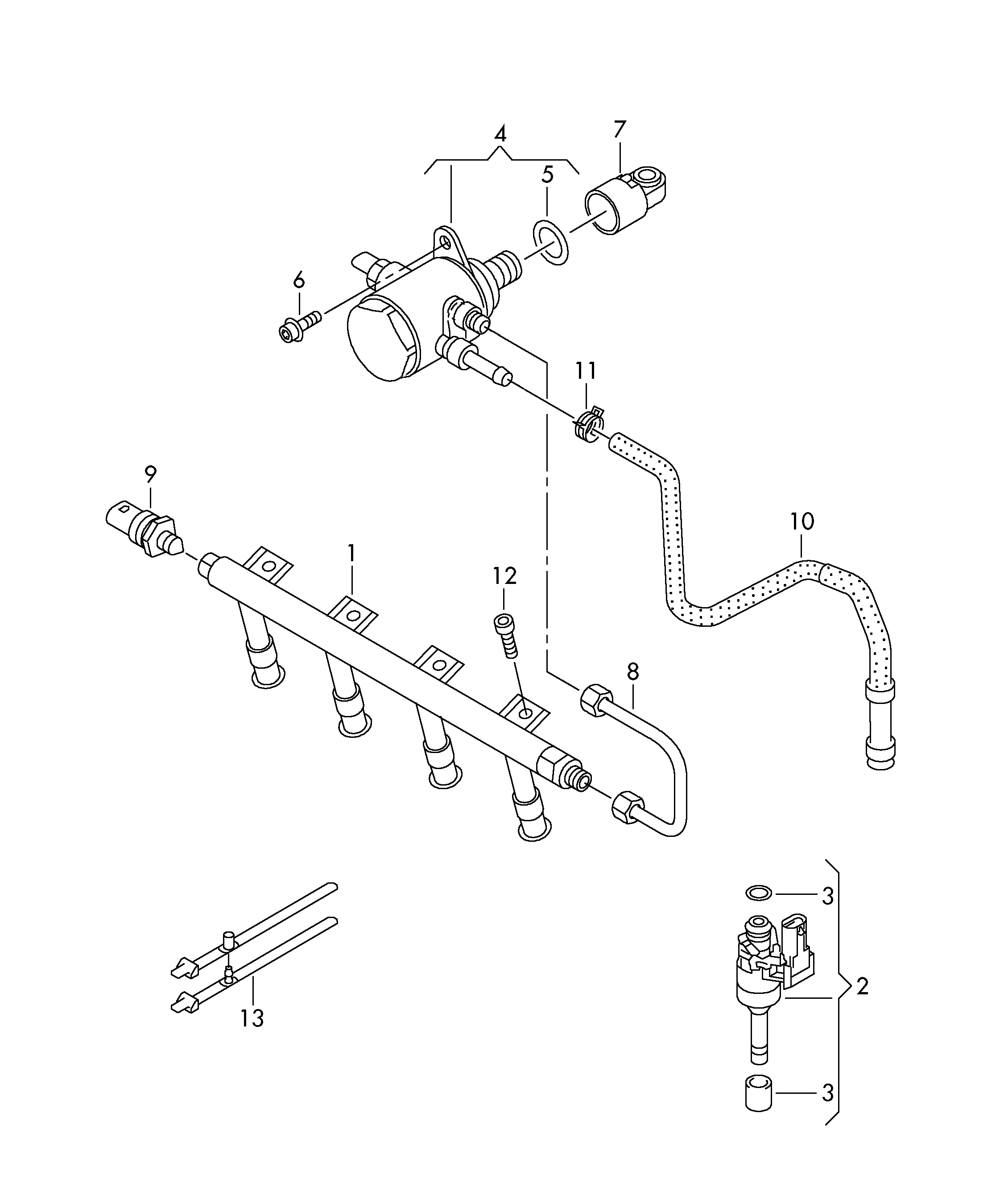

Scheme Fuel rail 1.2 ltr. petrol eng.+, CBZB, CBZA Volkswagen Golf Plus 2012-2014 EUR
