Fuel pump, fuel rail, injection valve 2.0 ltr. petrol eng.+, PR-TD6, TQ2 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H127025P	Fuel pump also use: 06E 127 065 D	999	Next
1	06H127025N	Fuel pump contains: also use: 06L127065, 06E127065G	999	Next
1	06H127025Q	Fuel pump contains: also use: 06L127065, 06E127065G	999	Next
1	06J127025G	Fuel pump also use: 06J 127 065 A	999	Next
1	06J127025J	Fuel pump also use: 03C 127 065 C	999	Next
1	06J127025F	Fuel pump also use: 06J 127 065 A	999	Next
1	06L127065	Connector union	999	Next
1	WHT005184	O-ring 31X2	999	Next
1	N 10700201	Round hd. screw M6X22	999	Next
1	N 10572401	Socket head bolt with inner multipoint head M8X16	999	Next
1	N 90986501	Spring band clamp 14,5X12	999	Next
1	06J133986AB	Fuel hose	999	Next
1	06J133986AC	Fuel hose	999	Next
1	4A0820199	Double cable tie 7X213/140MM	999	Next
1	06J133519A	Hose bracket	999	Next
1	N 10721401	Hexagon socket flat head bolt 6X16-Q	999	Next
1	N 91100601	Double stud with hexagon drive 6X16/M6X19	999	Next
1	N 02300213	Hexagon nut, self-locking M6	999	Next
1	06H109311B	Tappets	999	Next
1	06L109311	Tappets	999	Next
1	06E127065G	Adapter	999	Next
1	06E127065D	Adapter	999	Next
1	06E127065G	Adapter only for position: 16	999	Next
1	06J127501M	Fuel line	999	Next
1	06J127501T	Fuel line	999	Next
1	06J127501AA	Fuel line	999	Next
1	06J133317M	Fuel rail	999	Next
1	06J133317AB	Fuel rail	999	Next
1	06J906051D	Pressure sensor	999	Next
1	G 001780M3	Multi-purpose additive for otto engine fuels	999	Next
1	06H906036G	Injection valve	999	Next
1	06H906036P	Injection valve	999	Next
1	06J998907B	Repair kit for valve unit	999	Next
1	N 10721401	Hexagon socket flat head bolt 6X16-Q	999	Next
1		Hexagon socket flat head bolt	999	Next
1	N 0206097	Clamp 8X15	999	Next
1	N 90925202	Hexagon socket head collared bolt, thread forming 6X16	999	Next
1	06J198212A	1 set securing bolts for intake manif. and attachments	999	Next
1		Fuel line (pipe) with breather line (pipe)	999	Next

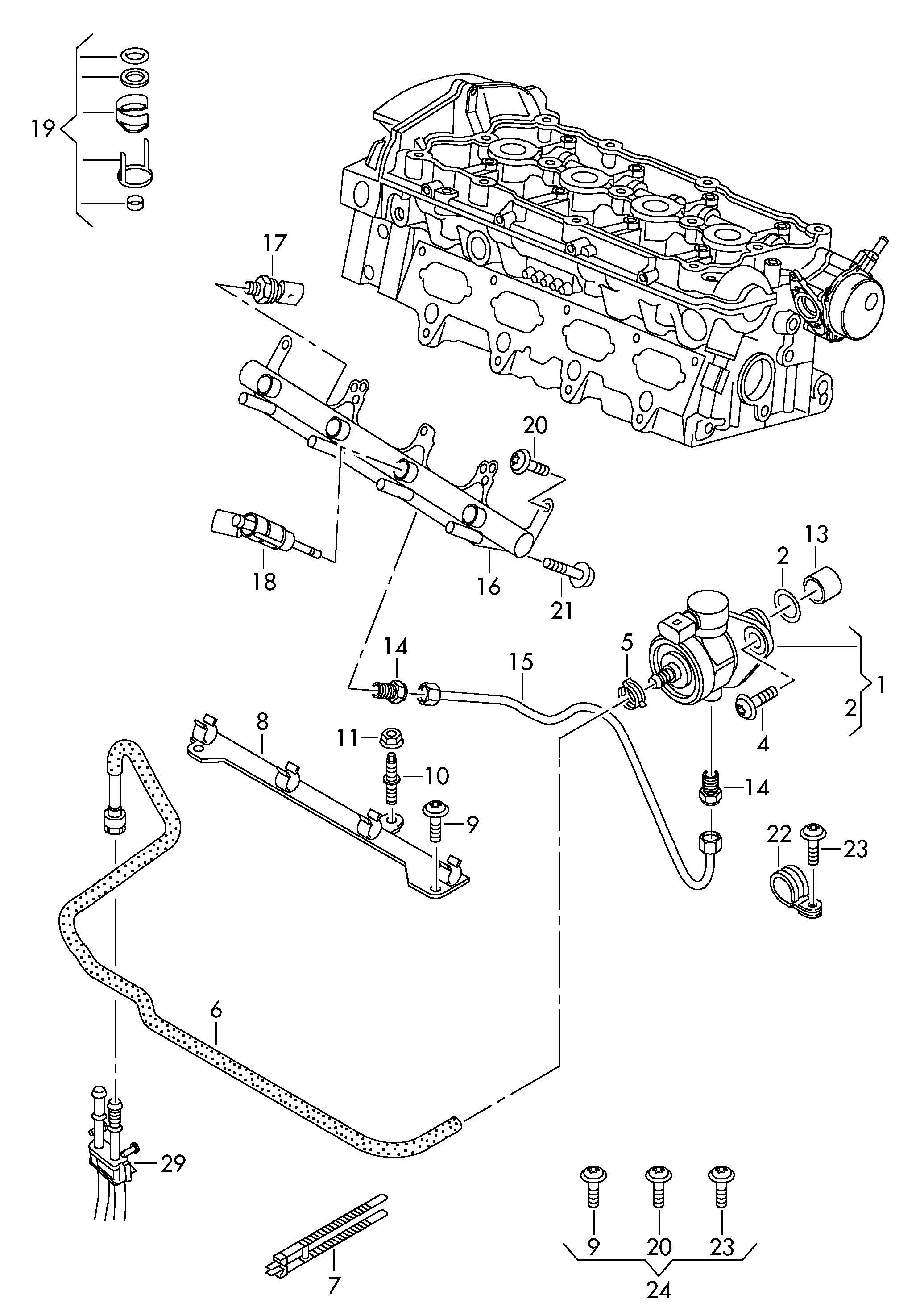

Scheme Fuel pump, fuel rail, injection valve 2.0 ltr. petrol eng.+, PR-TD6, TQ2 Volkswagen Tiguan 2010-2017 EUR
