Fuel pump, fuel rail, injection valve, 2.0 ltr. 4-cylinder+, CAWB, CCTA, CBFA, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H127025N	Fuel pump contains:	999	Next
1	06H127025M	Fuel pump	999	Next
1	06J127025E	Fuel pump, before 07.03.2011	999	Next
1	06J127025F	Fuel pump, D 08.03.2011 and after	999	Next
2	06E127248	O-ring	999	Next
-	06L127065	Connector union	999	Next
2	WHT005184	O-ring 31X2	999	Next
4	N10700201	Round hd. screw M6X22	999	Next
4	N10572401	Socket head bolt with inner multipoint head M8X16	999	Next
5	N90986501	Spring band clamp 14,5X12	999	Next
6	06J133986R	Fuel hose	999	Next
8	06J133519A	Hose bracket	999	Next
9	N10721401	Hexagon socket flat head bolt 6X16-Q	999	Next
10	N91100601	Double stud with hexagon drive 6X16/M6X19	999	Next
11	N02300213	Hexagon nut, self-locking M6	999	Next
13	06H109311B	Tappets	999	Next
14	06E127065D	Adapter	999	Next
14	06E127065D	Adapter only for position: 16	999	Next
15	06J127501M	Fuel line	999	Next
16	06J133317M	Fuel rail	999	Next
17	06J906051D	Pressure sensor	999	Next
17	06J906051B	Pressure sensor	999	Next
18	06H906036G	Injection valve	999	Next
19	06J998907B	Repair kit for valve unit	999	Next
19	06J998907A	Repair kit for valve unit	999	Next
20	N10721401	Hexagon socket flat head bolt 6X16-Q	999	Next
21		Hexagon socket flat head bolt	999	Next
22	N0206097	Clamp 8X15	999	Next
23	N90925202	Hexagon socket head collared bolt, thread forming 6X16	999	Next
29		Fuel line (pipe) with breather line (pipe)	999	Next
30	06J198212A	1 set securing bolts for intake manif. and attachments	999	Next
31	4A0820199	Double cable tie 7X213/140MM	999	Next

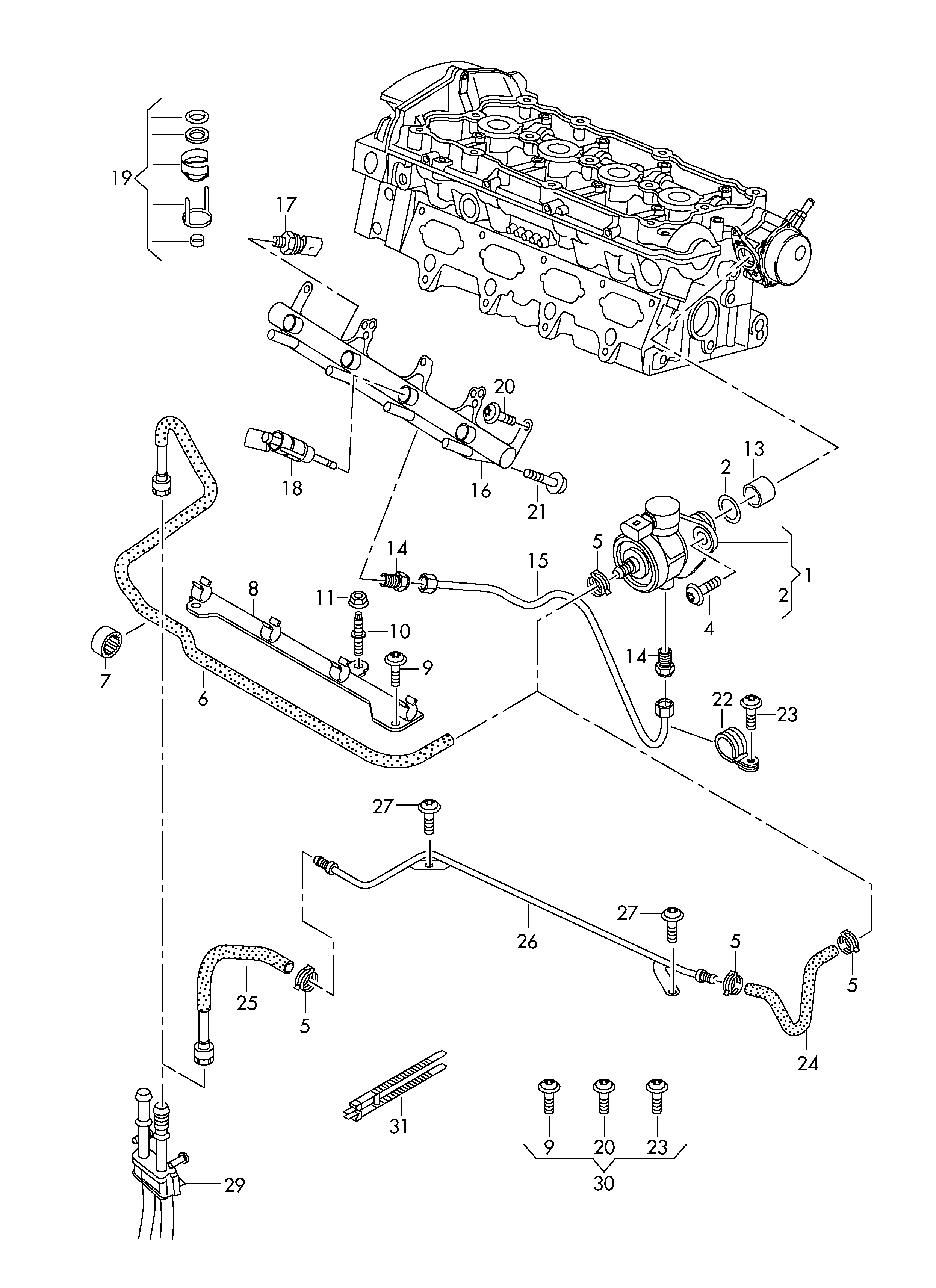

Scheme Fuel pump, fuel rail, injection valve, 2.0 ltr. 4-cylinder+, CAWB, CCTA, CBFA, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR
