Fuel line, 2.0 ltr. diesel eng.+, CBAA, CBAB, CBBB, CBAC, before 08.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0201293G	Fuel line	999	Next
2	3C0201294C	Fuel line	999	Next
3	3C0200059AF	1 set of fuel lines	999	Next
3	3C0200059AG	1 set of fuel lines for vehicles with auxiliary heater	999	Next
4	1H0201449	Clip	999	Next
5	3C0201958A	Distance piece	999	Next
6	3C0201961A	Heat insulation, before 08.11.2010	999	Next
6	3C0201961B	Heat insulation, 09.11.2010 and after	999	Next
8	3C0201418B	Fuel line for vehicles with auxiliary heater	999	Next
9	3C0201418A	Fuel line for vehicles with auxiliary heater	999	Next
10	3C0201607F	Extraction unit with metering pump for vehicles with auxiliary heater	999	Next
10	3C0201607H	Extraction unit with metering pump for vehicles with auxiliary heater	999	Next
10	3C0201607G	Extraction unit with metering pump for vehicles with auxiliary heater	999	Next
10	3C0201607J	Extraction unit with metering pump for vehicles with auxiliary heater	999	Next
11		Fuel filter	999	Next
12	N90686701	Spring band clamp 14X12	999	Next
13	3C0130295F	Fuel hose	999	Next
13	3C0130295E	Fuel hose	999	Next
14	1K0130307BK	Fuel pipe	999	Next
15	5N0130307G	Fuel pipe	999	Next
15	5N0130307H	Fuel pipe	999	Next
15	5N0130307J	Fuel hose with temperature sender	999	Next
16	N90986501	Spring band clamp 14,5X12	999	Next
17	4B0422379	Spring band clamp 16X12	999	Next
18	1K0133687E	Retainer for fuel line	999	Next
19	5N0133687A	Retaining clip	999	Next
20	03L919824C	Temperature sensor	999	Next
24	1K0130307BH	Fuel hose	999	Next
24	1K0130307AM	Fuel hose	999	Next
25	03L201360G	Fuel line	999	Next
25	03L201360F	Fuel line	999	Next
26	5N0906129B	Fuel pump with: retaining plate for boot sound absorber for pump	999	Next
-	N91154701	Socket head bolt with inner multipoint head M8X20	999	Next
27		Fuel tank	999	Next

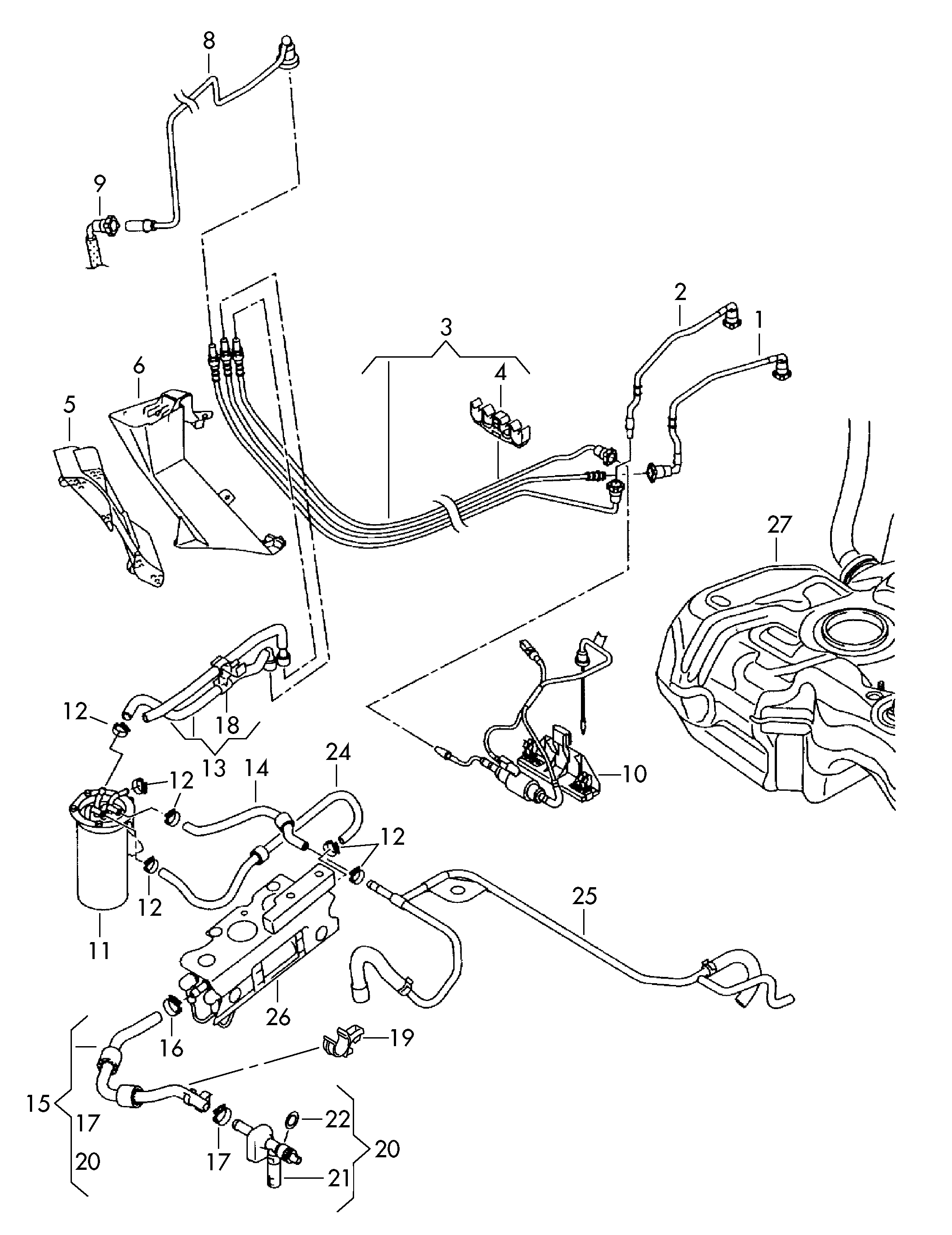

Scheme Fuel line, 2.0 ltr. diesel eng.+, CBAA, CBAB, CBBB, CBAC, before 08.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR
