Fuel filter 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0127400L	Fuel filter with flange	999	Next
2	1K0127434B	Filter element with gasket	999	Next
3	1K0127113C	O-ring	999	Next
4	N10335205	Socket head bolt with hexagon socket head (combination) M6X12	999	Next
5	N10158605	Bolt,hex.hd.with shoul.(combi) M6X20	999	Next
6	N01508210	Hexagon collar nut M6	999	Next
7	1K0130295AH	Fuel pipe	999	Next
8	1K0133687E	Retainer for fuel line	999	Next
9		Fuel line	999	Next
10	N90686701	Spring band clamp 14X12	999	Next
11	1K0130307BB	Fuel hose	999	Next
12		Fuel line	999	Next
13	1K0130307BA	Fuel pipe	999	Next
14	6R0133687A	Retainer for fuel line	999	Next
15	WHT002287C	O-ring 5,6X2N	999	Next
16	059919523A	Temperature sensor	999	Next
17	4B0422379	Spring band clamp 16X12	999	Next
18		High pressure pump	999	Next

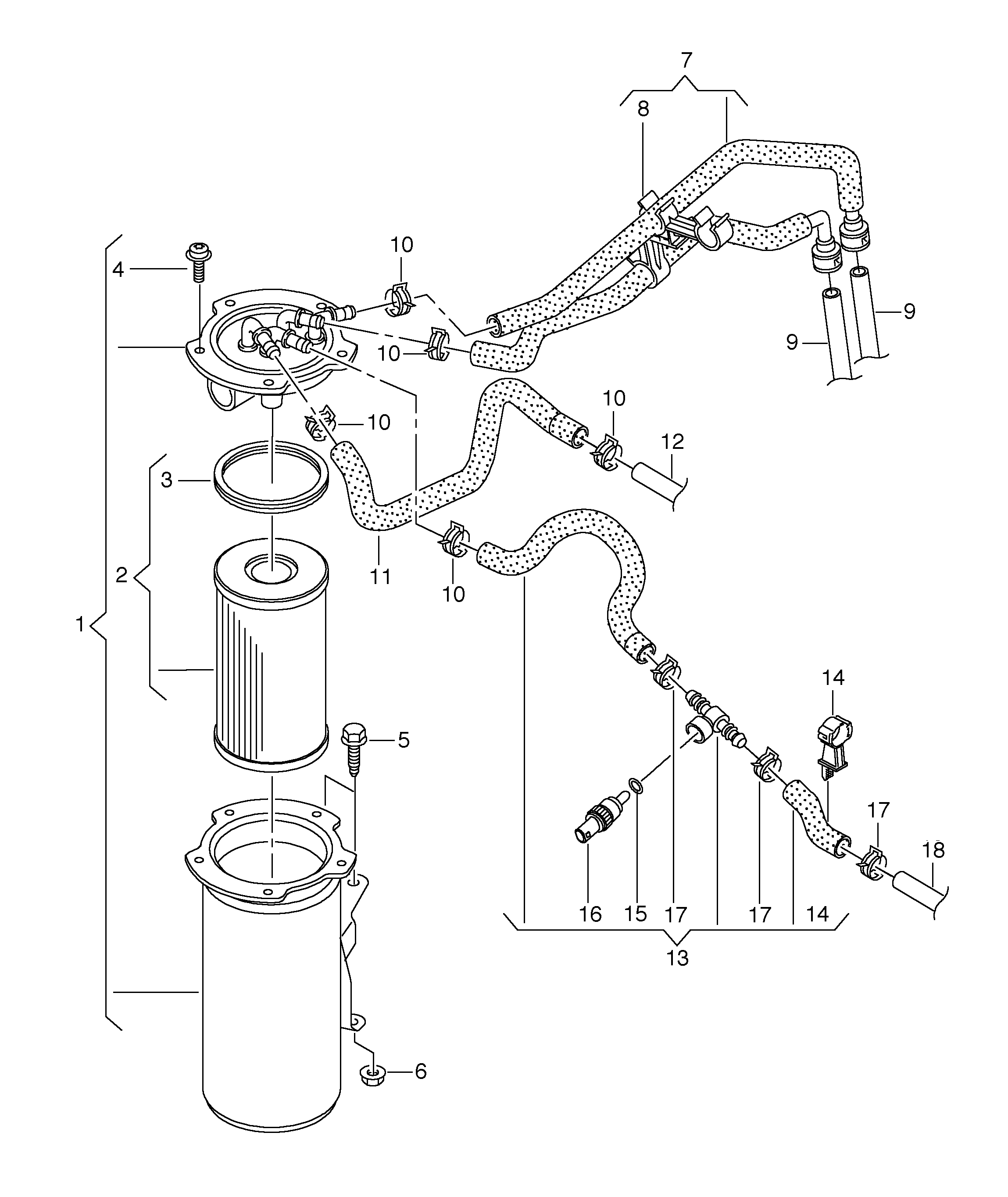

Scheme Fuel filter 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR
