Fuel delivery unit and sender for fuel gauge Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0919109C	Fuel filter with flange contains: fuel pipe	999	Next
1	5N0919109E	Fuel filter with flange contains: fuel pipe	999	Next
1	5N0919109F	Fuel filter with flange contains: fuel pipe	999	Next
1	5N0919109D	Fuel filter with flange contains: fuel pipe	999	Next
1	5N0919109F	Fuel filter with flange contains: fuel pipe	999	Next
1	5N0919087H	Fuel delivery module	999	Next
1	5N0919087J	Fuel delivery module	999	Next
1	5N0919673N	Sender for fuel gauge suction jet pump	999	Next
1	5N0919673Q	Sender for fuel gauge suction jet pump	999	Next
1	5N0919673R	Sender for fuel gauge suction jet pump contains: fuel pipe	999	Next
1	5N0919673AB	Sender for fuel gauge suction jet pump contains: fuel pipe	999	Next
1	5N0919088L	Fuel delivery module	999	Next
1	5N0919088N	Fuel delivery module	999	Next
1	5N0919088M	Fuel delivery module	999	Next
1	5N0919673F	Sender for fuel gauge	999	Next
1	5N0919673S	Sender for fuel gauge	999	Next
1	5N0919673K	Sender for fuel gauge	999	Next
1	5N0919673L	Sender for fuel gauge	999	Next
1	5N0906093B	Control unit for fuel pump	999	Next
1	5N0906093C	Control unit for fuel pump	999	Next
1	7N0906093	Control unit for fuel pump	999	Next
1	5Q0906121G	Control unit for fuel pump	999	Next
1	5Q0906121F	Control unit for fuel pump	999	Next
1	5Q0906121M	Control unit for fuel pump	999	Next

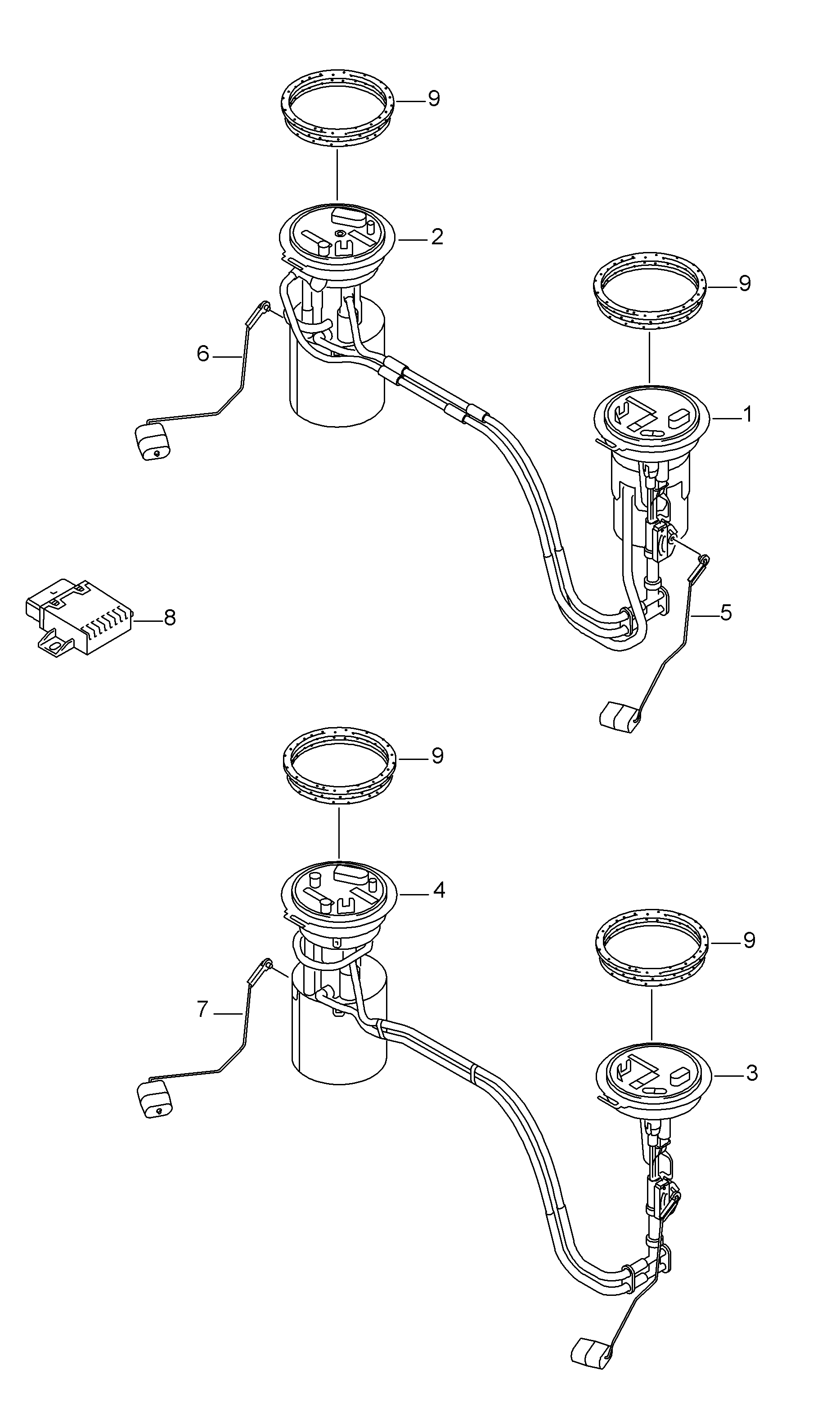

Scheme Fuel delivery unit and sender for fuel gauge Volkswagen Tiguan 2010-2017 EUR
