Fluid reservoir and individual parts, hose line for washer water, window cleaning solution Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0955453A	Wash water reservoir with water gauge	999	Next
1	5N0955453G	Wash water reservoir with water gauge	999	Next
1	5N0955453G	Wash water reservoir with water gauge	999	Next
1	5N0955453B	Wash water reservoir for vehicles with headlight washer system with water gauge	999	Next
1	5N0955453H	Wash water reservoir for vehicles with headlight washer system with water gauge	999	Next
1	1K0955455	End cap	999	Next
1	1C0955485	Strainer	999	Next
1	4A0955485	Strainer	999	Next
1	5N0955195	Holder for filler pipe	999	Next
1	5N0955195A	Holder for filler pipe	999	Next
1	N 10160205	Hex collared bolt M6X25	999	Next
1	N 90887703	Hexagon flange nut, self-locking use item: M6 1	999	Next
1	N 90887703	Hexagon flange nut, self-locking to be used for item: M6 2	999	Next
1	1K6955651	Windscreen washer system pump	999	Next
1	443955465	Seal	999	Next
1	6R0955681	Pump for headlight- washer system	999	Next
1	431955465A	Seal 20,2X9,5	999	Next
1	444955647	Bungs	999	Next
1	5M0955985C	Water jet	999	Next
1	5M0955985C 9B9	Water jet satin black	999	Next
1	5M0955986C	Spray nozzle, heated	999	Next
1	5M0955986C 9B9	Spray nozzle, heated satin black	999	Next
1	8E0973202	Flat contact housing with contact locking mechanism only for: 5M0 955 986 C	999	Next
1	7H0971848C	Clip hole/sheet metal thickness: 6,5/0,7-2,5MM	999	Next
1	1J0955751D	Corrugated pipe modify in workshop 6X0,75X10000MM	999	Next
1	3B0955665C	Elbow fitting 6X1	999	Next
1	1J0955873D	Y-piece	999	Next
1	1J0955875P	Coupling element	999	Next
1	1J0955875R	Coupling element	999	Next
1	6Q0955998	Grommet	999	Next
1	2D0955962	Hose modify in workshop 3,8X2,1X1300MM	999	Next
1	000979992A	1 set: shrink fit sleeves can be sealed watertight 12MM/4MM	999	Next
1	N 0209022	Cable ties 3,6X246	999	Next
1	G 052164M2	Concentrated glass cleaner with anti-freeze for use all-year-round in windscreen washer system 'order qty. 10'	999	Next
1	G JZW050M1	Windscreen cleaner with for use all-year-round in windscreen washer system economy	999	Next
1	G 060164M2	Windscreen cleaner with polish for use all-year-round in windscreen washer system 'order qty. 10'	999	Next
1	G 052184A2	Concentrated glass cleaner for use in summer in wind- screen washer system	999	Next

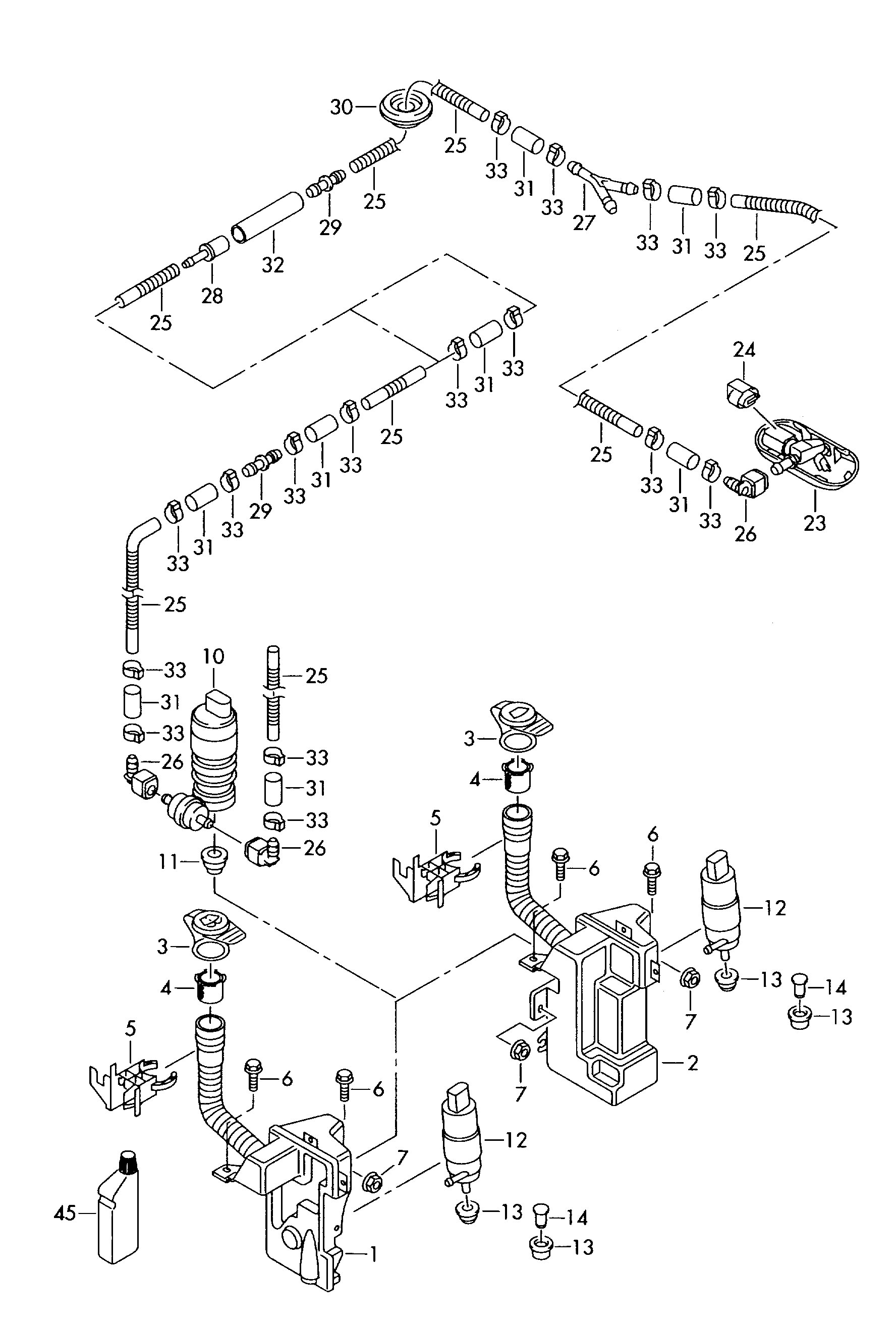

Scheme Fluid reservoir and individual parts, hose line for washer water, window cleaning solution Volkswagen Tiguan 2010-2017 EUR
