Floor covering, a-pillar trim, foot rest, floor mat, trim for rear, cross panel Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C1898368C	Flooring	999	Next
1	3C1898368C8ER	Flooring black	999	Next
1	3AC863368A	Flooring	999	Next
1	3AC863368A8ER	Flooring black	999	Next
2	3C1863484E	A-pillar trim	999	Next
2	3C1863484E9B9	A-pillar trim satin black	999	Next
2	3C2863484G	A-pillar trim	999	Next
2	3C2863484G9B9	A-pillar trim satin black	999	Next
4	3C0863751	Cover cable guide side member	999	Next
4	3C0863752	Cover cable guide side member	999	Next
5	3C1863483E	A-pillar trim	999	Next
	3C1863483E9B9	Satin black	999	Next
5	3C2863483G	A-pillar trim	999	Next
5	3C2863483G9B9	A-pillar trim satin black	999	Next
6	1Y0867276	Clip	999	Next
7	1H0863253	Bracket for warning flare	999	Next
8	6Q0853147	Clip	999	Next
9	3C0864247	Clip	999	Next
9	1C0867207	Mounting clip	999	Next
10	3C1864777	Cover for footrest	999	Next
10	3C18647779B9	Cover for footrest satin black	999	Next
11	N90986801	Hexagon socket head panel bolt	999	Next
12	701867299	Clip	999	Next
12	70186729901C	Clip satin black	999	Next
13	N90698801	Speed nut 4,2X16X12	999	Next
15	3C2864767A	Bracket for footrest	999	Next
16	N90757901	Hexagon collar nut	999	Next
17	3C1863081B	Cover under dashboard	999	Next
17	3C1863081B9B9	Cover under dashboard satin black	999	Next
17	3C2863081C	Cover under dashboard	999	Next
17	3C2863081C9B9	Cover under dashboard satin black	999	Next
21	N90861801	Press stud 24X9,5X8	999	Next
21	N9086180101C	Press stud 24X9,5X8 satin black	999	Next
20	3C2864777	Cover for footrest	999	Next
20	3C28647779B9	Cover for footrest satin black	999	Next
25	3C1863129A	Cover for steering column	999	Next
25	3C1863129A9B9	Cover for steering column satin black	999	Next
28	3C1863011D	1 set foot mats	999	Next
28	3C1863011DAZP	1 set foot mats black/nougat -IW	999	Next
28	3C2863011C	1 set foot mats	999	Next
28	3C2863011CAZP	1 set foot mats black/nougat -IW	999	Next
30	3C1864435D	Floor mat	999	Next
30	3C1864435DWGK	Floor mat black	999	Next
30	3C1864435D	Floor mat	999	Next
30	3C1864435DEUN	Floor mat black -HL, HM, KX, NC, ND, TL, VX, XF, ZU, ZV	999	Next
30	3C2864435C	Floor mat	999	Next
30	3C2864435CWGK	Floor mat black -HL, HM, KX, NC, ND, TL, VX, XF, ZU, ZV	999	Next
30	3C2864435CEUN	Floor mat black -HL, HM, KX, NC, ND, TL, VX, XF, ZU, ZV	999	Next
31	3C1864436D	Floor mat	999	Next
31	3C1864436DWGK	Floor mat black	999	Next
31	3C1864436D	Floor mat	999	Next
31	3C1864436DEUN	Floor mat black -HL, HM, KX, NC, ND, TL, VX, XF, ZU, ZV	999	Next
31	3C2864436C	Floor mat	999	Next
31	3C2864436CWGK	Floor mat black	999	Next
31	3C2864436C	Floor mat	999	Next
31	3C2864436CEUN	Floor mat black -HL, HM, KX, NC, ND, TL, VX, XF, ZU, ZV	999	Next
32	3C0864451	Floor mat	999	Next
32	3C0864451UCV	Floor mat black -HL, HM, KX, NC, ND, TL, VX, XF, ZU, ZV	999	Next
33	3C0864452	Floor mat	999	Next
33	3C0864452UCV	Floor mat black -HL, HM, KX, NC, ND, TL, VX, XF, ZU, ZV	999	Next
40	3C0864521	Cover cap	999	Next
40	3C08645219B9	Cover cap satin black	999	Next
40	3C0864523	Bracket	999	Next
40	3C08645239B9	Bracket satin black	999	Next
41	8E0864227	Bracket	999	Next
42	8E0864229	Cover cap	999	Next
42	8E08642299B9	Cover cap satin black	999	Next
43		Reversible boot mat	999	Next
45	N90819501	Panel screw 4,8X13	999	Next
50	3C8863413	Trim for rear shelf panel	999	Next
50	3C88634133N6	Trim for rear shelf panel black	999	Next
51	3B9867289	Retaining clip included in position: 50	999	Next
52	3C8863407	Trim for rear cross panel for vehicles with roller sunblind to rear window	999	Next
52	3C88634073N6	Trim for rear cross panel for vehicles with roller sunblind to rear window black	999	Next
52	3C8863407A	Trim for rear cross panel for vehicles with roller sunblind to rear window	999	Next
52	3C8863407A3N6	Trim for rear cross panel for vehicles with roller sunblind to rear window black	999	Next
53	3C8857849	Trim plate for seat belt guide	999	Next
53	3C88578499B9	Trim plate for seat belt guide satin black	999	Next
53	3C8857850	Trim plate for seat belt guide	999	Next
53		Trim plate for seat belt guide not for this model	999	Next
54		Vent grille not for this model	999	Next
56	1K5887267A	Bracket for seat mounting	999	Next
56	1K5887267A9B9	Bracket for seat mounting satin black	999	Next
56	1K5887267	Holder for child seat attachment	999	Next
56	1K58872679B9	Holder for child seat attachment satin black	999	Next
-	N90660701	Panel nut M8	999	Next
58	N10648001	Oval head countersunk bolt M8X25	999	Next
59		Sound absorber (self-adhesive)	999	Next
60, 62		Guide rail roller sunblind	999	Next
63	7L6867190	Clip	999	Next
65		Shouldered bolt not for this model	999	Next
67		Bush not for this model	999	Next
68	7L6867190	Clip	999	Next

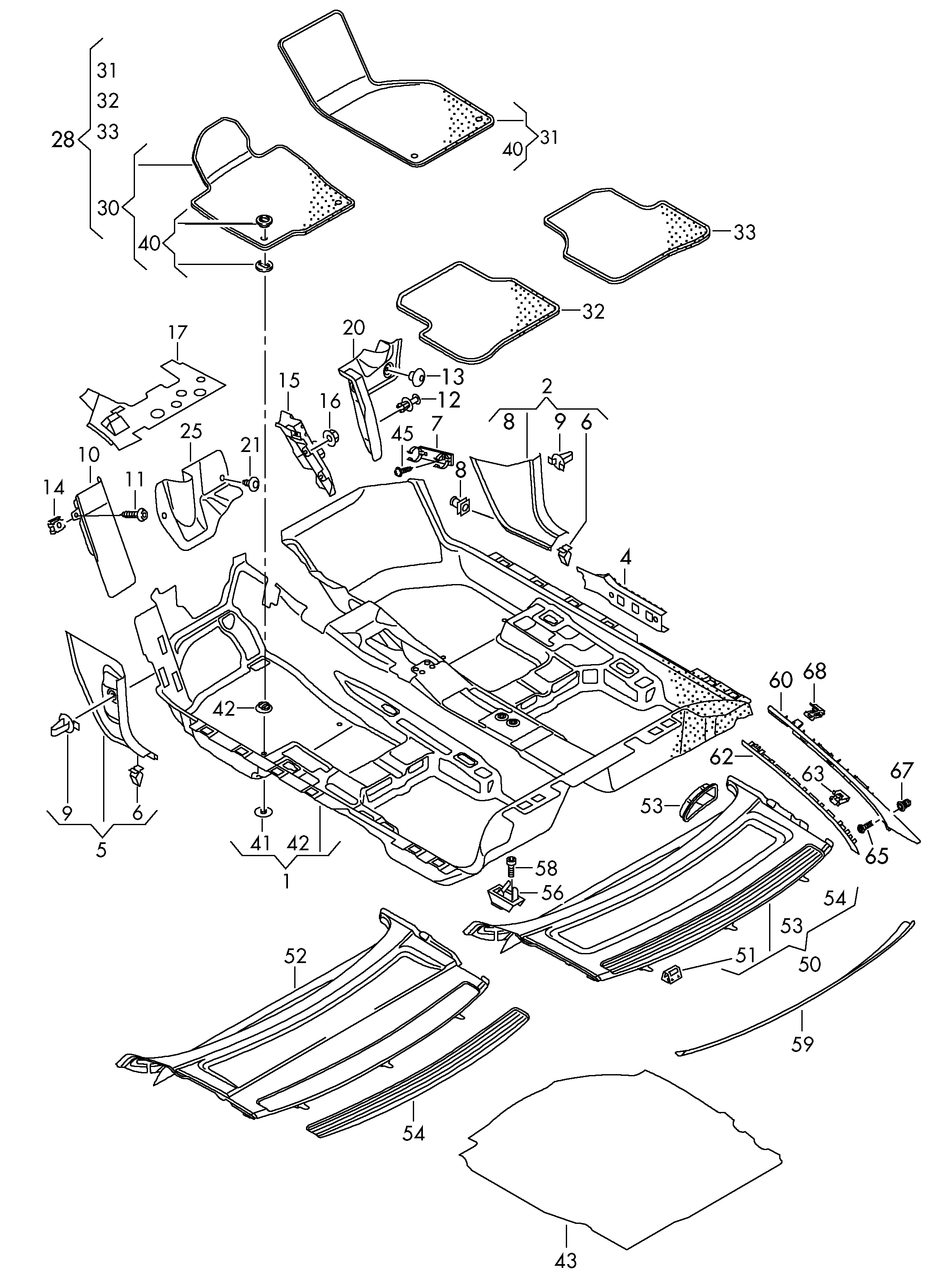

Scheme Floor covering, a-pillar trim, foot rest, floor mat, trim for rear, cross panel Volkswagen Passat CC Coupe 2009-2012 EUR
